ATV630D18N4

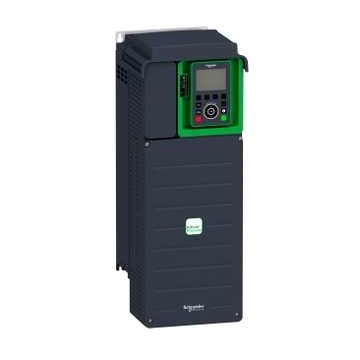

Schneider Electric ATV630D18N4 Altivar Process ATV630 Variable Speed Drive 18.5kW/25HP 380-480V IP21/UL Type 1. This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 18.5kW / 25hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 15kW / 20hp for applications requiring significant overload (up to 150%). It weighs 14.2kg and its dimensions are, 211mm wide, 546mm high, 232mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall.
Details
- Brand: Schneider Electric
- Part number: ATV630D18N4
- Series: Altivar Process ATV600
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV630D55N4Z — Altivar Process ATV600 Variable Speed Drive ATV630 - 55kW/75HP - 380-480V - IP21
- ATV630U75N4 variable speed drive ATV630 - 7.5kW/10HP - 380...480V - IP21/UL type 1
- ATV630U55N4 variable speed drive ATV630 - 5.5kW/7.5HP - 380...480V - IP21/UL type 1
- Schneider Electric ATV630C11N4 — ATV630 Variable Speed Drive 110kW/150HP 380...480V IP00
- ATV650U15N4 Variable Speed Drive Altivar Process ATV600
- Altivar Process ATV600 Variable Speed Drive ATV650U07N4 0.75kW/1HP 380-480V
- Schneider Electric ATV630C31N4F — Altivar Process ATV600 ATV630 Variable Speed Drive 315 kW 380-440 V IP21
- ATV650U22N4 variable speed drive, ATV650, 2.2 kW, 400...480V, IP55
- Schneider Electric ATV650U30N4 — Altivar Process ATV650 Variable Speed Drive 3kW 380-480V IP55
- Schneider Electric ATV650U40N4 — ATV650 variable speed drive - 4kW/5HP - 380...480V - IP55
- ATV650U75N4 Variable Speed Drive 7.5kW/10HP 380-480V IP55
- ATV650U55N4 variable speed drive ATV650 - 5.5kW/7.5HP - 380...480V - IP55
Request a quote for ATV630D18N4
Specifications
- EMC filter
- Integrated EN/IEC 61800-3 category C2 50 m, Integrated EN/IEC 61800-3 category C3 150 m
- Line current
- 33.4 A (380 V normal duty), 28.9 A (480 V normal duty), 27.7 A (380 V heavy duty), 24.4 A (480 V heavy duty)
- Apparent power
- 24 kVA (480 V normal duty), 20.3 kVA (480 V heavy duty)
- Motor power hp
- 25 hp (normal duty), 20 hp (heavy duty)
- Motor power kW
- 18.5 kW (normal duty), 15 kW (heavy duty)
- Safety function
- STO (safe torque off) SIL 3
- Type of cooling
- Forced convection
- Output frequency
- 0.0001-0.5 kHz
- Supply frequency
- 50-60 Hz
- Degree of protection
- UL type 1
- Discrete input logic
- 16 preset speeds
- Prospective line Isc
- 50 kA
- Rated supply voltage
- 380-480 V
- IP degree of protection
- IP21
- Manufacturer part number
- ATV630D18N4
- Network number of phases
- 3 phases
- Continuous output current
- 39.2 A (4 kHz normal duty), 31.7 A (4 kHz heavy duty)
- Maximum transient current
- 43.1 A (60 s normal duty), 47.6 A (60 s heavy duty)
- Nominal switching frequency
- 4 kHz
