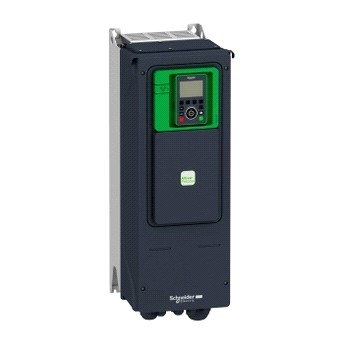

ATV650U40N4
Schneider Electric ATV650U40N4 ATV650 variable speed drive - 4kW/5HP - 380...480V - IP55. This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 4kW / 5hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 3kW / 4hp for applications requiring significant overload (up to 150%). It weighs 10.6kg and its dimensions are, 264mm wide, 678mm high, 272mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall.
Details
- Brand: Schneider Electric
- Part number: ATV650U40N4
- Series: Altivar Process ATV600
- Category: VFD
Related Schneider Electric parts
- ATV650U75N4 Variable Speed Drive 7.5kW/10HP 380-480V IP55
- ATV650U55N4 variable speed drive ATV650 - 5.5kW/7.5HP - 380...480V - IP55
- Schneider Electric ATV650D11N4 — Altivar Process ATV650 Variable Speed Drive 11kW 380-480V IP55
- ATV650D15N4 variable speed drive ATV650 - 15kW/20HP - 380...480V - IP55
- Schneider Electric ATV650D18N4 — Variable speed drive, Altivar Process ATV600, ATV650, 18.5 kW, 400...480 V, IP55
- ATV650D22N4 variable speed drive, ATV650, 22 kW, 400...480V, IP55
- Altivar Process ATV650D37N4 Variable Speed Drive
- Altivar Process ATV600 Variable Speed Drive ATV650D45N4 45kW/60HP
- Schneider Electric ATV650D55N4 — Altivar Process ATV600/ATV650 Variable Speed Drive
- Schneider Electric ATV650D75N4 — Altivar Process ATV650 Variable Speed Drive 75kW 380-480V IP55
- Schneider Electric ATV650D90N4 — Altivar Process ATV650 Variable Speed Drive 90kW 380-480V IP55
- Schneider Electric ATV650U15N4E — Altivar Process ATV600 ATV650 Variable Speed Drive 1.5 kW 400-480 V IP55
Request a quote for ATV650U40N4
Specifications
- EMC filter
- Integrated C2/C3
- Safety function
- STO SIL 3
- Type of cooling
- Forced convection
- Rated supply voltage
- 380...480 V
- Output frequency range
- 0.1...599 Hz
- IP degree of protection
- IP55
- Manufacturer part number
- ATV650U40N4
- Motor power (Heavy duty)
- 3 kW
- Network number of phases
- 3 phases
- Motor power (Normal duty)
- 4 kW
- Motor power (hp, Heavy duty)
- 4 hp
- Motor power (hp, Normal duty)
- 5 hp
- Continuous output current (Heavy duty)
- 7.2 A
- Continuous output current (Normal duty)
- 9.3 A
