ATV650D45N4

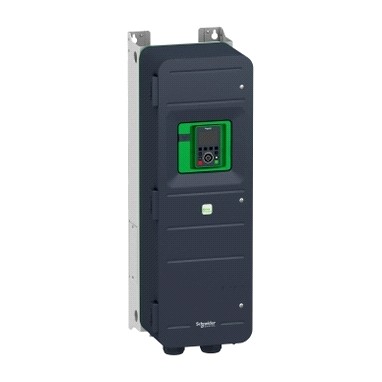

Schneider Electric ATV650D45N4 Altivar Process ATV600 Variable Speed Drive 45kW/60HP. This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 45kW / 60hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 37kW / 50hp for applications requiring significant overload (up to 150%). It weighs 110.2kg and its dimensions are, 290mm wide, 910mm high, 340mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall.
Details
- Brand: Schneider Electric
- Part number: ATV650D45N4
- Series: Altivar Process ATV600
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV650D55N4 — Altivar Process ATV600/ATV650 Variable Speed Drive
- Schneider Electric ATV650D75N4 — Altivar Process ATV650 Variable Speed Drive 75kW 380-480V IP55
- Schneider Electric ATV650D90N4 — Altivar Process ATV650 Variable Speed Drive 90kW 380-480V IP55
- Schneider Electric ATV650U15N4E — Altivar Process ATV600 ATV650 Variable Speed Drive 1.5 kW 400-480 V IP55
- Schneider Electric ATV650U07N4E — Altivar Process ATV650 Variable Speed Drive 0.75kW 1hp IP55 with Disconnect Switch
- Schneider Electric ATV650U22N4E — Altivar Process ATV650 Variable Speed Drive 2.2kW/3HP
- Altivar Process ATV650U30N4E Variable Speed Drive 3kW, 380-480V, IP55, with Disconnect Switch
- Schneider Electric ATV650U40N4E — variable speed drive ATV650 - 4kW/5HP - 380...480V - IP55 - disconnect switch
- Schneider Electric ATV650U55N4E — Altivar Process ATV650 Variable Speed Drive 5.5kW/7.5HP 380-480V IP55 with disconnect switch
- Schneider Electric ATV650U75N4E — variable speed drive ATV650 - 7.5kW/10HP - 380...480V - IP55 - disconnect switch
- Schneider Electric ATV650D11N4E — Altivar Process ATV600 Variable Speed Drive ATV650 11kW
- Schneider Electric ATV650D15N4E — Variable Speed Drive ATV650 - 15kW/20HP - 380...480V - IP55 - with disconnect switch
Request a quote for ATV650D45N4
Specifications
- Depth
- 340 mm
- Width
- 290 mm
- Height
- 910 mm
- IP protection
- IP55
- Supply frequency
- 50...60 Hz
- Rated supply voltage
- 380...480 V
- Manufacturer part number
- ATV650D45N4
- Motor power (heavy duty)
- 37 kW / 50 hp
- Network number of phases
- 3 phases
- Motor power (normal duty)
- 45 kW / 60 hp
- Nominal switching frequency
- 4 kHz
- Speed drive output frequency
- 0.1...599 Hz
- Continuous output current (normal duty)
- 87 A (4 kHz)
