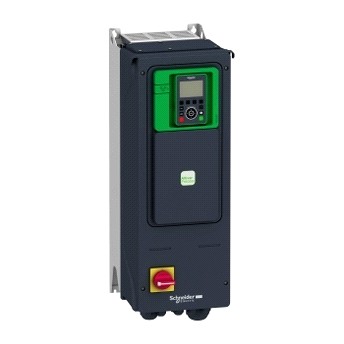

ATV650U55N4E
Schneider Electric ATV650U55N4E Altivar Process ATV650 Variable Speed Drive 5.5kW/7.5HP 380-480V IP55 with disconnect switch. This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 5.5kW / 7.5hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 4kW / 5hp for applications requiring significant overload (up to 150%). It weighs 10.7kg and its dimensions are, 264mm wide, 678mm high, 300mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall.
Details
- Brand: Schneider Electric
- Part number: ATV650U55N4E
- Series: Altivar Process ATV600
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV650U75N4E — variable speed drive ATV650 - 7.5kW/10HP - 380...480V - IP55 - disconnect switch
- Schneider Electric ATV650D11N4E — Altivar Process ATV600 Variable Speed Drive ATV650 11kW
- Schneider Electric ATV650D15N4E — Variable Speed Drive ATV650 - 15kW/20HP - 380...480V - IP55 - with disconnect switch
- Schneider Electric ATV650D18N4E — variable speed drive ATV650 - 18.5kW/25HP - 380...480V - IP55 - disconnect switch
- Schneider Electric ATV650D22N4E — Altivar Process ATV650 Variable Speed Drive 22kW 380-480V IP55 with Disconnect Switch
- Altivar Process ATV650D30N4E Variable Speed Drive 30kW/40HP
- Schneider Electric ATV650D37N4E — variable speed drive ATV650 - 37kW/50HP - 380...480V - IP55 - disconnect switch
- ATV650D45N4E Variable Speed Drive 45kW/60HP 380-480V IP55 with Disconnect Switch
- Schneider Electric ATV650D55N4E — Altivar Process ATV650 Variable Speed Drive 55kW 400-480V IP55 with Disconnect Switch
- Schneider Electric ATV650D75N4E — Altivar Process ATV650 Variable Speed Drive 75kW 380-480V IP55 with disconnect switch
- Schneider Electric ATV650D90N4E — ATV650 - 90kW/125HP - 380...480V - IP55 - disconnect switch
- Schneider Electric ATV650C25N4F — Variable speed drive, Altivar Process ATV600, ATV650, 250 kW, 400...480 V, floor standing
Request a quote for ATV650U55N4E
Specifications
- Depth
- 300 mm
- Width
- 264 mm
- Height
- 678 mm
- Phases
- 3 phases
- Weight
- 10.7 kg
- EMC filter
- Integrated (C3 <= 150 m, C2 <= 50 m)
- IP protection
- IP55
- Supply voltage
- 380...480 V
- Safety function
- STO (SIL 3)
- Output frequency range
- 0.1...599 Hz
- Manufacturer part number
- ATV650U55N4E
- Rated power (Heavy duty)
- 4 kW / 5 hp
- Rated power (Normal duty)
- 5.5 kW / 7.5 hp
- Nominal switching frequency
- 4 kHz
- Continuous output current (Heavy duty)
- 9.3 A
- Continuous output current (Normal duty)
- 12.7 A
