ATV650C25N4F

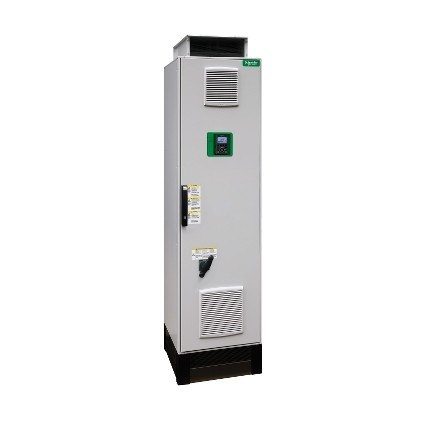

Schneider Electric ATV650C25N4F Variable speed drive, Altivar Process ATV600, ATV650, 250 kW, 400...480 V, floor standing. This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 440V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 250kW for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 200kW for applications requiring significant overload (up to 150%). It weighs 420kg and its dimensions are, 600mm wide, 2350mm high, 669mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on the floor.
Details
- Brand: Schneider Electric
- Part number: ATV650C25N4F
- Series: Altivar Process ATV600
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV6A0M10Q6 — Altivar Process ATV600 Variable Speed Drive 1000 kW
- Schneider Electric ATV6A0M10T6 — Altivar Process ATV600 Variable Speed Drive 1000 hp 600 V
- Schneider Electric ATV6A0M12N6 — Variable speed drive, Altivar Process ATV600, APM, single 500 V, 800 kW
- Schneider Electric ATV6A0M12Q6 — Variable speed drive, Altivar Process ATV600, APM, single 690 V, 1200 hp
- Schneider Electric ATV6A0M12T6 — Variable speed drive, Altivar Process ATV600, APM, single 600 V, 1200 hp
- Schneider Electric ATV630U07N4 — variable speed drive ATV630 - 0.75kW/1HP - 380...480V - IP21/ UL type 1
- Schneider Electric ATV630D15N4 — Altivar Process ATV630 Variable Speed Drive 15kW 380-480V IP21
- Schneider Electric ATV9A0C63T4 — Altivar Process ATV600 Variable Speed Drive ATV630D90N4 90 kW
- Schneider Electric ATV630U15N4 — ATV630 - 1.5kW/2HP - 380...480V - IP21/UL type 1 variable speed drive
- Schneider Electric ATV630U30N4 — Altivar Process ATV600 ATV630 Variable Speed Drive 3 kW
- ATV630U40N4 Variable Speed Drive
- Schneider Electric ATV630D11N4 — Variable speed drive, Altivar Process ATV600, ATV630, 11kW/15 hp, 380...480 V, IP21/UL type 1
Request a quote for ATV650C25N4F
Specifications
- Motor power
- 250 kW (normal duty), 200 kW (heavy duty)
- Line current
- up to 453 A
- Apparent power
- 298 kVA (normal duty), 243 kVA (heavy duty)
- Safety function
- STO (Safe Torque Off) SIL 3
- Supply frequency
- 50...60 Hz
- Prospective line Isc
- 50 kA
- Rated supply voltage
- 380...440 V
- IP degree of protection
- IP54
- Manufacturer part number
- ATV650C25N4F
- Continuous output current
- 477 A (normal duty), 370 A (heavy duty)
- Maximum transient current
- 555 A during 60 s (heavy duty)
- Nominal switching frequency
- 2.5 kHz
- Speed drive output frequency
- 0.1-500 Hz
