ATV630U07N4

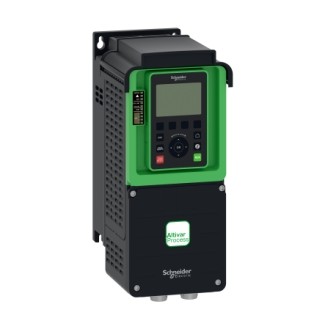

Schneider Electric ATV630U07N4 variable speed drive ATV630 - 0.75kW/1HP - 380...480V - IP21/ UL type 1. This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 0.75kW / 1hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 0.37kW / 0.5hp for applications requiring significant overload (up to 150%). It weighs 4.5kg and its dimensions are, 144mm wide, 350mm high, 203mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall.
Details
- Brand: Schneider Electric
- Part number: ATV630U07N4
- Series: Altivar Process ATV600
- Category: Variable Frequency Drive
Related Schneider Electric parts
- Schneider Electric ATV630D15N4 — Altivar Process ATV630 Variable Speed Drive 15kW 380-480V IP21
- Schneider Electric ATV9A0C63T4 — Altivar Process ATV600 Variable Speed Drive ATV630D90N4 90 kW
- Schneider Electric ATV630U15N4 — ATV630 - 1.5kW/2HP - 380...480V - IP21/UL type 1 variable speed drive
- Schneider Electric ATV630U30N4 — Altivar Process ATV600 ATV630 Variable Speed Drive 3 kW
- ATV630U40N4 Variable Speed Drive
- Schneider Electric ATV630D11N4 — Variable speed drive, Altivar Process ATV600, ATV630, 11kW/15 hp, 380...480 V, IP21/UL type 1
- Schneider Electric ATV630U15M3 — Altivar Process ATV630 Variable Speed Drive 1.5kW 200-240V IP21
- Schneider Electric ATV630U22M3 — Altivar Process ATV630 Variable Speed Drive 2.2 kW 200-240V IP21
- Schneider Electric ATV630U40Y6 — Altivar Process ATV630 Variable Speed Drive 4kW 5hp
- Schneider Electric ATV630U07M3 — Variable speed drive, Altivar Process ATV600, ATV630, 0.75kW/1 hp, 200...240 V, IP21/UL type 1
- Schneider Electric ATV630U22Y6 — Variable speed drive Altivar Process ATV600 ATV630, 2.2kW/3 hp, 500-690V, IP00
- Schneider Electric ATV630U30M3 — Altivar Process ATV630 Variable Speed Drive 3kW 200-240V IP21/UL type 1
Request a quote for ATV630U07N4
Specifications
- Supply Frequency
- 50...60 Hz
- Prospective Line Isc
- 50 kA
- Rated Supply Voltage
- 380...480 V
- IP Degree Of Protection
- IP21
- UL Degree Of Protection
- UL type 1
- Manufacturer part number
- ATV630U07N4
- Network Number Of Phases
- 3 phases
- Motor Power (Normal Duty)
- 1 hp
- Nominal Switching Frequency
- 4 kHz
- Speed Drive Output Frequency
- 0.1…500 Hz
- Line Current (Normal Duty, 380V)
- 1.5 A
- Apparent Power (Normal Duty, 480V)
- 1.1 kVA
- Continuous Output Current (Normal Duty)
- 2.2 A
