ATV630U07M3

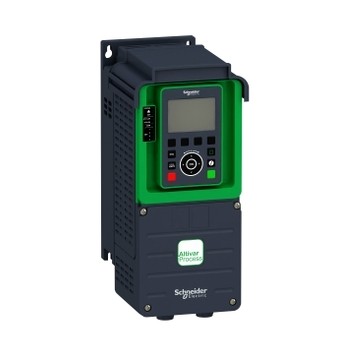

Schneider Electric ATV630U07M3 Variable speed drive, Altivar Process ATV600, ATV630, 0.75kW/1 hp, 200...240 V, IP21/UL type 1. This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 200V to 240V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 0.75kW / 1hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 0.37kW / 0.5hp for applications requiring significant overload (up to 150%). It weighs 4.3kg and its dimensions are, 144mm wide, 350mm high, 203mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall.
Details
- Brand: Schneider Electric
- Part number: ATV630U07M3
- Series: Altivar Process ATV600
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV630U22Y6 — Variable speed drive Altivar Process ATV600 ATV630, 2.2kW/3 hp, 500-690V, IP00
- Schneider Electric ATV630U30M3 — Altivar Process ATV630 Variable Speed Drive 3kW 200-240V IP21/UL type 1
- Schneider Electric ATV630U30Y6 — Altivar Process ATV630 Variable Speed Drive 3kW
- ATV630U40M3 Variable Speed Drive 4kW/5HP 200-240V IP21
- ATV630U55M3 variable speed drive ATV630 - 5.5kW/7.5HP - 200...240V - IP21/UL type 1
- Schneider Electric ATV630D15M3 — Altivar Process ATV630 Variable Speed Drive 15kW/20HP 200-240V IP21
- Schneider Electric ATV630U55Y6 — Altivar Process ATV630 Variable Speed Drive 5.5kW / 7.5hp
- Schneider Electric ATV630U75M3 — variable speed drive ATV630 - 7.5kW/10HP - 200...240V - IP21/UL type 1
- Schneider Electric ATV630D18Y6 — Altivar Process ATV630 Variable Speed Drive 18.5kW 500-690V
- Schneider Electric ATV630D22M3 — Altivar Process ATV630 Variable Speed Drive 22kW 200-240V IP21
- Schneider Electric ATV630D11M3 — ATV630 Variable Speed Drive 11kW/15HP 200-240V IP21/UL type 1
- Schneider Electric ATV630D11Y6 — Altivar Process ATV600 Variable Speed Drive 11kW 15hp 500-690V IP00
Request a quote for ATV630U07M3
Specifications
- Motor power
- 0.75 kW (normal duty) / 0.37 kW (heavy duty)
- Safety function
- STO (Safe Torque Off) SIL 3
- Output frequency
- 0.1...500 Hz
- Supply frequency
- 50...60 Hz
- UL protection type
- Type 1
- IP protection class
- IP21
- Maximum Horse Power
- 1 Hp (normal duty) / 0.5 Hp (heavy duty)
- Rated supply voltage
- 200...240 V
- Manufacturer part number
- ATV630U07M3
- Continuous output current
- 4.6 A (normal duty) / 3.3 A (heavy duty)
- Nominal switching frequency
- 4 kHz
- Short-circuit current rating (SCCR)
- 50 kA
