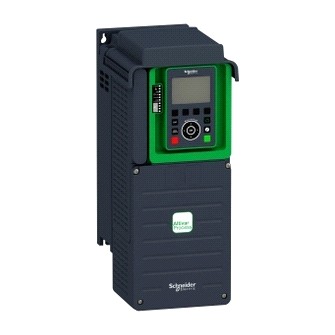

ATV630U75M3
Schneider Electric ATV630U75M3 variable speed drive ATV630 - 7.5kW/10HP - 200...240V - IP21/UL type 1. This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 200V to 240V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 7.5kW / 10hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 5.5kW / 7.5hp for applications requiring significant overload (up to 150%). It weighs 13.8kg and its dimensions are, 211mm wide, 546mm high, 232mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall.
Details
- Brand: Schneider Electric
- Part number: ATV630U75M3
- Series: Altivar Process ATV600
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV630D18Y6 — Altivar Process ATV630 Variable Speed Drive 18.5kW 500-690V
- Schneider Electric ATV630D22M3 — Altivar Process ATV630 Variable Speed Drive 22kW 200-240V IP21
- Schneider Electric ATV630D11M3 — ATV630 Variable Speed Drive 11kW/15HP 200-240V IP21/UL type 1
- Schneider Electric ATV630D11Y6 — Altivar Process ATV600 Variable Speed Drive 11kW 15hp 500-690V IP00
- Altivar Process ATV600 Variable Speed Drive ATV630D15Y6 15kW/20HP
- Schneider Electric ATV630D18M3 — Altivar Process ATV630 Variable Speed Drive 18.5 kW
- Schneider Electric ATV630D22Y6 — Altivar Process ATV630 Variable Speed Drive 22kW/30 hp, 500-690V, IP00
- Schneider Electric ATV630D30M3 — Altivar Process ATV630 Variable Speed Drive 30kW 200-240V IP21
- Schneider Electric ATV630D30Y6 — Variable speed drive, Altivar Process ATV600, ATV630, 30kW/40 hp, 500V/690 V, IP00
- Altivar Process ATV630D37M3 Variable Speed Drive 37kW/50HP 200-240V IP21/UL type 1
- Schneider Electric ATV630D37N4 — Altivar Process ATV630 Variable Speed Drive 37kW 380-480V IP21
- Schneider Electric ATV630D37Y6 — Altivar Process ATV630 Variable Speed Drive 37kW
Request a quote for ATV630U75M3
Specifications
- Depth
- 232 mm
- Width
- 211 mm
- Height
- 546 mm
- Weight
- 13.8 kg
- Cooling type
- Forced convection
- IP protection
- IP21
- UL protection
- Type 1
- Number of phases
- 3
- Supply frequency
- 50-60 Hz
- Rated supply voltage
- 200-240 V
- Manufacturer part number
- ATV630U75M3
- Motor power (heavy duty)
- 5.5 kW
- Motor power (normal duty)
- 7.5 kW
- Nominal switching frequency
- 4 kHz
- Continuous output current (heavy duty)
- 25.4 A
- Continuous output current (normal duty)
- 32.7 A
