ATV630D22M3

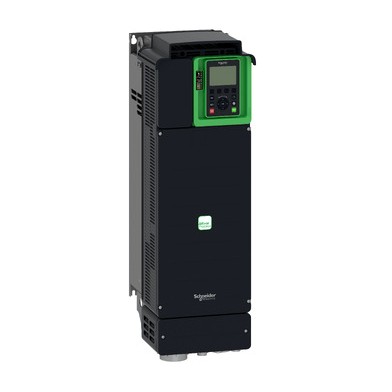

Schneider Electric ATV630D22M3 Altivar Process ATV630 Variable Speed Drive 22kW 200-240V IP21. This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 200V to 240V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 22kW / 30hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 18.5kW / 25hp for applications requiring significant overload (up to 150%). It weighs 14.3kg and its dimensions are, 226mm wide, 673mm high, 271mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall.
Details
- Brand: Schneider Electric
- Part number: ATV630D22M3
- Series: Altivar Process ATV600
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV630D11M3 — ATV630 Variable Speed Drive 11kW/15HP 200-240V IP21/UL type 1
- Schneider Electric ATV630D11Y6 — Altivar Process ATV600 Variable Speed Drive 11kW 15hp 500-690V IP00
- Altivar Process ATV600 Variable Speed Drive ATV630D15Y6 15kW/20HP
- Schneider Electric ATV630D18M3 — Altivar Process ATV630 Variable Speed Drive 18.5 kW
- Schneider Electric ATV630D22Y6 — Altivar Process ATV630 Variable Speed Drive 22kW/30 hp, 500-690V, IP00
- Schneider Electric ATV630D30M3 — Altivar Process ATV630 Variable Speed Drive 30kW 200-240V IP21
- Schneider Electric ATV630D30Y6 — Variable speed drive, Altivar Process ATV600, ATV630, 30kW/40 hp, 500V/690 V, IP00
- Altivar Process ATV630D37M3 Variable Speed Drive 37kW/50HP 200-240V IP21/UL type 1
- Schneider Electric ATV630D37N4 — Altivar Process ATV630 Variable Speed Drive 37kW 380-480V IP21
- Schneider Electric ATV630D37Y6 — Altivar Process ATV630 Variable Speed Drive 37kW
- Altivar Process ATV630D45M3 Variable Speed Drive 45kW/60HP 200-240V IP21/UL type 1
- Schneider Electric ATV630D45Y6 — Altivar Process ATV630 Variable Speed Drive 45kW 500-690V
Request a quote for ATV630D22M3
Specifications
- Number of phases
- 3
- Supply frequency
- 50-60 Hz
- UL protection type
- Type 1
- Rated supply voltage
- 200-240 V
- Output frequency range
- 0.1-500 Hz
- IP degree of protection
- IP21
- Manufacturer part number
- ATV630D22M3
- Motor power (heavy duty)
- 18.5 kW / 25 hp
- Motor power (normal duty)
- 22 kW / 30 hp
- Nominal output current (normal duty)
- 92.6 A
- Continuous output current (heavy duty)
- 78.4 A
