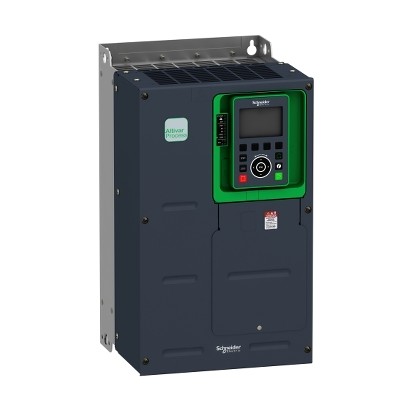

ATV630D18Y6
Schneider Electric ATV630D18Y6 Altivar Process ATV630 Variable Speed Drive 18.5kW 500-690V. This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. This variable speed drive features an integrated EMC filter with 25m cable conforming to category C3. It works at a rated supply voltage from 500V to 690VAC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 18.5kW/25hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 15kW/20HP for applications requiring significant overload (up to 150%). Its dimensions are 246mm (width) x 242mm (depth) x 420mm (height). It weighs 22kg. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. This product is certified by CE, CSA and TUV. It meets UL 508C, EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508 and IEC 13849-1 standards. Accessories (fan kit, graphic display terminal) and options (line chokes, dv/dt filter, sinus filter, EMC filter) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall.
Details
- Brand: Schneider Electric
- Part number: ATV630D18Y6
- Series: Altivar Process ATV600
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV630D22M3 — Altivar Process ATV630 Variable Speed Drive 22kW 200-240V IP21
- Schneider Electric ATV630D11M3 — ATV630 Variable Speed Drive 11kW/15HP 200-240V IP21/UL type 1
- Schneider Electric ATV630D11Y6 — Altivar Process ATV600 Variable Speed Drive 11kW 15hp 500-690V IP00
- Altivar Process ATV600 Variable Speed Drive ATV630D15Y6 15kW/20HP
- Schneider Electric ATV630D18M3 — Altivar Process ATV630 Variable Speed Drive 18.5 kW
- Schneider Electric ATV630D22Y6 — Altivar Process ATV630 Variable Speed Drive 22kW/30 hp, 500-690V, IP00
- Schneider Electric ATV630D30M3 — Altivar Process ATV630 Variable Speed Drive 30kW 200-240V IP21
- Schneider Electric ATV630D30Y6 — Variable speed drive, Altivar Process ATV600, ATV630, 30kW/40 hp, 500V/690 V, IP00
- Altivar Process ATV630D37M3 Variable Speed Drive 37kW/50HP 200-240V IP21/UL type 1
- Schneider Electric ATV630D37N4 — Altivar Process ATV630 Variable Speed Drive 37kW 380-480V IP21
- Schneider Electric ATV630D37Y6 — Altivar Process ATV630 Variable Speed Drive 37kW
- Altivar Process ATV630D45M3 Variable Speed Drive 45kW/60HP 200-240V IP21/UL type 1
Request a quote for ATV630D18Y6
Specifications
- Motor power
- 18.5 kW
- Motor power (HP)
- 25 hp
- Number of phases
- 3
- Output frequency
- 0.1-500 Hz
- Rated supply voltage
- 500...690 V
- Nominal output current
- 24.0 A
- IP degree of protection
- IP00
- Manufacturer part number
- ATV630D18Y6
