ATV650D75N4

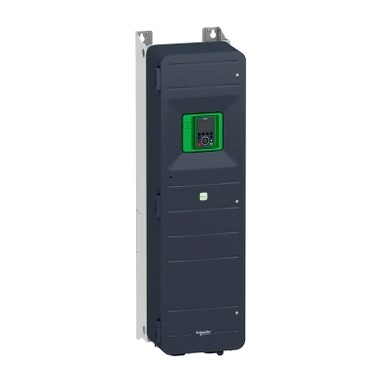

Schneider Electric ATV650D75N4 — VFD

Schneider Electric ATV650D75N4 Altivar Process ATV650 Variable Speed Drive 75kW 380-480V IP55. This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 75kW / 100hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 55kW / 75hp for applications requiring significant overload (up to 150%). It weighs 87kg and its dimensions are, 345mm wide, 1250mm high, 375mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall.

Details

Related Schneider Electric parts

Request a quote for ATV650D75N4

Specifications

Safety function
STO (safe torque off) SIL 3
Type of cooling
Forced convection
Number of phases
3
Output frequency
0.1...599 Hz
Rated supply voltage
380...480 V
IP degree of protection
IP55
Manufacturer part number
ATV650D75N4
Motor power (heavy duty)
55 kW
Motor power (normal duty)
75 kW
Nominal switching frequency
2.5 kHz
Line current (380V normal duty)
131.3 A
