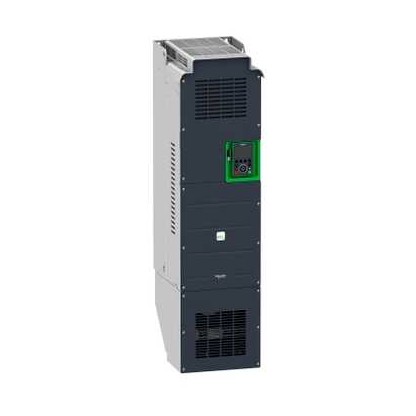

ATV630C11N4
Schneider Electric ATV630C11N4 ATV630 Variable Speed Drive 110kW/150HP 380...480V IP00. This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 110kW / 150hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 90kW / 125hp for applications requiring significant overload (up to 150%). It weighs 82kg and its dimensions are, 320mm wide, 852mm high, 390mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall.
Details
- Brand: Schneider Electric
- Part number: ATV630C11N4
- Series: Altivar Process ATV600
- Category: VFD
Related Schneider Electric parts
- ATV650U15N4 Variable Speed Drive Altivar Process ATV600
- Altivar Process ATV600 Variable Speed Drive ATV650U07N4 0.75kW/1HP 380-480V
- Schneider Electric ATV630C31N4F — Altivar Process ATV600 ATV630 Variable Speed Drive 315 kW 380-440 V IP21
- ATV650U22N4 variable speed drive, ATV650, 2.2 kW, 400...480V, IP55
- Schneider Electric ATV650U30N4 — Altivar Process ATV650 Variable Speed Drive 3kW 380-480V IP55
- Schneider Electric ATV650U40N4 — ATV650 variable speed drive - 4kW/5HP - 380...480V - IP55
- ATV650U75N4 Variable Speed Drive 7.5kW/10HP 380-480V IP55
- ATV650U55N4 variable speed drive ATV650 - 5.5kW/7.5HP - 380...480V - IP55
- Schneider Electric ATV650D11N4 — Altivar Process ATV650 Variable Speed Drive 11kW 380-480V IP55
- ATV650D15N4 variable speed drive ATV650 - 15kW/20HP - 380...480V - IP55
- Schneider Electric ATV650D18N4 — Variable speed drive, Altivar Process ATV600, ATV650, 18.5 kW, 400...480 V, IP55
- ATV650D22N4 variable speed drive, ATV650, 22 kW, 400...480V, IP55
Request a quote for ATV630C11N4
Specifications
- IP protection
- IP00
- Network phases
- 3
- Safety function
- STO (safe torque off) SIL 3
- Type of cooling
- Forced convection
- Supply frequency
- 50...60 Hz
- Line current (max)
- 201 A
- Rated supply voltage
- 380...480 V
- Manufacturer part number
- ATV630C11N4
- Motor power (Heavy Duty)
- 90 kW / 125 hp
- Motor power (Normal Duty)
- 110 kW / 150 hp
- Nominal switching frequency
- 2.5 kHz
- Output current (Heavy Duty)
- 173 A
- Output current (Normal Duty)
- 211 A
