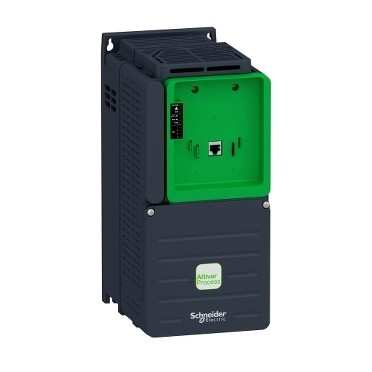

ATV630D11N4Z
Schneider Electric ATV630D11N4Z Altivar Process ATV630 Variable Speed Drive 11 kW 380-480 V. This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features three built-in RJ45 communication ports as standard, 1 Ethernet port, and two serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive saves up to 30% energy when on standby due to the innovative ‘‘Stop and Go " operation without additional costs. It is suitable for motors with a power rating of up to 11kW / 15hp for applications requiring slight overload (up to 120%). It is suitable for motors with a power rating of up to 7.5kW / 10hp for applications requiring significant overload (up to 150%). It weighs 6.9kg, and its dimensions are 155mm wide, 345mm high, and 225mm deep. This drive is focused on fluids management processing and energy saving; it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas, and food and beverage applications. Accessories (fan kit, graphic display terminal, etc.) and options (I/O expansion modules, communication modules, EMC input filters, etc.) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted vertically on a wall (+/- 10 °).
Details
- Brand: Schneider Electric
- Part number: ATV630D11N4Z
- Series: Altivar Process ATV600
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV630D18N4 — Altivar Process ATV630 Variable Speed Drive 18.5kW/25HP 380-480V IP21/UL Type 1
- Schneider Electric ATV630D55N4Z — Altivar Process ATV600 Variable Speed Drive ATV630 - 55kW/75HP - 380-480V - IP21
- ATV630U75N4 variable speed drive ATV630 - 7.5kW/10HP - 380...480V - IP21/UL type 1
- ATV630U55N4 variable speed drive ATV630 - 5.5kW/7.5HP - 380...480V - IP21/UL type 1
- Schneider Electric ATV630C11N4 — ATV630 Variable Speed Drive 110kW/150HP 380...480V IP00
- ATV650U15N4 Variable Speed Drive Altivar Process ATV600
- Altivar Process ATV600 Variable Speed Drive ATV650U07N4 0.75kW/1HP 380-480V
- Schneider Electric ATV630C31N4F — Altivar Process ATV600 ATV630 Variable Speed Drive 315 kW 380-440 V IP21
- ATV650U22N4 variable speed drive, ATV650, 2.2 kW, 400...480V, IP55
- Schneider Electric ATV650U30N4 — Altivar Process ATV650 Variable Speed Drive 3kW 380-480V IP55
- Schneider Electric ATV650U40N4 — ATV650 variable speed drive - 4kW/5HP - 380...480V - IP55
- ATV650U75N4 Variable Speed Drive 7.5kW/10HP 380-480V IP55
Request a quote for ATV630D11N4Z
Specifications
- Analog inputs
- 3
- Relay outputs
- 3
- Analog outputs
- 2
- Network phases
- 3 phases
- Discrete inputs
- 8
- Safety function
- STO (safe torque off) SIL 3
- Output frequency
- 0.1…500 Hz
- Supply frequency
- 50...60 Hz
- Rated supply voltage
- 380...480 V
- Nominal output current
- 23.5 A
- IP degree of protection
- IP20
- Manufacturer part number
- ATV630D11N4Z
- Motor power (normal duty)
- 11 kW
