ATV630D30N4

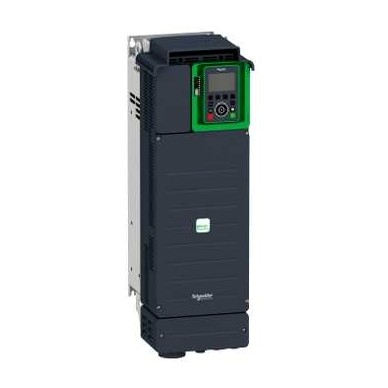

Schneider Electric ATV630D30N4 variable speed drive. This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 30kW / 40hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 22kW / 30hp for applications requiring significant overload (up to 150%). It weighs 28kg and its dimensions are, 226mm wide, 673mm high, 271mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall.
Details
- Brand: Schneider Electric
- Part number: ATV630D30N4
- Series: Altivar Process ATV600
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV630D11N4Z — Altivar Process ATV630 Variable Speed Drive 11 kW 380-480 V
- Schneider Electric ATV630D18N4 — Altivar Process ATV630 Variable Speed Drive 18.5kW/25HP 380-480V IP21/UL Type 1
- Schneider Electric ATV630D55N4Z — Altivar Process ATV600 Variable Speed Drive ATV630 - 55kW/75HP - 380-480V - IP21
- ATV630U75N4 variable speed drive ATV630 - 7.5kW/10HP - 380...480V - IP21/UL type 1
- ATV630U55N4 variable speed drive ATV630 - 5.5kW/7.5HP - 380...480V - IP21/UL type 1
- Schneider Electric ATV630C11N4 — ATV630 Variable Speed Drive 110kW/150HP 380...480V IP00
- ATV650U15N4 Variable Speed Drive Altivar Process ATV600
- Altivar Process ATV600 Variable Speed Drive ATV650U07N4 0.75kW/1HP 380-480V
- Schneider Electric ATV630C31N4F — Altivar Process ATV600 ATV630 Variable Speed Drive 315 kW 380-440 V IP21
- ATV650U22N4 variable speed drive, ATV650, 2.2 kW, 400...480V, IP55
- Schneider Electric ATV650U30N4 — Altivar Process ATV650 Variable Speed Drive 3kW 380-480V IP55
- Schneider Electric ATV650U40N4 — ATV650 variable speed drive - 4kW/5HP - 380...480V - IP55
Request a quote for ATV630D30N4
Specifications
- Network phases
- 3 phases
- Safety function
- STO (safe torque off) SIL 3
- Supply frequency
- 50...60 Hz
- Prospective line Isc
- 50 kA
- Rated supply voltage
- 380...480 V
- Output frequency range
- 0.0001...0.5 kHz
- IP degree of protection
- IP21
- UL degree of protection
- UL type 1
- Manufacturer part number
- ATV630D30N4
- Motor power (Heavy Duty)
- 22 kW / 30 hp
- Line current (Heavy Duty)
- 40.5 A @ 380 V, 35.8 A @ 480 V
- Motor power (Normal Duty)
- 30 kW / 40 hp
- Line current (Normal Duty)
- 53.3 A @ 380 V, 45.9 A @ 480 V
- Apparent power (Heavy Duty)
- 29.8 kVA @ 480 V
- Nominal switching frequency
- 4 kHz
- Apparent power (Normal Duty)
- 38.2 kVA @ 480 V
- Continuous output current (Heavy Duty)
- 46.3 A @ 4 kHz
- Maximum transient current (Heavy Duty)
- 69.5 A (60 s)
- Continuous output current (Normal Duty)
- 61.5 A @ 4 kHz
- Maximum transient current (Normal Duty)
- 67.7 A (60 s)
