ATV630D45N4

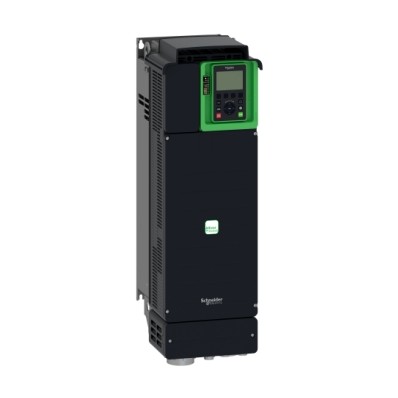

Schneider Electric ATV630D45N4 Altivar Process ATV630 Variable Speed Drive 45kW. This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 45kW / 60hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 37kW / 50hp for applications requiring significant overload (up to 150%). It weighs 28.7kg and its dimensions are, 226mm wide, 673mm high, 271mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall.
Details
- Brand: Schneider Electric
- Part number: ATV630D45N4
- Series: Altivar Process ATV600
- Category: VFD
Related Schneider Electric parts
- Altivar Process ATV600 Variable Speed Drive ATV630D55M3 55kW/75HP
- Schneider Electric ATV630D55N4 — ATV630 Variable Speed Drive 55kW/75HP 380-480V IP21/UL Type 1
- Schneider Electric ATV630D55Y6 — Altivar Process ATV600 ATV630 Variable Speed Drive 55kW/75hp 500-690V
- Schneider Electric ATV630U07N4Z — Altivar Process ATV630 Variable Speed Drive 0.75 kW 380-480V
- Altivar Process ATV600 Variable Speed Drive ATV630D75Y6, 75kW, 500-690V, IP00
- Altivar Process ATV600 Variable Speed Drive ATV630D75N4
- Altivar Process ATV630U22N4 Variable Speed Drive 2.2 kW
- Altivar Process ATV600 Variable Speed Drive ATV630U40N4Z
- Altivar Process ATV630D90N4 Variable Speed Drive 90kW 380-480V IP21
- Schneider Electric ATV630D90Y6 — Altivar Process ATV600 Variable Speed Drive 90 kW
- Schneider Electric ATV630D15N4Z — Altivar Process ATV630 Variable Speed Drive 15 kW
- Schneider Electric ATV630U15N4Z — Altivar Process ATV630 Variable Speed Drive, 1.5kW, IP20
Request a quote for ATV630D45N4
Specifications
- Mounting
- Wall mount
- EMC filter
- Integrated (C2, C3)
- Cooling type
- Forced convection
- IP protection
- IP21
- Preset speeds
- 16
- UL protection
- Type 1
- Apparent power
- 57.4 kVA (480 V normal duty)
- Network phases
- 3
- Safety function
- STO (SIL 3)
- Supply frequency
- 50...60 Hz
- Prospective line Isc
- 50 kA
- Rated supply voltage
- 380...480 V
- Max transient current
- 96.8 A (60 s normal duty)
- Output frequency range
- 0.0001...0.5 kHz
- Manufacturer part number
- ATV630D45N4
- Motor power (Heavy Duty)
- 37 kW (50 hp)
- Continuous output current
- 88 A (4 kHz normal duty)
- Motor power (Normal Duty)
- 45 kW (60 hp)
- Nominal switching frequency
- 4 kHz
- Line current (380 V Normal Duty)
- 79.8 A
- Line current (480 V Normal Duty)
- 69.1 A
