ATS22D75Q

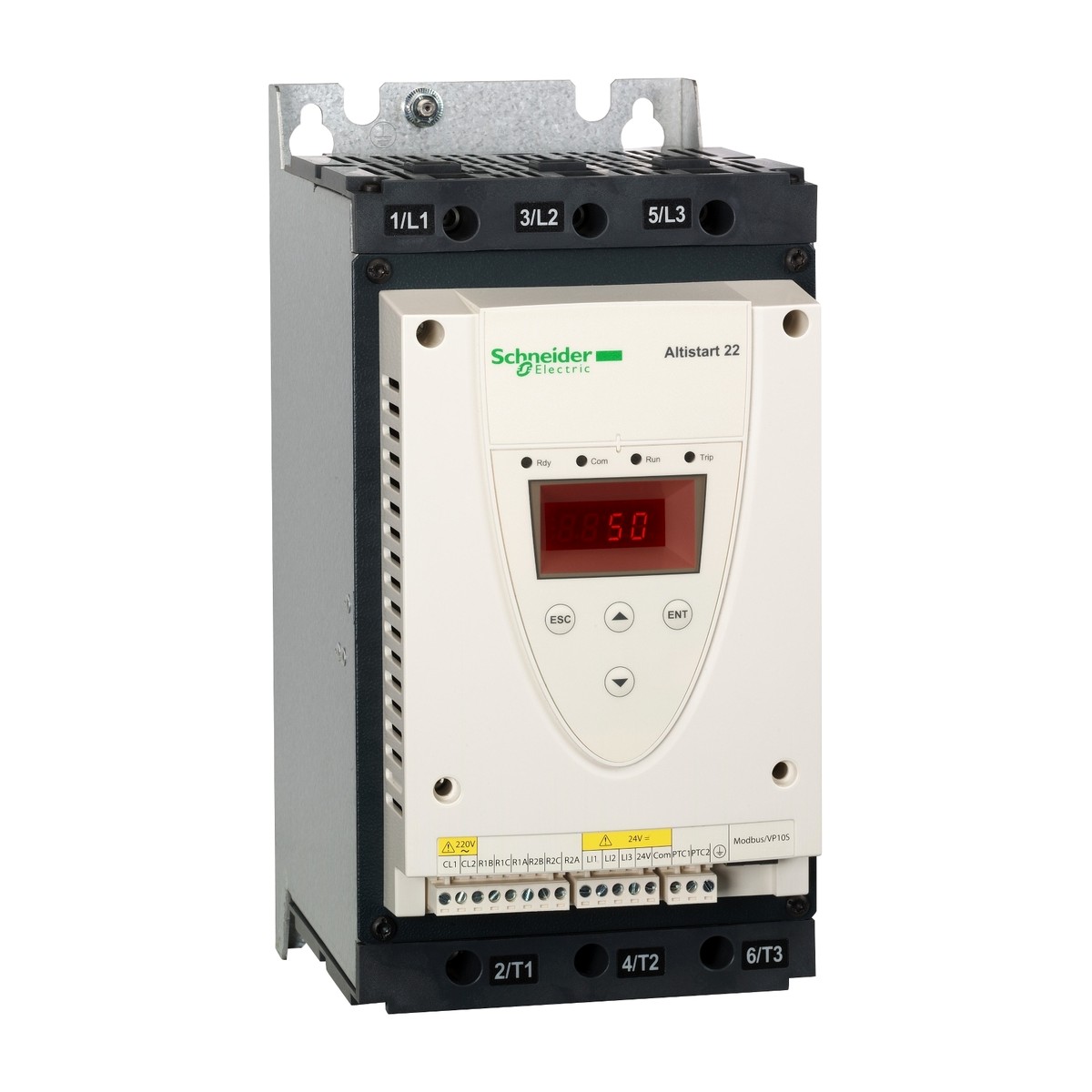

Schneider Electric ATS22D75Q — Soft Starter

Schneider Electric ATS22D75Q Altistart 22 Soft Starter for Asynchronous Motors, 230-440V, 18.5-37kW. This soft starter can feed 3-phase asynchronous motors in supply line or delta connection. It has a rating of 75A and 230V to 440V, a rated power up to 37kW (400V to 440V in supply line) and up to 75kW (440V in motor delta connection). It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Details

Related Schneider Electric parts

Request a quote for ATS22D75Q

Specifications

Depth
207 mm
Width
145 mm
Height
295 mm
Phases
3
IP rating
IP20
Net weight
12 kg
Motor power
18.5-37 kW
IcL starter rating
75 A
Rated supply voltage
230-440 V
Communication protocol
Modbus
Control circuit voltage
230 V
Manufacturer part number
ATS22D75Q

Product documentation

View Indumarket specification summary (PDF)
