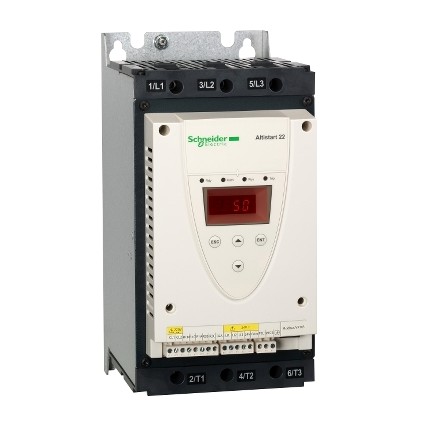

ATS22D88Q
Schneider Electric ATS22D88Q Altistart 22 Soft Starter. This soft starter can feed 3-phase asynchronous motors in supply line or delta connection. It has a rating of 88A and 230V to 440V, a rated power up to 45kW (400V to 440V in supply line) and up to 75kW (400V to 440V in motor delta connection). It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Details
- Brand: Schneider Electric
- Part number: ATS22D88Q
- Series: Altistart 22
- Category: Soft Starter
Related Schneider Electric parts
- ATS22C11Q Soft Starter for Asynchronous Motors - Control 220V, Power 230V (39kW) / 400-440V (55kW)
- Schneider Electric ATS22C14Q — Altistart 22 Soft Starter for Asynchronous Motors
- Altistart 22 Soft Starter ATS22C32Q
- Altistart 22 Soft Starter ATS22C17Q
- Schneider Electric ATS22C21Q — Altistart 22 Soft Starter for Asynchronous Motor, 230-440V, 55-110kW
- Schneider Electric ATS22C25Q — Altistart 22 Soft Starter for Asynchronous Motors
- Soft starter ATS22C41Q for asynchronous motors
- ATS22C48Q Soft Starter - Control 220V, Power 230V (132kW) / 400-440V (250kW)
- Schneider Electric ATS22C59Q — Altistart 22 Soft Starter for 3-phase Asynchronous Motors
- Schneider Electric ATS22D17Q — Altistart 22 Soft Starter for Asynchronous Motors 4 to 7.5 kW
- Altistart 22 Soft Starter ATS22D32Q
- Altistart 22 Soft Starter ATS22D47Q for Asynchronous Motors
Specifications
- Net weight
- 12 kg
- Number of phases
- 3 phases
- Dimensions (HxWxD)
- 295 mm x 145 mm x 207 mm
- Rated supply voltage
- 230...440 V
- Starter Rating (IcL)
- 88 A
- Communication protocol
- Modbus
- Max Motor Power (230V)
- 22 kW
- Control circuit voltage
- 230 V
- IP degree of protection
- IP20
- Manufacturer part number
- ATS22D88Q
- Max Motor Power (400-440V)
- 45 kW
