ATS22C11Q

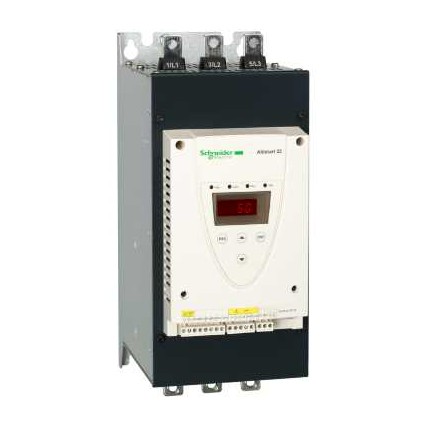

Schneider Electric ATS22C11Q — Soft Starter

Schneider Electric ATS22C11Q Soft Starter for Asynchronous Motors - Control 220V, Power 230V (39kW) / 400-440V (55kW). This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line or delta connection. It has a rating of 110A and 230V to 440V, a rated power up to 55kW (400V to 440V in supply line) and up to 90kW (400V to 440V in motor delta connection). It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Details

Related Schneider Electric parts

Request a quote for ATS22C11Q

Specifications

Weight
18 kg
Motor power
39 kW (230 V), 55 kW (400-440 V)
IP protection
IP20
Power supply voltage
230-440 V
Nominal current (Icl)
110 A
Operating temperature
-10 to 40 °C
Control circuit voltage
220-230 V
Manufacturer part number
ATS22C11Q
