ATS22C17Q

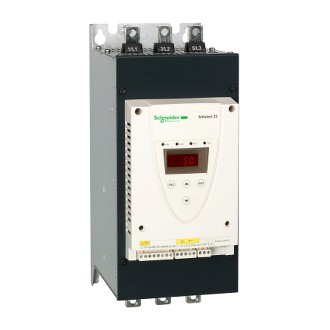

Schneider Electric ATS22C17Q Altistart 22 Soft Starter. This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line or delta connection. It has a rating of 170A and 230V to 440V, a rated power up to 90kW (400V to 440V in supply line) and up to 132kW (400V to 440V in motor delta connection). It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Details
- Brand: Schneider Electric
- Part number: ATS22C17Q
- Series: Altistart 22
- Category: Soft Starter
Related Schneider Electric parts
- Schneider Electric ATS22C21Q — Altistart 22 Soft Starter for Asynchronous Motor, 230-440V, 55-110kW
- Schneider Electric ATS22C25Q — Altistart 22 Soft Starter for Asynchronous Motors
- Soft starter ATS22C41Q for asynchronous motors
- ATS22C48Q Soft Starter - Control 220V, Power 230V (132kW) / 400-440V (250kW)
- Schneider Electric ATS22C59Q — Altistart 22 Soft Starter for 3-phase Asynchronous Motors
- Schneider Electric ATS22D17Q — Altistart 22 Soft Starter for Asynchronous Motors 4 to 7.5 kW
- Altistart 22 Soft Starter ATS22D32Q
- Altistart 22 Soft Starter ATS22D47Q for Asynchronous Motors
- Altistart 22 Soft Starter ATS22D62Q
- Schneider Electric ATS22D75Q — Altistart 22 Soft Starter for Asynchronous Motors, 230-440V, 18.5-37kW
- Altistart 22 Soft Starter ATS22D88Q
- ATS22C11Q Soft Starter for Asynchronous Motors - Control 220V, Power 230V (39kW) / 400-440V (55kW)
Specifications
- Depth
- 229.5 mm
- Width
- 150 mm
- Height
- 356 mm
- Product weight
- 18 kg
- IcL starter rating
- 170 A
- Motor power (230 V)
- 45 kW
- Motor power (400 V)
- 90 kW
- Motor power (440 V)
- 90 kW
- Rated supply voltage
- 230...440 V
- Communication protocol
- Modbus
- Control circuit voltage
- 230 V
- Factory setting current
- 162 A
- IP degree of protection
- IP00
- Manufacturer part number
- ATS22C17Q
- Ambient air temperature for operation
- -10…40 °C
