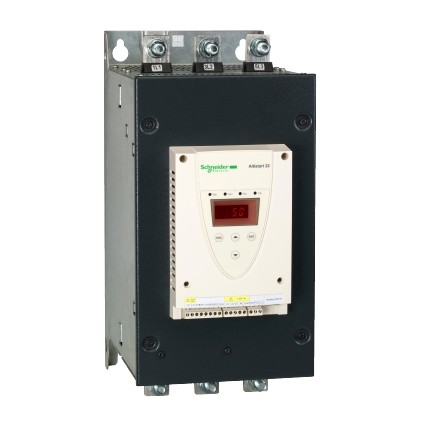

ATS22C25Q
Schneider Electric ATS22C25Q Altistart 22 Soft Starter for Asynchronous Motors. This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line or delta connection. It has a rating of 250A and 230V to 440V, a rated power up to 132kW (400V to 440V in supply line) and up to 220kW (400V to 440V in motor delta connection). It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Details
- Brand: Schneider Electric
- Part number: ATS22C25Q
- Series: Altistart 22
- Category: Soft Starter
Related Schneider Electric parts
- Soft starter ATS22C41Q for asynchronous motors
- ATS22C48Q Soft Starter - Control 220V, Power 230V (132kW) / 400-440V (250kW)
- Schneider Electric ATS22C59Q — Altistart 22 Soft Starter for 3-phase Asynchronous Motors
- Schneider Electric ATS22D17Q — Altistart 22 Soft Starter for Asynchronous Motors 4 to 7.5 kW
- Altistart 22 Soft Starter ATS22D32Q
- Altistart 22 Soft Starter ATS22D47Q for Asynchronous Motors
- Altistart 22 Soft Starter ATS22D62Q
- Schneider Electric ATS22D75Q — Altistart 22 Soft Starter for Asynchronous Motors, 230-440V, 18.5-37kW
- Altistart 22 Soft Starter ATS22D88Q
- ATS22C11Q Soft Starter for Asynchronous Motors - Control 220V, Power 230V (39kW) / 400-440V (55kW)
- Schneider Electric ATS22C14Q — Altistart 22 Soft Starter for Asynchronous Motors
- Altistart 22 Soft Starter ATS22C32Q
Specifications
- Depth
- 299 mm
- Width
- 206 mm
- Height
- 425 mm
- Net weight
- 33 kg
- Motor power
- 75 kW (230 V), 132 kW (400-440 V)
- IP protection
- IP00
- Assembly style
- With heat sink
- Number of phases
- 3 phases
- Supply frequency
- 50...60 Hz
- Physical interface
- RS485 multidrop
- Rated supply voltage
- 230...440 V
- Starter rating (IcL)
- 250 A
- Utilisation category
- AC-53A
- Discrete input number
- 3
- Operating temperature
- -10…40 °C
- Communication protocol
- Modbus
- Discrete output number
- 2
- Control circuit voltage
- 230 V
- Manufacturer part number
- ATS22C25Q
