ATS22D17Q

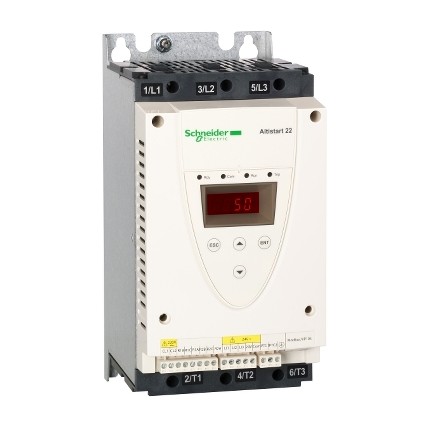

Schneider Electric ATS22D17Q Altistart 22 Soft Starter for Asynchronous Motors 4 to 7.5 kW. This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 17A and 230V to 440V, a rated power up to 7.5kW (400V to 440V in supply line) and up to 15kW (440V in motor delta connection). It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Details

Brand: Schneider Electric
Part number: ATS22D17Q
Series: Altistart 22
Category: Soft Starter

Related Schneider Electric parts

Request a quote for ATS22D17Q

Specifications

Depth: 169 mm
Width: 130 mm
Height: 265 mm
Phases: 3
Net weight: 7 kg
IP protection: IP20
Certifications: UL, GOST, CSA, CCC, C-Tick
Motor power (kW): 4...7.5 kW
IcL starter rating: 17 A
Rated supply voltage: 230...440 V
Communication protocol: Modbus (RS485)
Control circuit voltage: 230 V
Manufacturer part number: ATS22D17Q
