A9R21463

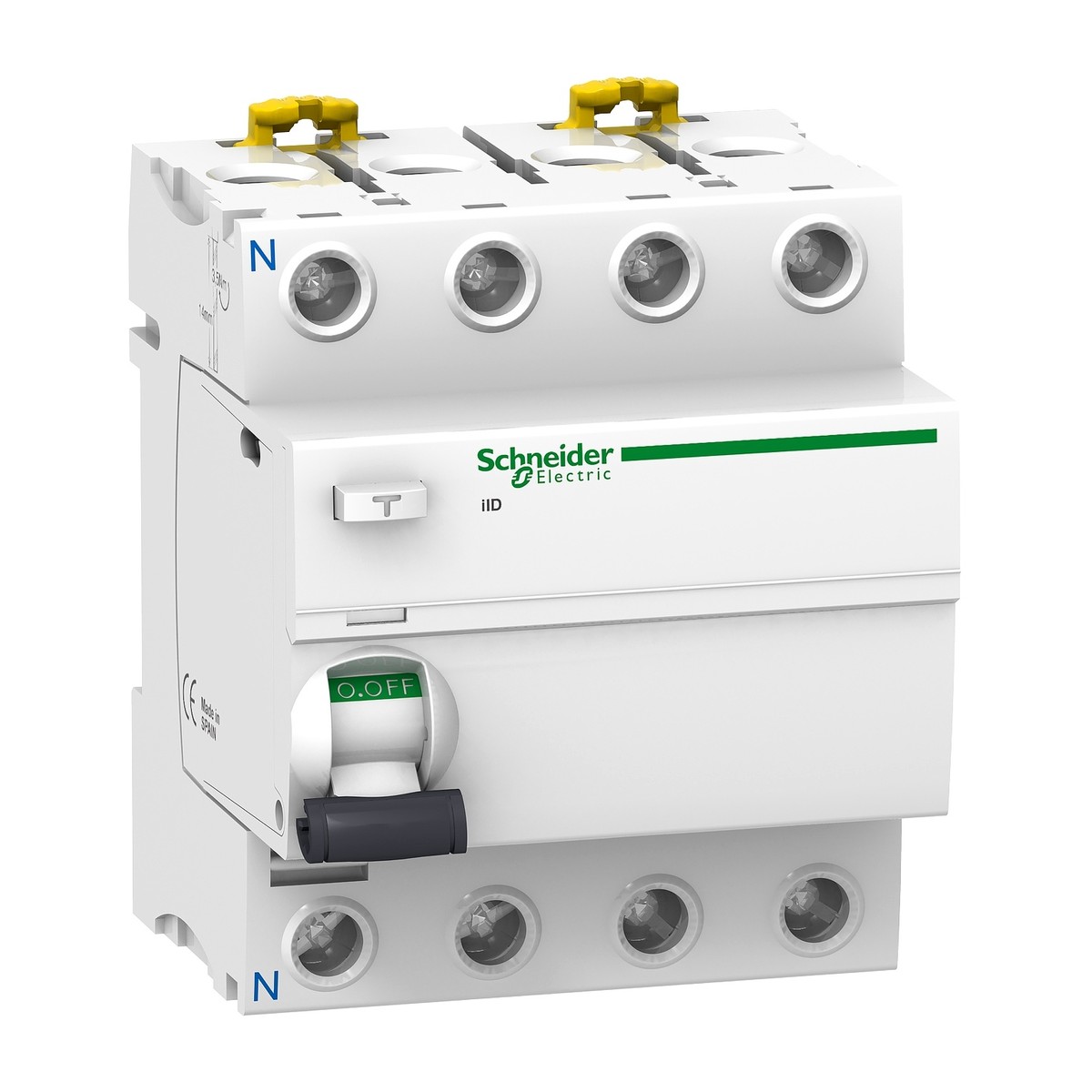

Schneider Electric A9R21463 Acti9 iID. This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 4P circuit breaker with 63A In rated current, 30mA earth leakage sensitivity and A type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with EN/IEC 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has an electrical endurance going up to 15000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 380VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 91mm x (D) 73.5mm. The weight is 0.37kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.
Details
- Brand: Schneider Electric
- Part number: A9R21463
- Series: Acti9
- Category: RCCB / RCD
Related Schneider Electric parts
- Schneider Electric A9D11825 — Acti9 iC60 RCBO
- Schneider Electric A9D11806 — Acti9 iC60H RCBO 1P+N 6A C 30mA 240V
- Schneider Electric A9D11810 — Residual current breaker with overcurrent protection (RCBO), Acti9 iC60H RCBO, 1P + N, 10A, 30mA, A type, 10000A
- Schneider Electric A9F74210 — Miniature Circuit Breaker iC60N 2P 10A C
- Schneider Electric A9F74225 — Acti9 iC60N Miniature Circuit Breaker 2P 25A C-Curve
- Schneider Electric A9F74220 — Acti9 iC60N Miniature Circuit-Breaker 2P 20A C-curve
- Schneider Electric A9F73101 — Acti9 iC60N Miniature Circuit Breaker 1P 1A B-Curve
- Schneider Electric A9F73110 — Acti9 iC60N Miniature Circuit Breaker, 1P 10A B-Curve
- Schneider Electric A9F73120 — Miniature Circuit Breaker Acti9 iC60N 1P 20A B-Curve
- Schneider Electric A9F73202 — Acti9 iC60N 2P 2A B-curve Miniature Circuit Breaker
- Schneider Electric A9F73203 — Miniature Circuit Breaker (MCB) Acti9 iC60N 2P 3A B-Curve
- Schneider Electric A9F73204 — Acti9 iC60N Miniature Circuit Breaker 2P 4A B-curve
Specifications
- Depth
- 73.5 mm
- Poles
- 4P
- Width
- 72 mm
- Height
- 91 mm
- Network type
- AC
- Mounting mode
- Clip-on
- Rated current
- 63 A
- Product weight
- 0.37 kg
- Mounting support
- DIN rail
- IP degree of protection
- IP20
- Manufacturer order code
- A9R21463
- Manufacturer part number
- A9R21463
- Earth-leakage sensitivity
- 30 mA
- Rated operational voltage
- 380...415 V AC 50/60 Hz
- Earth-leakage protection class
- Type A
- Ambient air temperature for operation
- -25…60 °C
