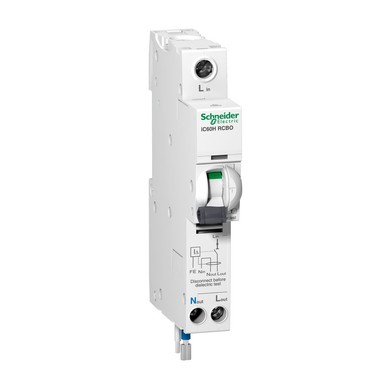

Schneider Electric A9D11825 Acti9 iC60 RCBO. This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 25A In rated current and C tripping curve. The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard. Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. This product is compliant with IEC 61009-1 and BS EN 61009-1 standards. It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 2. The product color is white (RAL9003). The dimensions are (W) 18mm x (H) 110mm x (D) 77.5mm. The weight is 205g. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -15°C to 60°C. The storage temperature is from -40°C to 85°C.
Details
- Brand: Schneider Electric
- Part number: A9D11825
- Series: Acti9
- Category: RCBO
Related Schneider Electric parts
- Schneider Electric A9D11806 — Acti9 iC60H RCBO 1P+N 6A C 30mA 240V
- Schneider Electric A9D11810 — Residual current breaker with overcurrent protection (RCBO), Acti9 iC60H RCBO, 1P + N, 10A, 30mA, A type, 10000A
- Schneider Electric A9F74210 — Miniature Circuit Breaker iC60N 2P 10A C
- Schneider Electric A9F74225 — Acti9 iC60N Miniature Circuit Breaker 2P 25A C-Curve
- Schneider Electric A9F74220 — Acti9 iC60N Miniature Circuit-Breaker 2P 20A C-curve
- Schneider Electric A9F73101 — Acti9 iC60N Miniature Circuit Breaker 1P 1A B-Curve
- Schneider Electric A9F73110 — Acti9 iC60N Miniature Circuit Breaker, 1P 10A B-Curve
- Schneider Electric A9F73120 — Miniature Circuit Breaker Acti9 iC60N 1P 20A B-Curve
- Schneider Electric A9F73202 — Acti9 iC60N 2P 2A B-curve Miniature Circuit Breaker
- Schneider Electric A9F73203 — Miniature Circuit Breaker (MCB) Acti9 iC60N 2P 3A B-Curve
- Schneider Electric A9F73204 — Acti9 iC60N Miniature Circuit Breaker 2P 4A B-curve
- Schneider Electric A9F73210 — Miniature Circuit Breaker (MCB) iC60N, 2P, 10A, B Curve
Specifications
- Depth
- 77.5 mm
- Poles
- 1P+N
- Width
- 18 mm
- Height
- 110 mm
- Standards
- IEC 61009-1, BS EN 61009-1, IEC 61009-2-2, AS/NZS 61009.1
- Net weight
- 205 g
- Mounting mode
- Clip-on
- Rated current
- 25 A
- Surge current
- 250 A
- Tripping curve
- C
- Mounting support
- DIN rail
- Network frequency
- 50 Hz
- Breaking capacity Icn
- 10 kA
- IP degree of protection
- IP20
- Manufacturer order code
- A9D11825
- Manufacturer part number
- A9D11825
- Earth-leakage sensitivity
- 30 mA
- Rated operational voltage
- 230/240 V AC
- Rated insulation voltage Ui
- 400 V AC
- Earth-leakage protection class
- Type A
- Rated service breaking capacity Ics
- 7.5 kA
- Rated impulse withstand voltage Uimp
- 4 kV
- Ambient air temperature for operation
- -15…60 °C
