A9R21440

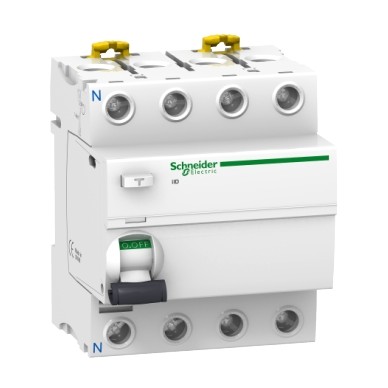

Schneider Electric A9R21440 Acti9 iID Residual Current Circuit Breaker. This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 4P circuit breaker with 40A In rated current, a sensitivity of 30mA with a A type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with EN/IEC 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. The mechanical endurance is going up to 20000 cycles and electrical endurance going up to 15000 cycles. The Ue operational voltage is 380VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 91mm x (D) 73.5mm. The weight is 0.37kg. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.
Details
- Brand: Schneider Electric
- Part number: A9R21440
- Series: Acti9
- Category: RCCB / RCD
Related Schneider Electric parts
- Schneider Electric A9R21463 — Acti9 iID
- Schneider Electric A9D11825 — Acti9 iC60 RCBO
- Schneider Electric A9D11806 — Acti9 iC60H RCBO 1P+N 6A C 30mA 240V
- Schneider Electric A9D11810 — Residual current breaker with overcurrent protection (RCBO), Acti9 iC60H RCBO, 1P + N, 10A, 30mA, A type, 10000A
- Schneider Electric A9F74210 — Miniature Circuit Breaker iC60N 2P 10A C
- Schneider Electric A9F74225 — Acti9 iC60N Miniature Circuit Breaker 2P 25A C-Curve
- Schneider Electric A9F74220 — Acti9 iC60N Miniature Circuit-Breaker 2P 20A C-curve
- Schneider Electric A9F73101 — Acti9 iC60N Miniature Circuit Breaker 1P 1A B-Curve
- Schneider Electric A9F73110 — Acti9 iC60N Miniature Circuit Breaker, 1P 10A B-Curve
- Schneider Electric A9F73120 — Miniature Circuit Breaker Acti9 iC60N 1P 20A B-Curve
- Schneider Electric A9F73202 — Acti9 iC60N 2P 2A B-curve Miniature Circuit Breaker
- Schneider Electric A9F73203 — Miniature Circuit Breaker (MCB) Acti9 iC60N 2P 3A B-Curve
Specifications
- Poles
- 4P
- Mounting
- DIN rail
- Network type
- AC
- Rated current
- 40 A
- Network frequency
- 50/60 Hz
- Mechanical durability
- 20000 cycles
- IP degree of protection
- IP20
- Manufacturer order code
- A9R21440
- Manufacturer part number
- A9R21440
- Rated insulation voltage
- 500 V AC
- Earth-leakage sensitivity
- 30 mA
- Rated operational voltage
- 380...415 V AC
- Earth-leakage protection class
- Type A
- Rated impulse withstand voltage
- 6 kV
