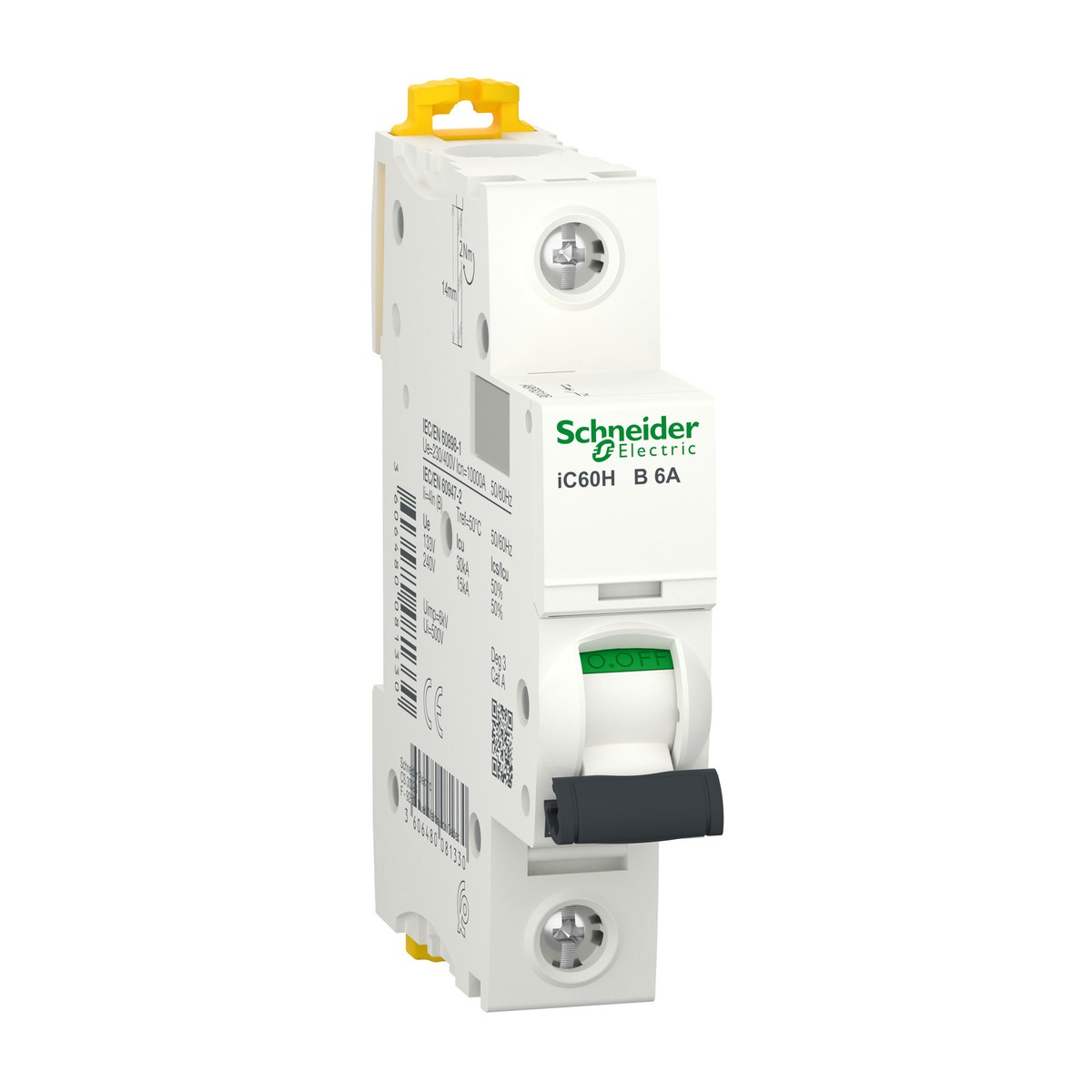

Schneider Electric A9F83106 Miniature Circuit Breaker (MCB), Acti9 iC60H, 1P, 6A, B curve. The Schneider Electric A9F83106 is a robust Acti9 iC60H Miniature Circuit Breaker (MCB) designed for reliable protection in final distribution circuits. This 1-pole, 6A B-curve MCB provides essential thermal-magnetic overcurrent and short-circuit protection for both AC and DC networks. Engineered to meet stringent standards like EN/IEC 60898-1 and EN/IEC 60947-2, it boasts a breaking capacity of 10000 A Icn at 230 V AC and 15 kA Icu at 220-240 V AC, ensuring safety and continuity of service. Ideal for the electrical infrastructure prevalent across Egypt and the Gulf, the Schneider Electric A9F83106 supports common operational voltages, including 220-240 V AC 50/60 Hz. Its DIN-rail clip-on mounting makes installation straightforward in diverse environments, from commercial buildings to industrial facilities. Typical applications span crucial sectors such as building services, water treatment plants, and light industrial settings within food and beverage or textiles, where reliable power distribution is paramount. Featuring a compact 18mm width and IP20 protection, this MCB is a dependable choice for modern electrical systems.
Details
- Brand: Schneider Electric
- Part number: A9F83106
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F83120 — Miniature Circuit Breaker iC60H 1P 20A B-Curve
- Schneider Electric A9F83132 — Acti9 iC60H 1P 32A B-Curve Miniature Circuit Breaker
- Schneider Electric A9F83202 — Miniature Circuit Breaker (MCB) 2P 2A B-curve
- Schneider Electric A9F83204 — Miniature Circuit Breaker iC60H 2P 4A B-Curve
- Schneider Electric A9F83210 — Miniature Circuit Breaker (MCB), 2P, 10A, B-curve
- Schneider Electric A9F83232 — Miniature Circuit Breaker 2P 32A B-Curve
- Schneider Electric A9F83313 — Miniature Circuit Breaker 3P 13A B Curve
- Schneider Electric A9F83316 — Miniature Circuit Breaker Acti9 iC60H 3P 16A B-curve
- Schneider Electric A9F83325 — Miniature circuit breaker, iC60H, 3P, 25A, B curve, 10000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
- Schneider Electric A9F83332 — Acti9 iC60H Miniature Circuit Breaker 3P 32A B-curve 10000A/15kA
- Schneider Electric A9F83363 — Acti9 iC60H Miniature Circuit Breaker 3P 63A B-curve
- Schneider Electric A9F83406 — Miniature Circuit Breaker (MCB) Acti9 iC60H 4P 6A B-Curve
Specifications
- Curve code
- B
- Net weight
- 0.215 Kg
- Network type
- AC, DC
- Limitation class
- 3 conforming to EN/IEC 60898-1
- Mounting support
- 35 mm DIN rail
- Poles description
- 1P
- Tightening torque
- 2 N.M top or bottom
- [In] rated current
- 6 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- Dimensions (H x W x D)
- 85 mm x 18 mm x 78.5 mm
- Connections - terminals
- Single terminal (top or bottom), for 1 cable(s), 1…25 mm² rigid, 1…16 mm² flexible (copper)
- IP degree of protection
- IP20 conforming to IEC 60529
- Magnetic tripping limit
- 4 x In +/- 20 %
- Manufacturer part number
- A9F83106
- Number of protected poles
- 1
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12...60 V AC 50/60 Hz, 100...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 12...60 V DC, 60...72 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 230 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 220...240 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
- [Ics] rated service breaking capacity
- 7.5 KA 50 % x Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
