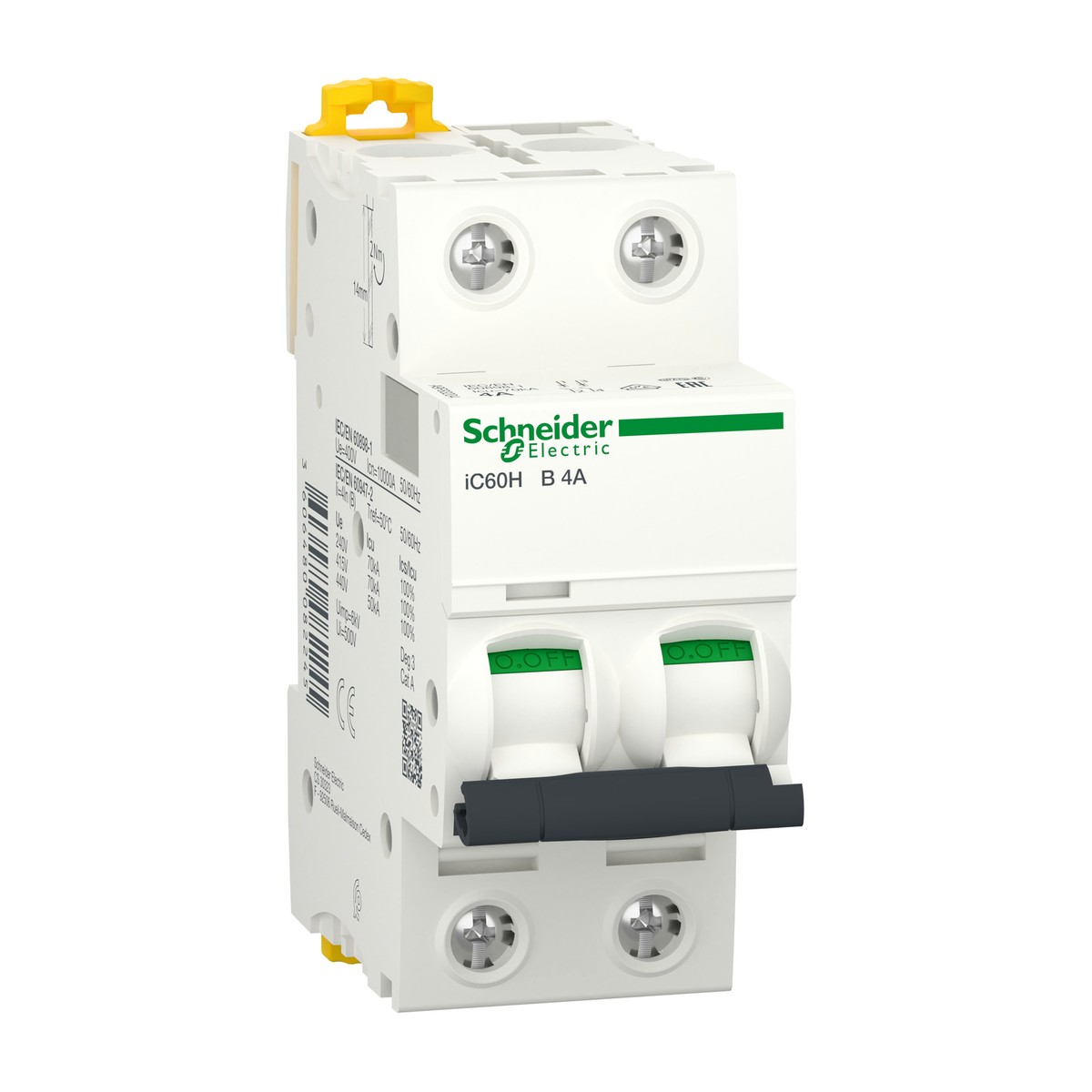

Schneider Electric A9F83204 Miniature Circuit Breaker iC60H 2P 4A B-Curve. The Schneider Electric A9F83204 Acti9 iC60H Miniature Circuit Breaker offers reliable protection for electrical distribution circuits across Egypt and the Gulf. Designed for versatile AC and DC networks, this 2-pole, 4A MCB features a B-curve thermal-magnetic trip unit, providing effective overload and short-circuit protection. It boasts a robust breaking capacity of 10000A (IEC/EN 60898-1) at 400V AC and up to 70KA (IEC/EN 60947-2) at 220-415V AC, alongside 15KA at 125V DC, ensuring high safety standards compliant with EN/IEC 60898-1 and EN/IEC 60947-2. The A9F83204 is suitable for isolation, DIN-rail mountable, and offers an IP20 degree of protection (IP40 in modular enclosure), with an operating temperature range of -35 to 70°C. Its robust construction ensures mechanical durability of 20000 cycles. This dependable component is commonly utilized in building services, water treatment facilities, food and beverage processing plants, and other industrial settings requiring precise circuit protection for final distribution circuits.
Details
- Brand: Schneider Electric
- Part number: A9F83204
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F83210 — Miniature Circuit Breaker (MCB), 2P, 10A, B-curve
- Schneider Electric A9F83232 — Miniature Circuit Breaker 2P 32A B-Curve
- Schneider Electric A9F83313 — Miniature Circuit Breaker 3P 13A B Curve
- Schneider Electric A9F83316 — Miniature Circuit Breaker Acti9 iC60H 3P 16A B-curve
- Schneider Electric A9F83325 — Miniature circuit breaker, iC60H, 3P, 25A, B curve, 10000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
- Schneider Electric A9F83332 — Acti9 iC60H Miniature Circuit Breaker 3P 32A B-curve 10000A/15kA
- Schneider Electric A9F83363 — Acti9 iC60H Miniature Circuit Breaker 3P 63A B-curve
- Schneider Electric A9F83406 — Miniature Circuit Breaker (MCB) Acti9 iC60H 4P 6A B-Curve
- Schneider Electric A9F83432 — Miniature Circuit Breaker iC60H 4P 32A B-curve
- Schneider Electric A9F84102 — Acti9 iC60H MCB, 1P, 2A, C-Curve
- Schneider Electric A9F84103 — Miniature Circuit Breaker Acti9 iC60H
- Schneider Electric A9F84120 — Acti9 iC60H Miniature Circuit Breaker 1P 20A C-curve
Specifications
- Curve code
- B
- Net weight
- 0.25 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Poles description
- 2P
- [In] rated current
- 4 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal (top or bottom) , for 1 cable(s) , 1…25 mm², rigid, copper
- IP degree of protection
- IP20 (IP40 in modular enclosure)
- Manufacturer part number
- A9F83204
- Number of protected poles
- 2
- Suitability for isolation
- Yes
- [Ue] rated operational voltage AC
- 12...440 V 50/60 Hz
- [Ue] rated operational voltage DC
- <= 125 V
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 400 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
- Breaking capacity (IEC/EN 60947-2) at <= 125V DC
- 15 KA Icu
- Breaking capacity (IEC/EN 60947-2) at 220-240V AC
- 70 KA Icu
- Breaking capacity (IEC/EN 60947-2) at 380-415V AC
- 70 KA Icu
