A9F83202

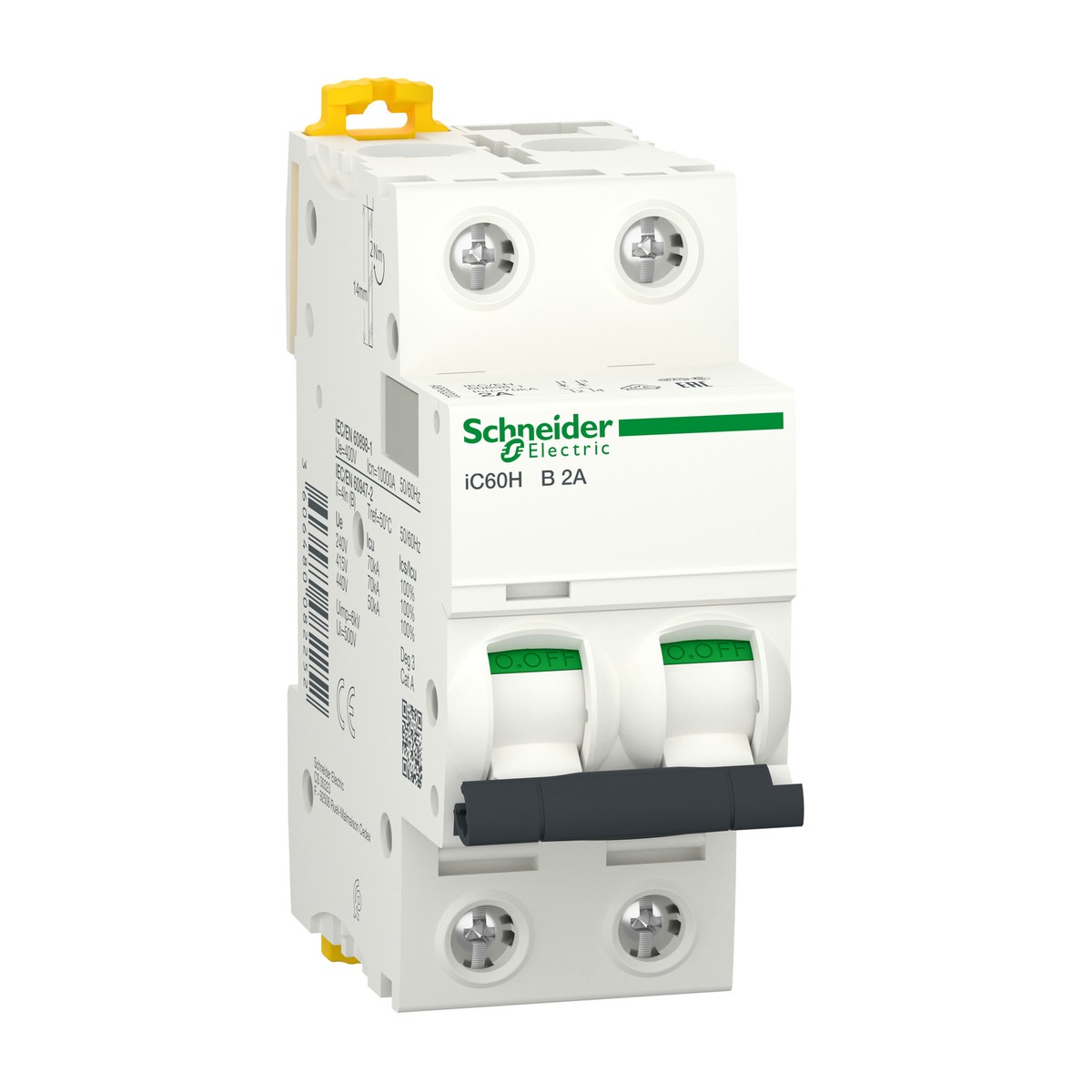

Schneider Electric A9F83202 Miniature Circuit Breaker (MCB) 2P 2A B-curve. The Schneider Electric A9F83202 is a robust 2-pole, 2-ampere Miniature Circuit Breaker (MCB) from the Acti9 iC60H series, designed for reliable circuit protection in final distribution applications. This B-curve thermal-magnetic MCB offers excellent overcurrent and short-circuit protection for both AC and DC networks, supporting operational voltages from 12V AC to 440V AC (50/60 Hz) and up to 125V DC. It boasts a substantial breaking capacity of 70 kA Icu at 220-240V AC and 380-415V AC (EN/IEC 60947-2), and 10000 A Icn at 400V AC (EN/IEC 60898-1), ensuring high performance under fault conditions. The DIN-rail mountable Schneider Electric A9F83202 is ideal for diverse industrial and commercial settings across Egypt and the Gulf, including critical infrastructure in oil and gas, water treatment, cement, and building services, as well as general power distribution panels. Its IP20 protection (IP40 in enclosure) and wide operating temperature range (-35 to 70 °C) make it suitable for challenging environments. For trusted electrical protection, request a quote for the A9F83202 today.
Details
- Brand: Schneider Electric
- Part number: A9F83202
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F83204 — Miniature Circuit Breaker iC60H 2P 4A B-Curve
- Schneider Electric A9F83210 — Miniature Circuit Breaker (MCB), 2P, 10A, B-curve
- Schneider Electric A9F83232 — Miniature Circuit Breaker 2P 32A B-Curve
- Schneider Electric A9F83313 — Miniature Circuit Breaker 3P 13A B Curve
- Schneider Electric A9F83316 — Miniature Circuit Breaker Acti9 iC60H 3P 16A B-curve
- Schneider Electric A9F83325 — Miniature circuit breaker, iC60H, 3P, 25A, B curve, 10000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
- Schneider Electric A9F83332 — Acti9 iC60H Miniature Circuit Breaker 3P 32A B-curve 10000A/15kA
- Schneider Electric A9F83363 — Acti9 iC60H Miniature Circuit Breaker 3P 63A B-curve
- Schneider Electric A9F83406 — Miniature Circuit Breaker (MCB) Acti9 iC60H 4P 6A B-Curve
- Schneider Electric A9F83432 — Miniature Circuit Breaker iC60H 4P 32A B-curve
- Schneider Electric A9F84102 — Acti9 iC60H MCB, 1P, 2A, C-Curve
- Schneider Electric A9F84103 — Miniature Circuit Breaker Acti9 iC60H
Specifications
- Depth
- 78.5 Mm
- Width
- 36 Mm
- Height
- 85 Mm
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- B
- Net weight
- 0.25 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Breaking capacity
- 70 KA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2, 70 KA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2, 10000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- [In] rated current
- 2 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- IP degree of protection
- IP20 conforming to IEC 60529, IP40 in modular enclosure (Insulation class II) conforming to IEC 60529
- Manufacturer part number
- A9F83202
- Suitability for isolation
- Yes conforming to EN/IEC 60898-1, Yes conforming to EN/IEC 60947-2
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 125 V DC
- Ambient air temperature for operation
- -35…70 °C
