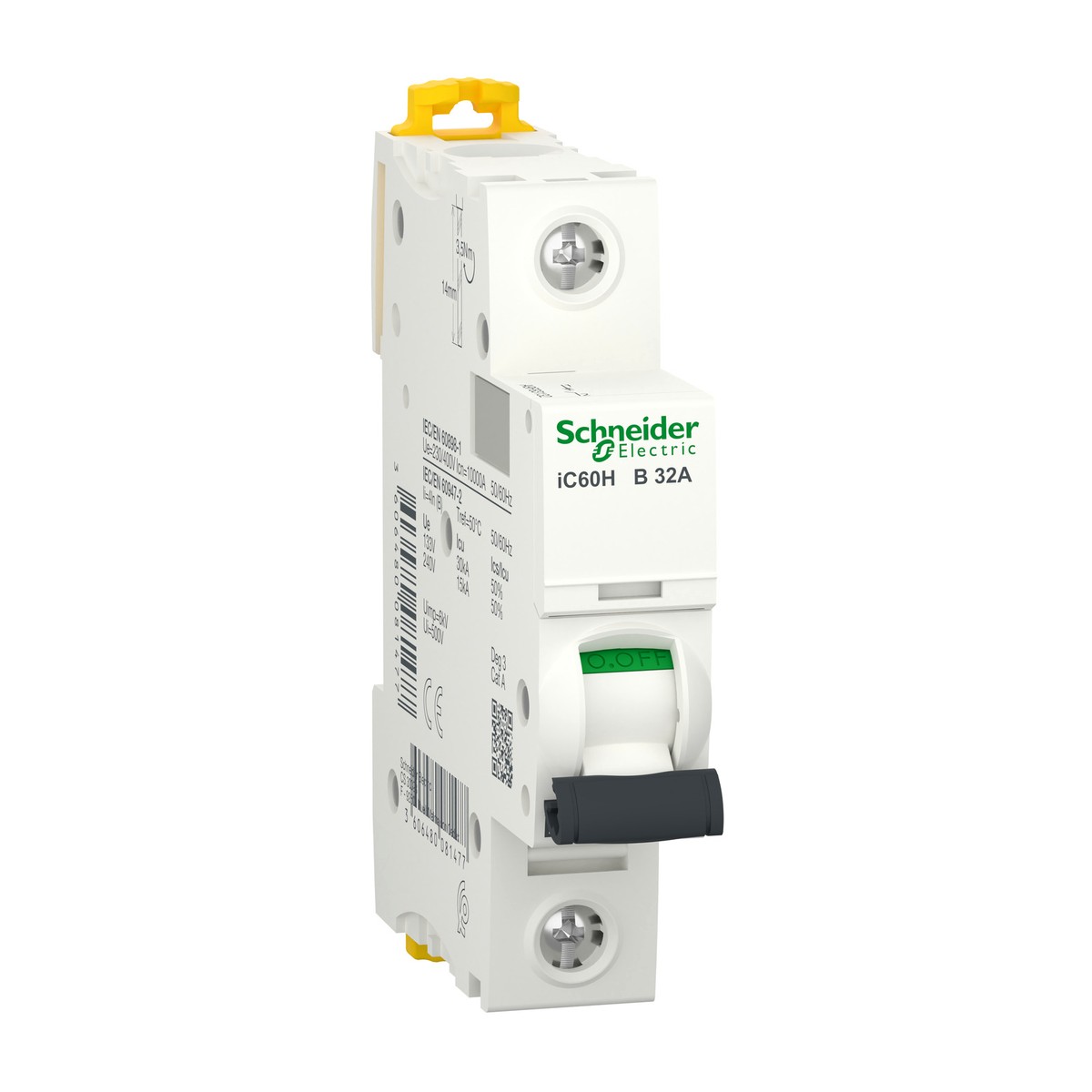

Schneider Electric A9F83132 Acti9 iC60H 1P 32A B-Curve Miniature Circuit Breaker. The Schneider Electric A9F83132 is a robust Acti9 iC60H Miniature Circuit Breaker (MCB), engineered for reliable protection of final distribution circuits. This 1-pole, 32A, B-curve thermal-magnetic MCB offers versatile application across both AC and DC networks, making it a dependable choice for diverse electrical installations. It supports a wide range of operational voltages, notably 220-240 V AC at 50/60 Hz, perfectly suiting standard electrical systems in Egypt and the Gulf. Key safety features include an impressive breaking capacity of 10000 A Icn at 230 V AC (IEC/EN 60898-1) and 15 kA Icu at 220-240 V AC (IEC/EN 60947-2), along with suitability for isolation. Designed for easy integration, it features clip-on mounting to a 35 mm DIN rail and convenient single terminal connections for wires up to 35 mm². With an IP20 rating and an operational temperature range of -35…70 °C, the Schneider Electric A9F83132 ensures consistent performance in demanding environments. This MCB is essential for safeguarding electrical systems in critical sectors such as cement, oil and gas, water treatment, food and beverage, textiles, and general building services across the region.
Details
- Brand: Schneider Electric
- Part number: A9F83132
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
