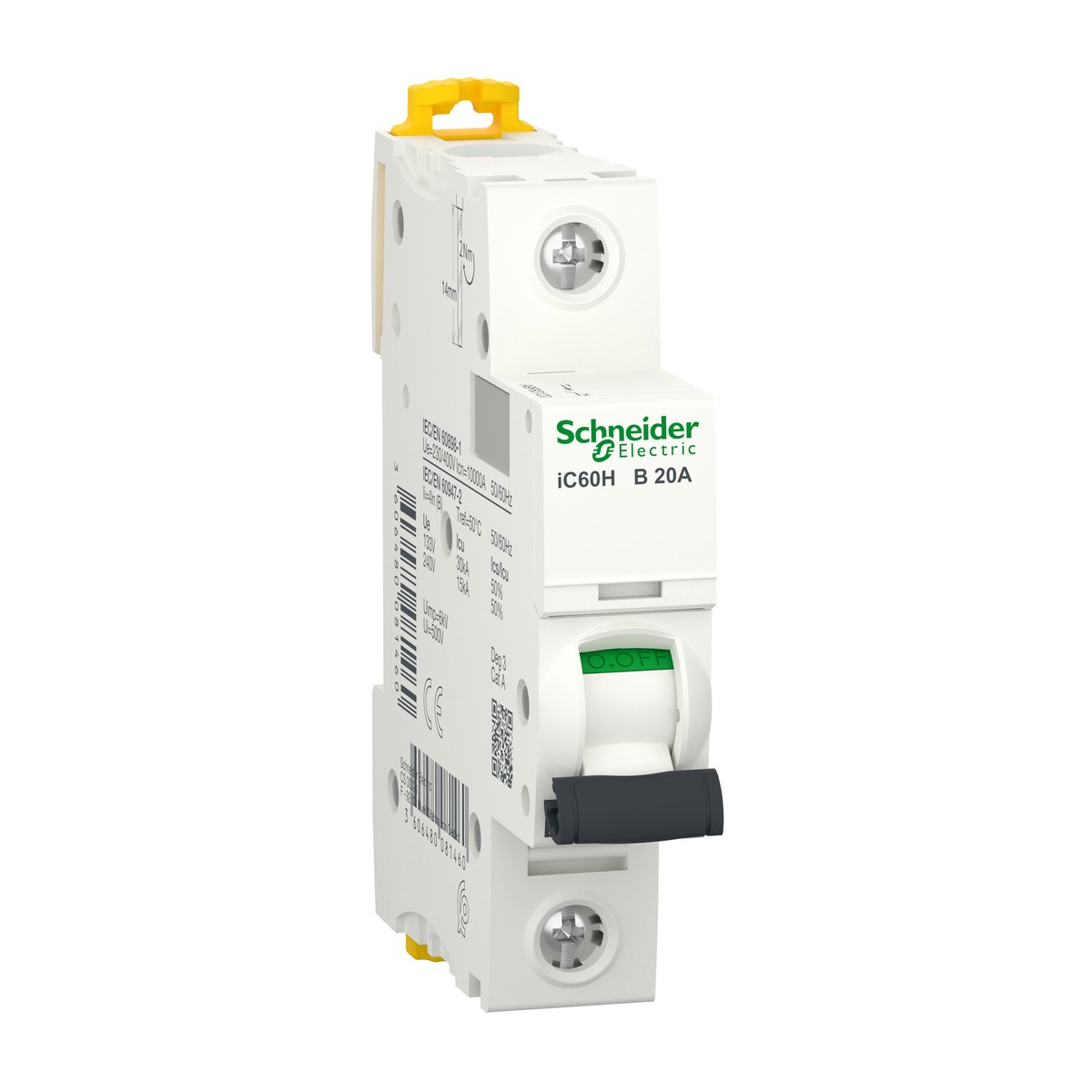

Schneider Electric A9F83120 Miniature Circuit Breaker iC60H 1P 20A B-Curve. The Schneider Electric A9F83120 is a high-performance Acti9 iC60H Miniature Circuit Breaker (MCB) designed for reliable protection in final distribution circuits. This 1-pole, 20 Ampere, B-curve thermal-magnetic breaker offers robust overcurrent and short-circuit protection for both AC and DC networks. It boasts impressive breaking capacities, including 10000 A Icn conforming to IEC/EN 60898-1 at 230 V AC and 15 kA Icu conforming to IEC/EN 60947-2 at 220-240 V AC. Compatible with 50/60 Hz networks, it supports operational voltages up to 240 V AC and 72 V DC. Ideal for 35mm DIN rail mounting, its compact 18mm width makes it suitable for diverse panel layouts. With an IP20 rating and an operational temperature range of -35 to 70 °C, it ensures reliable operation in demanding environments. This Schneider Electric MCB is widely utilized across various industrial sectors in Egypt and the Gulf, including critical applications in building services, water treatment plants, oil and gas facilities, and food and beverage manufacturing, ensuring safety and operational continuity for essential electrical systems.
Details
- Brand: Schneider Electric
- Part number: A9F83120
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F83132 — Acti9 iC60H 1P 32A B-Curve Miniature Circuit Breaker
- Schneider Electric A9F83202 — Miniature Circuit Breaker (MCB) 2P 2A B-curve
- Schneider Electric A9F83204 — Miniature Circuit Breaker iC60H 2P 4A B-Curve
- Schneider Electric A9F83210 — Miniature Circuit Breaker (MCB), 2P, 10A, B-curve
- Schneider Electric A9F83232 — Miniature Circuit Breaker 2P 32A B-Curve
- Schneider Electric A9F83313 — Miniature Circuit Breaker 3P 13A B Curve
- Schneider Electric A9F83316 — Miniature Circuit Breaker Acti9 iC60H 3P 16A B-curve
- Schneider Electric A9F83325 — Miniature circuit breaker, iC60H, 3P, 25A, B curve, 10000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
- Schneider Electric A9F83332 — Acti9 iC60H Miniature Circuit Breaker 3P 32A B-curve 10000A/15kA
- Schneider Electric A9F83363 — Acti9 iC60H Miniature Circuit Breaker 3P 63A B-curve
- Schneider Electric A9F83406 — Miniature Circuit Breaker (MCB) Acti9 iC60H 4P 6A B-Curve
- Schneider Electric A9F83432 — Miniature Circuit Breaker iC60H 4P 32A B-curve
Specifications
- Width
- 18 Mm
- Curve code
- B
- Network type
- AC, DC
- Rated current
- 20 A
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 1P
- Connection terminals
- Rigid 1…25 mm², flexible 1…16 mm²
- Trip unit technology
- Thermal-magnetic
- IP degree of protection
- IP20
- Manufacturer part number
- A9F83120
- Suitability for isolation
- Yes
- Rated operational voltage (AC)
- 220-240 V AC 50/60 Hz
- Rated operational voltage (DC)
- 12-72 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 230 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 220-240 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
