A9F75363

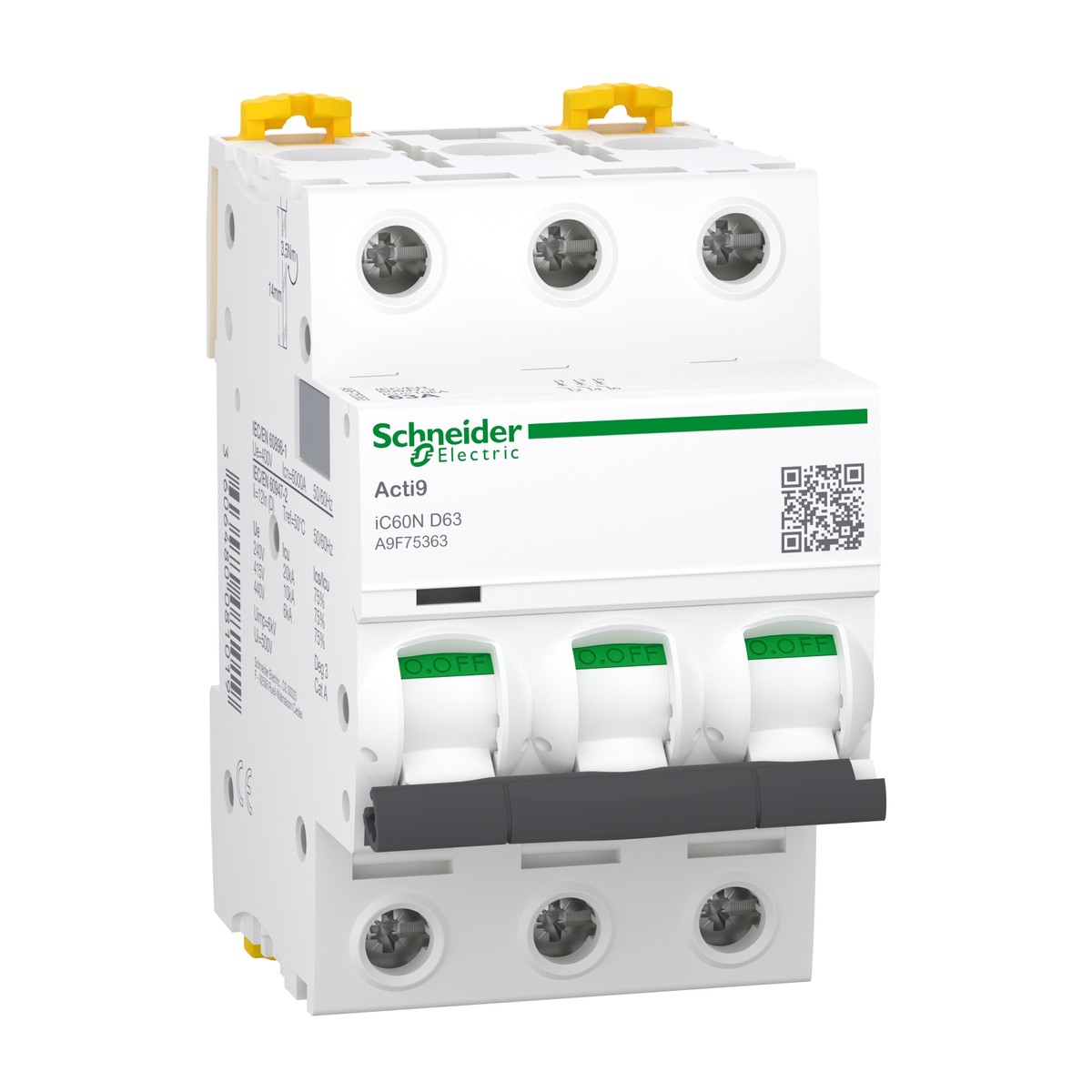

Schneider Electric A9F75363 Miniature Circuit Breaker Acti9 iC60N 3P 63A D-Curve. The Schneider Electric A9F75363 is a robust Acti9 iC60N Miniature Circuit Breaker (MCB), engineered to provide reliable protection for final distribution circuits. This 3-pole, 63A D-curve MCB features thermal-magnetic trip unit technology, ensuring effective overload and short-circuit protection for both AC and DC networks. It boasts a breaking capacity of 10kA Icu at 380-415V AC (conforming to EN/IEC 60947-2) and 6000A Icn at 400V AC (conforming to EN/IEC 60898-1), making it suitable for demanding electrical environments. Designed for convenient 35mm DIN rail mounting, the A9F75363 also offers suitability for isolation and an IP20 degree of protection, with an extended operating temperature range of -35 to 70 °C. Its versatility and robust design make it an excellent choice for critical infrastructure and industrial applications across Egypt and the Gulf, including sectors like cement production, oil & gas, water treatment, food & beverage, and textiles, as well as commercial building services.
Details
- Brand: Schneider Electric
- Part number: A9F75363
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F75410 — Acti9 iC60N Miniature Circuit Breaker 4P 10A D-Curve
- Schneider Electric A9F75463 — Miniature Circuit Breaker (MCB) Acti9 iC60N 4P 63A D-Curve
- Schneider Electric A9F77106 — Miniature Circuit Breaker Acti9 iC60N 1P 6A C-Curve
- Schneider Electric A9F77120 — Acti9 iC60N Miniature Circuit Breaker 1P 20A C-curve
- Schneider Electric A9F77125 — Miniature Circuit Breaker Acti9 iC60N 1P 25A C-curve
- Schneider Electric A9F77132 — MCB Acti9 iC60N 1P 32A C-curve
- Schneider Electric A9F77225 — Miniature Circuit Breaker Acti9 iC60N 2P 25A C-Curve
- Schneider Electric A9F77232 — Miniature Circuit Breaker, 2P, 32A, C Curve
- Schneider Electric A9F77240 — Miniature circuit breaker MCB, Acti9 iC60N, 2P 40A C-curve
- Schneider Electric A9F77310 — Miniature Circuit Breaker iC60N 3P 10A C-curve
- Schneider Electric A9F77325 — Miniature circuit breaker iC60N 3P 25A C-curve
- Schneider Electric A9F77332 — MCB, Acti9 iC60N, 3P, 32A, C Curve
Specifications
- Curve code
- D
- Net weight
- 0.375 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Poles description
- 3P
- [In] rated current
- 63 A
- Trip unit technology
- Thermal-magnetic
- Dimensions (H x W x D)
- 85 Mm x 54 Mm x 78.5 Mm
- IP degree of protection
- IP20 (IP40 in modular enclosure)
- Manufacturer part number
- A9F75363
- Suitability for isolation
- Yes
- Max terminal wire size (rigid)
- 1…35 mm²
- [Ue] rated operational voltage AC
- 12...440 V AC 50/60 Hz
- [Ue] rated operational voltage DC
- <= 180 V DC
- Ambient air temperature for operation
- -35…70 °C
- Breaking capacity at 400V AC (EN/IEC 60898-1)
- 6000 A Icn
- Breaking capacity at 380-415V AC (EN/IEC 60947-2)
- 10 KA Icu
