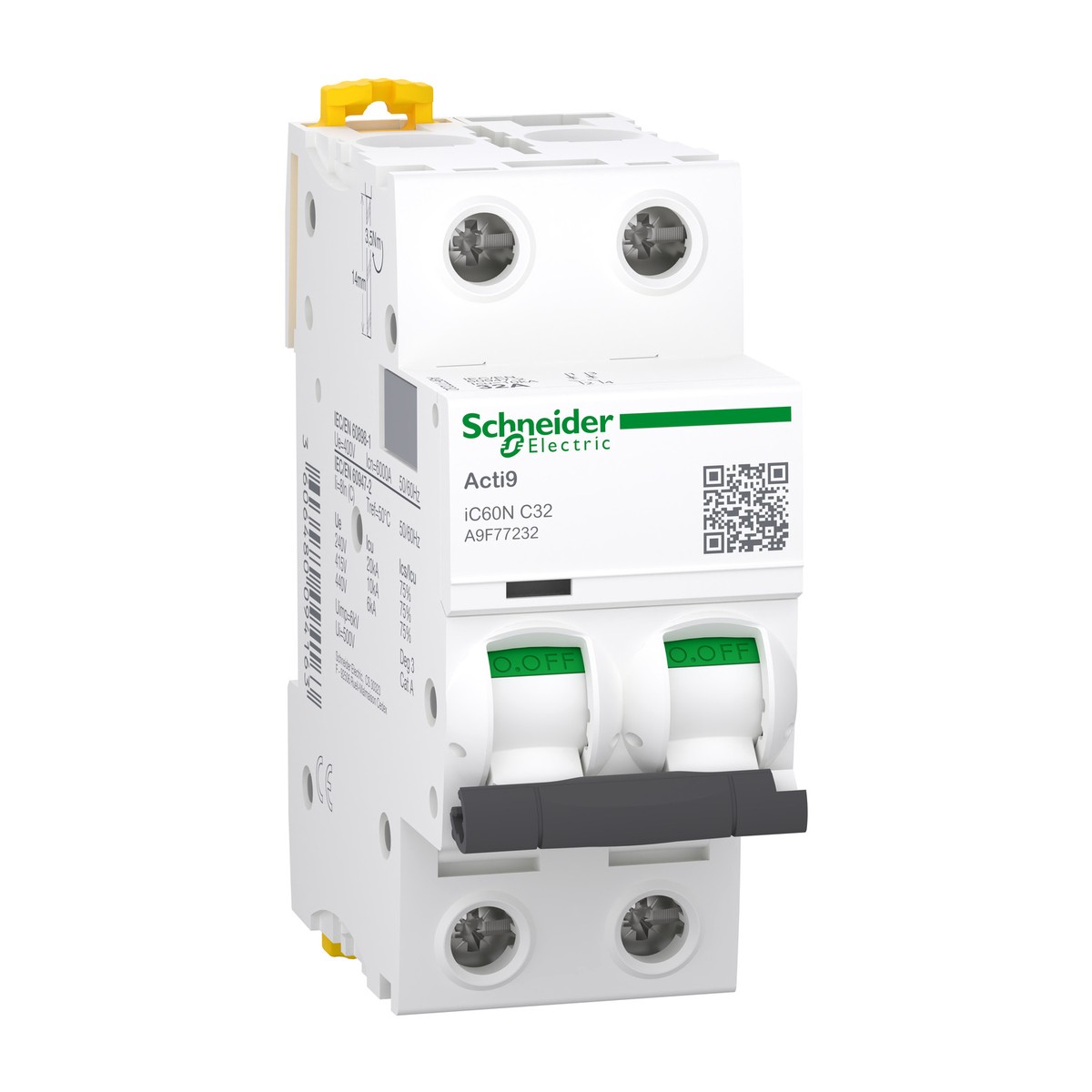

Schneider Electric A9F77232 Miniature Circuit Breaker, 2P, 32A, C Curve. The Schneider Electric A9F77232 is a robust Acti9 iC60N Miniature Circuit Breaker (MCB), engineered for reliable protection in final distribution circuits. This 2-pole device is rated at 32 A with a C tripping curve, utilizing thermal-magnetic technology for effective overload and short-circuit protection. It offers versatile operation on both AC and DC networks, supporting a wide range of operational voltages including 220-240 V AC, 380-415 V AC, and up to 125 V DC, making it highly adaptable for various installations. Key breaking capacities include 6000 A Icn at 400 V AC (IEC/EN 60898-1) and 10 kA Icu at 380-415 V AC (IEC/EN 60947-2). Designed for easy installation, it features clip-on 35 mm DIN rail mounting and accommodates flexible or rigid copper cables up to 35 mm². With an IP20 degree of protection and operational temperature range of -35 to 70 °C, the A9F77232 is suitable for demanding industrial environments. It serves essential safety roles in sectors like oil and gas, water treatment, building services, and general manufacturing in Egypt and the Gulf.
Details
- Brand: Schneider Electric
- Part number: A9F77232
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F77240 — Miniature circuit breaker MCB, Acti9 iC60N, 2P 40A C-curve
- Schneider Electric A9F77310 — Miniature Circuit Breaker iC60N 3P 10A C-curve
- Schneider Electric A9F77325 — Miniature circuit breaker iC60N 3P 25A C-curve
- Schneider Electric A9F77332 — MCB, Acti9 iC60N, 3P, 32A, C Curve
- Schneider Electric A9F77350 — Miniature Circuit Breaker Acti9 iC60N 3P 50A C curve
- Schneider Electric A9F77406 — Acti9 iC60N Miniature Circuit Breaker 4P 6A C-Curve
- Schneider Electric A9F77432 — Acti9 iC60N MCB 4P 32A C-curve
- Schneider Electric A9F78106 — Acti9 iC60N Miniature Circuit Breaker (MCB) 1P 6A B-Curve
- Schneider Electric A9F78120 — Acti9 iC60N Miniature Circuit Breaker 1P 20A B-Curve
- Schneider Electric A9F78125 — Acti9 iC60N Miniature Circuit Breaker 1P 25A B Curve
- Schneider Electric A9F78216 — Acti9 iC60N Miniature Circuit Breaker (MCB) 2P 16A B-Curve
- Schneider Electric A9F78220 — Miniature Circuit Breaker Acti9 iC60N 2P 20A B-Curve
Specifications
- Curve code
- C
- Net weight
- 0.25 Kg
- Network type
- AC, DC
- Product name
- Acti9 iC60
- Limitation class
- 3 conforming to EN/IEC 60898-1
- Mounting support
- 35 mm DIN rail
- Device short name
- IC60N
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- Tightening torque
- 3.5 N.M top or bottom
- [In] rated current
- 32 A
- Trip unit technology
- Thermal-magnetic
- Breaking capacity (DC)
- 10 KA Icu at <= 125 V DC
- Dimensions (H x W x D)
- 85 mm x 36 mm x 78.5 mm
- Connections - terminals
- Single terminal (top or bottom) , for 1 cable(s) , 1…35 mm², rigid, copper
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F77232
- Number of protected poles
- 2
- Product or component type
- Miniature circuit-breaker
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 10 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
