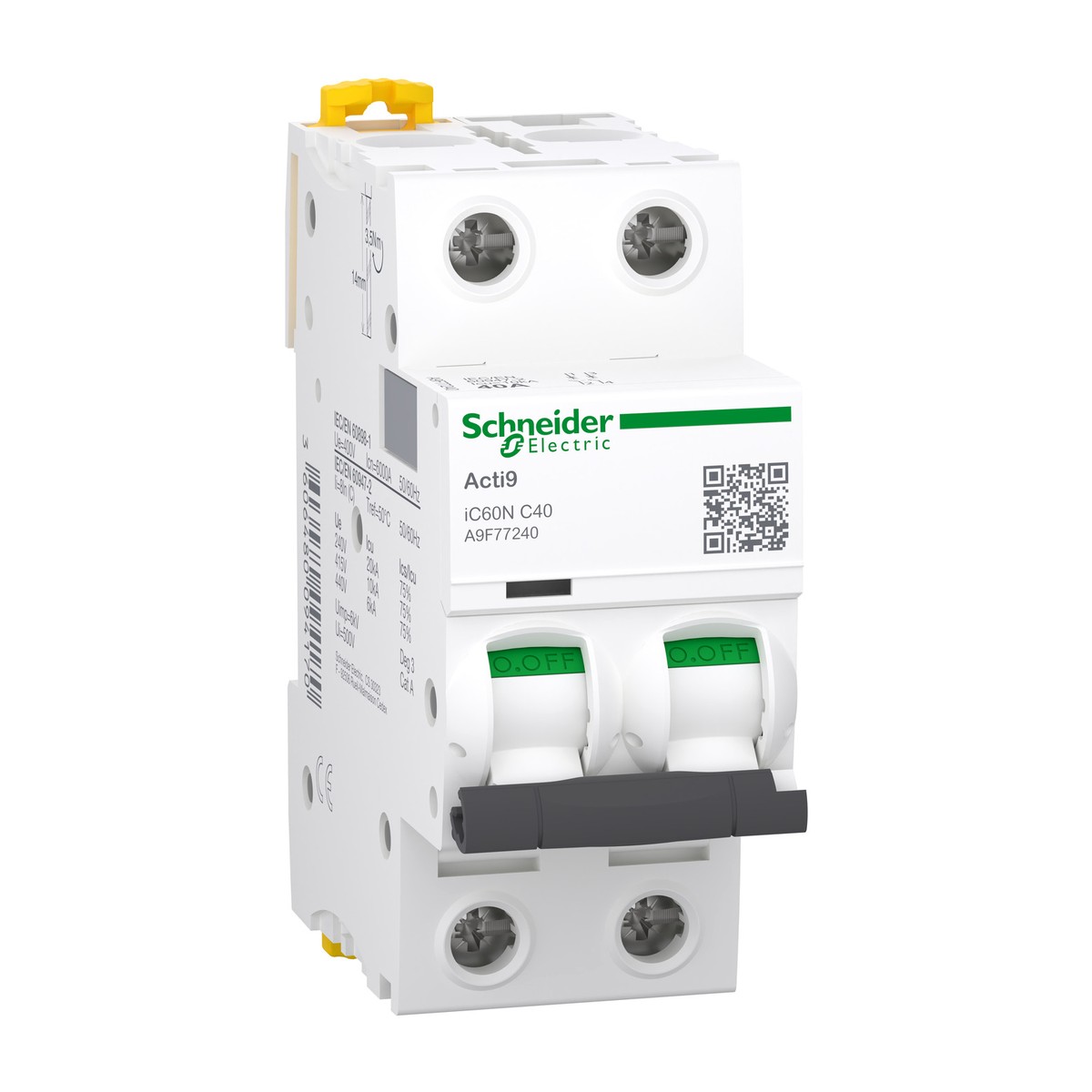

Schneider Electric A9F77240 Miniature circuit breaker MCB, Acti9 iC60N, 2P 40A C-curve. The Schneider Electric A9F77240 is a robust Acti9 iC60N Miniature Circuit Breaker (MCB) designed for reliable circuit protection in final distribution applications. This 2-pole, 40A MCB features a C-curve trip unit technology, ensuring thermal-magnetic protection against overloads and short circuits. It is engineered to operate across both AC (50/60 Hz) and DC networks, supporting operational voltages up to 440 V AC and 125 V DC. Key specifications include a breaking capacity of 6000 A Icn at 400 V AC (IEC/EN 60898-1) and 10 KA Icu at 380-415 V AC (IEC/EN 60947-2), providing high-level fault current interruption. With its DIN-rail clip-on mounting and IP20 protection, the Schneider Electric A9F77240 is an ideal solution for safeguarding electrical installations in diverse environments throughout Egypt and the Gulf. It's particularly well-suited for industrial facilities like water treatment plants, food and beverage processing, textile manufacturing, as well as commercial building services, offering essential safety and operational continuity.
Details
- Brand: Schneider Electric
- Part number: A9F77240
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F77310 — Miniature Circuit Breaker iC60N 3P 10A C-curve
- Schneider Electric A9F77325 — Miniature circuit breaker iC60N 3P 25A C-curve
- Schneider Electric A9F77332 — MCB, Acti9 iC60N, 3P, 32A, C Curve
- Schneider Electric A9F77350 — Miniature Circuit Breaker Acti9 iC60N 3P 50A C curve
- Schneider Electric A9F77406 — Acti9 iC60N Miniature Circuit Breaker 4P 6A C-Curve
- Schneider Electric A9F77432 — Acti9 iC60N MCB 4P 32A C-curve
- Schneider Electric A9F78106 — Acti9 iC60N Miniature Circuit Breaker (MCB) 1P 6A B-Curve
- Schneider Electric A9F78120 — Acti9 iC60N Miniature Circuit Breaker 1P 20A B-Curve
- Schneider Electric A9F78125 — Acti9 iC60N Miniature Circuit Breaker 1P 25A B Curve
- Schneider Electric A9F78216 — Acti9 iC60N Miniature Circuit Breaker (MCB) 2P 16A B-Curve
- Schneider Electric A9F78220 — Miniature Circuit Breaker Acti9 iC60N 2P 20A B-Curve
- Schneider Electric A9F78225 — Acti9 iC60N Miniature Circuit Breaker 2P 25A B-Curve
Specifications
- Depth
- 78.5 Mm
- Width
- 36 Mm
- Height
- 85 Mm
- Curve code
- C
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- Tightening torque
- 3.5 N.M top or bottom
- [In] rated current
- 40 A
- Trip unit technology
- Thermal-magnetic
- IP degree of protection
- IP20 conforming to IEC 60529, IP40 in modular enclosure (Insulation class II) conforming to IEC 60529
- Manufacturer part number
- A9F77240
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 10 KA Icu at 380-415 V AC 50/60 Hz, 10 KA Icu at <= 125 V DC
- Ambient air temperature for operation
- -35…70 °C
