A9F77332

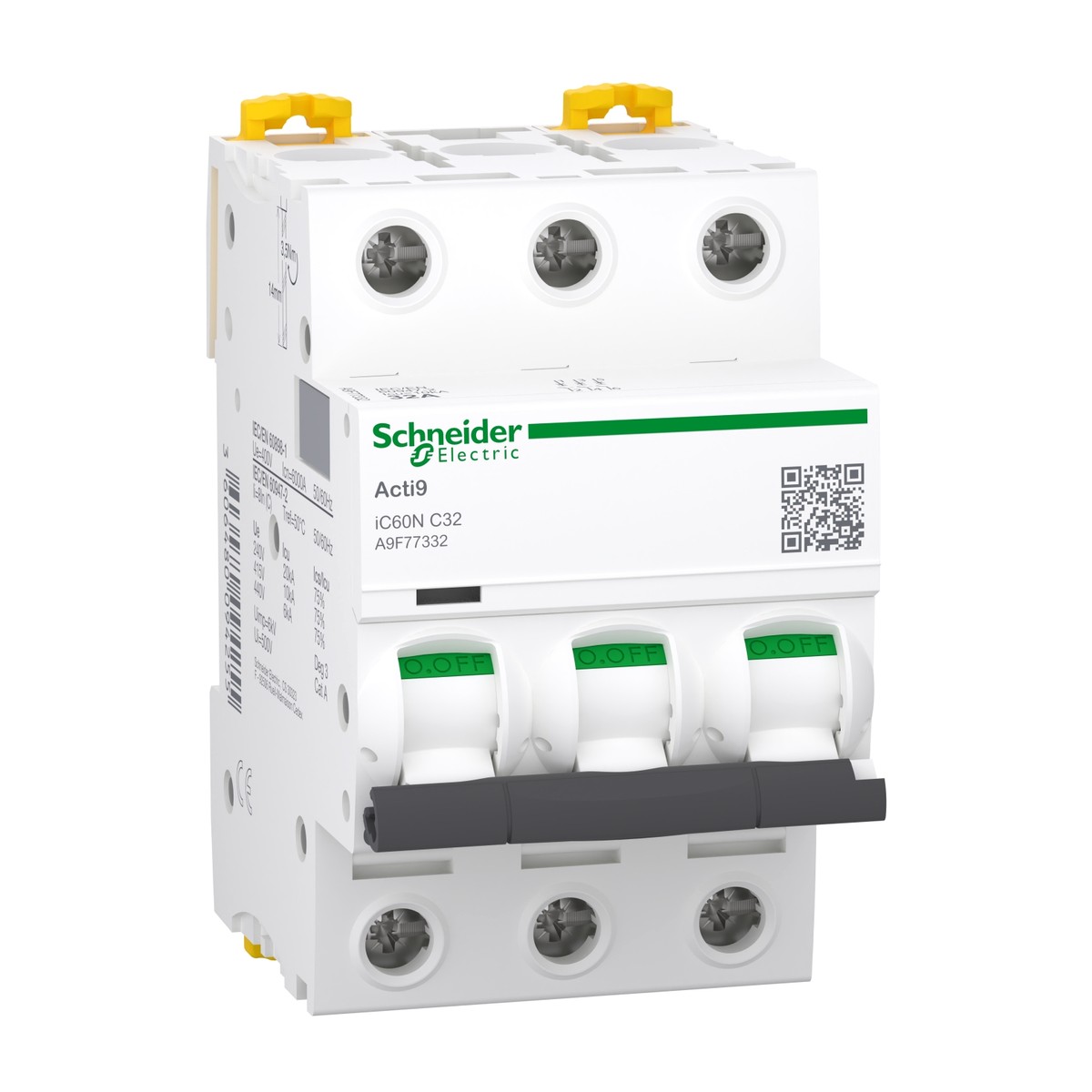

Schneider Electric A9F77332 MCB, Acti9 iC60N, 3P, 32A, C Curve. The Schneider Electric A9F77332 is a robust Miniature Circuit Breaker (MCB) from the Acti9 iC60N series, meticulously engineered for the reliable protection of final distribution circuits. This 3-pole device features a 32A rated current and a C-curve trip characteristic, making it ideal for a wide array of electrical installations. It offers significant breaking capacities, including 10kA Icu at 380-415V AC and 6000A Icn at 400V AC (conforming to EN/IEC 60947-2 and EN/IEC 60898-1 respectively), alongside impressive DC breaking capabilities up to 10kA at 180V DC. Compatible with both AC and DC networks and operating across a broad voltage range (e.g., 220-240V AC, 380-415V AC), the A9F77332 ensures reliable thermal-magnetic protection. Designed for easy 35mm DIN rail mounting, this MCB is suitable for diverse industrial and commercial applications in Egypt and the Gulf, including critical infrastructure in oil and gas, water treatment, cement, food and beverage, textiles, and general building services. For comprehensive circuit protection solutions, request a quote for the Schneider Electric A9F77332 today.
Details
- Brand: Schneider Electric
- Part number: A9F77332
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F77350 — Miniature Circuit Breaker Acti9 iC60N 3P 50A C curve
- Schneider Electric A9F77406 — Acti9 iC60N Miniature Circuit Breaker 4P 6A C-Curve
- Schneider Electric A9F77432 — Acti9 iC60N MCB 4P 32A C-curve
- Schneider Electric A9F78106 — Acti9 iC60N Miniature Circuit Breaker (MCB) 1P 6A B-Curve
- Schneider Electric A9F78120 — Acti9 iC60N Miniature Circuit Breaker 1P 20A B-Curve
- Schneider Electric A9F78125 — Acti9 iC60N Miniature Circuit Breaker 1P 25A B Curve
- Schneider Electric A9F78216 — Acti9 iC60N Miniature Circuit Breaker (MCB) 2P 16A B-Curve
- Schneider Electric A9F78220 — Miniature Circuit Breaker Acti9 iC60N 2P 20A B-Curve
- Schneider Electric A9F78225 — Acti9 iC60N Miniature Circuit Breaker 2P 25A B-Curve
- Schneider Electric A9F78320 — Miniature Circuit Breaker (MCB) Acti9 iC60N 3P 20A B-Curve
- Schneider Electric A9F78325 — Acti9 iC60N Miniature Circuit Breaker 3P 25A B-Curve
- Schneider Electric A9F78332 — Miniature Circuit Breaker (MCB), Acti9 iC60N, 3P, 32A, B Curve
Specifications
- Depth
- 78.5 Mm
- Width
- 54 Mm
- Height
- 85 Mm
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- C
- Net weight
- 0.375 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Device short name
- IC60N
- Network frequency
- 50/60 Hz
- Poles description
- 3P
- [In] rated current
- 32 A
- Trip unit technology
- Thermal-magnetic
- Mechanical durability
- 20000 Cycles
- Breaking capacity (DC)
- 10 KA Icu at <= 180 V DC conforming to EN/IEC 60947-2
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F77332
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, <= 180 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 10 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
