A9F75332

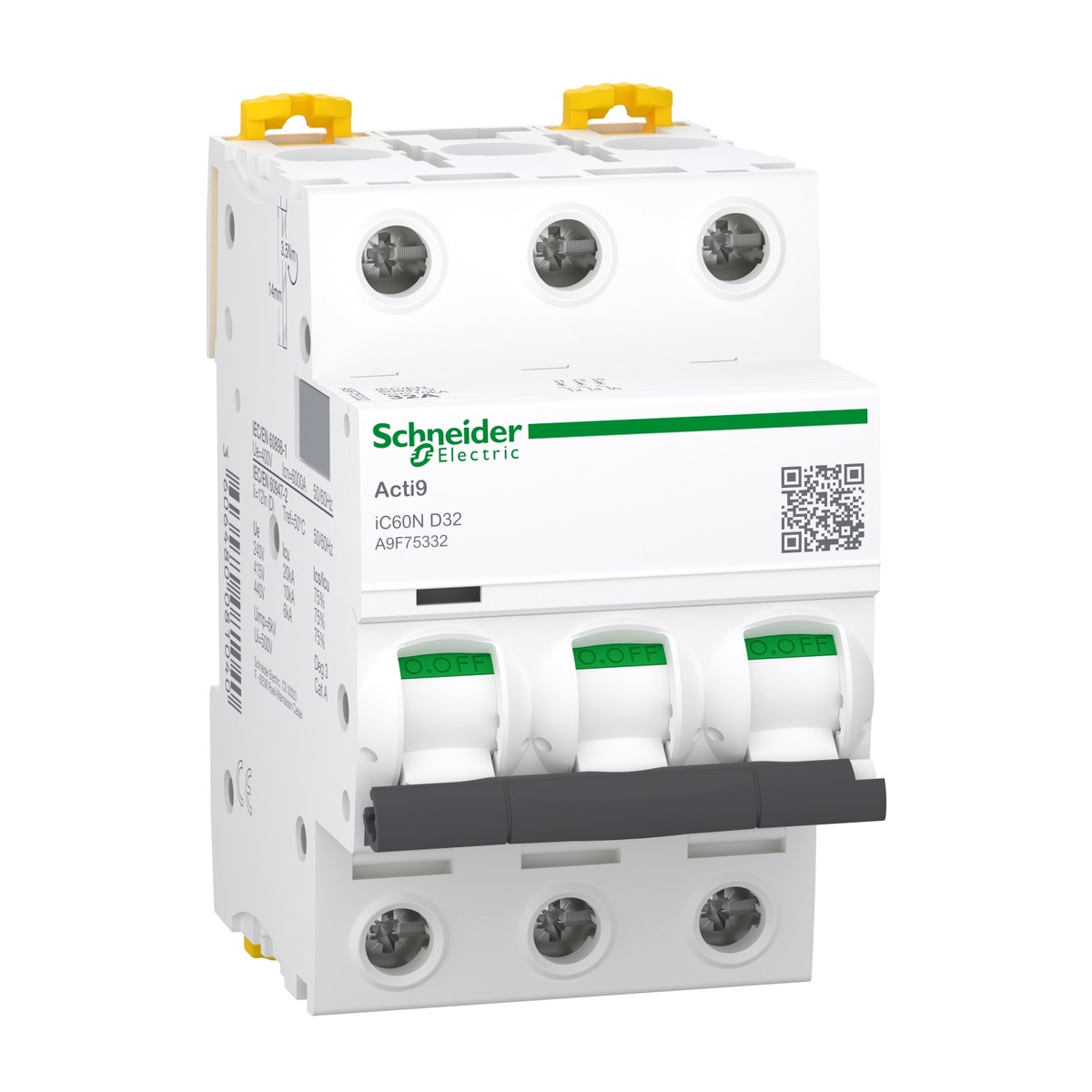

Schneider Electric A9F75332 Acti9 iC60N Miniature circuit breaker. The Schneider Electric A9F75332 Acti9 iC60N miniature circuit breaker is a robust solution for reliable overcurrent protection in final distribution circuits. This 3-pole, 32A MCB features a D tripping curve, making it ideal for applications with high inrush currents, and incorporates advanced thermal-magnetic trip unit technology. It offers impressive breaking capacities, including 10 kA Icu at 380-415 V AC and 20 kA Icu at 220-240 V AC, conforming to EN/IEC 60947-2, alongside 6000 A Icn at 400 V AC conforming to EN/IEC 60898-1. Capable of operating across 50/60 Hz AC networks and up to 180 V DC, this versatile breaker is suitable for diverse industrial and commercial environments. Its DIN-rail mounting and IP20 protection ensure straightforward installation and safety. Widely used in Egypt and the Gulf across sectors like building services, water treatment, oil and gas, and cement, the Schneider Electric A9F75332 provides dependable circuit isolation and protection. For pricing and availability, please request a quote.
Details
- Brand: Schneider Electric
- Part number: A9F75332
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F75340 — IC60N Miniature Circuit Breaker (MCB) 3P 40A D-Curve
- Schneider Electric A9F75350 — Acti9 iC60N 3P 50A D-curve MCB
- Schneider Electric A9F75363 — Miniature Circuit Breaker Acti9 iC60N 3P 63A D-Curve
- Schneider Electric A9F75410 — Acti9 iC60N Miniature Circuit Breaker 4P 10A D-Curve
- Schneider Electric A9F75463 — Miniature Circuit Breaker (MCB) Acti9 iC60N 4P 63A D-Curve
- Schneider Electric A9F77106 — Miniature Circuit Breaker Acti9 iC60N 1P 6A C-Curve
- Schneider Electric A9F77120 — Acti9 iC60N Miniature Circuit Breaker 1P 20A C-curve
- Schneider Electric A9F77125 — Miniature Circuit Breaker Acti9 iC60N 1P 25A C-curve
- Schneider Electric A9F77132 — MCB Acti9 iC60N 1P 32A C-curve
- Schneider Electric A9F77225 — Miniature Circuit Breaker Acti9 iC60N 2P 25A C-Curve
- Schneider Electric A9F77232 — Miniature Circuit Breaker, 2P, 32A, C Curve
- Schneider Electric A9F77240 — Miniature circuit breaker MCB, Acti9 iC60N, 2P 40A C-curve
Specifications
- Depth
- 78.5 Mm
- Width
- 54 Mm
- Height
- 85 Mm
- Curve code
- D
- Net weight
- 0.375 Kg
- Network type
- AC, DC
- Limitation class
- 3 conforming to EN/IEC 60898-1
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 3P
- Tightening torque
- 3.5 N.M top or bottom
- rated current [In]
- 32 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal (top or bottom), for 1 cable(s), 1…35 mm² rigid copper or 1…25 mm² flexible copper
- IP degree of protection
- IP20 conforming to IEC 60529, IP40 in modular enclosure (Insulation class II) conforming to IEC 60529
- Manufacturer part number
- A9F75332
- Number of protected poles
- 3
- Suitability for isolation
- Yes conforming to EN/IEC 60898-1, Yes conforming to EN/IEC 60947-2
- rated operational voltage [Ue]
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 180 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 10 KA Icu at 380...415 V AC 50/60 Hz, 20 KA Icu at 220...240 V AC 50/60 Hz, 10 KA Icu at <= 180 V DC
- Ambient air temperature for operation
- -35…70 °C
