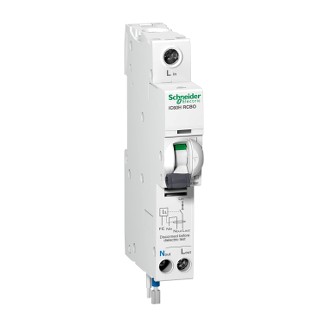

Schneider Electric A9D11816 iC60H - earth leakage circuit breaker - 1P + N - C curve - 16 A - 30 mA - 240 V. This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 16A In rated current and C tripping curve. The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard. Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. This product is compliant with BS EN 61009-1 and IEC 61009-1 standards. It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 2. The product color is white (RAL9003). The dimensions are (W) 18mm x (H) 110mm x (D) 77.5mm. The weight is 205g. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -15°C to 60°C. The storage temperature is from -40°C to 85°C.
Details
- Brand: Schneider Electric
- Part number: A9D11816
- Series: Acti 9
- Category: RCBO
Related Schneider Electric parts
- Schneider Electric A9D11832 — iC60H - earth leakage circuit breaker - 1P + N - C curve - 32 A - 30 mA - 240 V
- Schneider Electric A9D11820 — iC60H - earth leakage circuit breaker - 1P + N - C curve - 20 A - 30 mA - 240 V
- Schneider Electric A9D11825 — Acti9 iC60 RCBO
- Schneider Electric A9D11806 — Acti9 iC60H RCBO 1P+N 6A C 30mA 240V
- Schneider Electric A9D11810 — Residual current breaker with overcurrent protection (RCBO), Acti9 iC60H RCBO, 1P + N, 10A, 30mA, A type, 10000A
- Schneider Electric ATS22D17Q — Altistart 22 Soft Starter for Asynchronous Motors 4 to 7.5 kW
- Altistart 22 Soft Starter ATS22D32Q
- Altistart 22 Soft Starter ATS22D47Q for Asynchronous Motors
- Altistart 22 Soft Starter ATS22D62Q
- Schneider Electric ATS22D75Q — Altistart 22 Soft Starter for Asynchronous Motors, 230-440V, 18.5-37kW
- Altistart 22 Soft Starter ATS22D88Q
- ATS22C11Q Soft Starter for Asynchronous Motors - Control 220V, Power 230V (39kW) / 400-440V (55kW)
Specifications
- Depth
- 77.5 mm
- Poles
- 1P+N
- Width
- 18 mm
- Height
- 110 mm
- Weight
- 205 g
- Rated current
- 16 A
- Tripping curve
- C
- Breaking capacity
- 10 kA at 240 V AC
- IP degree of protection
- IP20
- Manufacturer part number
- A9D11816
- Rated insulation voltage
- 400 V AC
- Earth-leakage sensitivity
- 30 mA
- Rated operational voltage
- 240 V AC
- Earth-leakage protection class
- Type A
- Rated impulse withstand voltage
- 4 kV
