SLASLX2

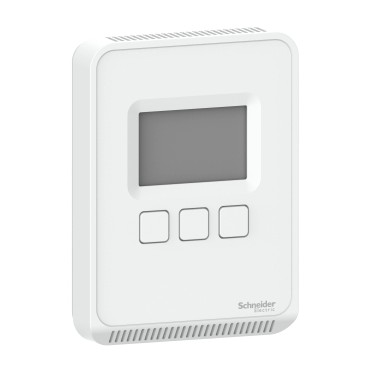

Schneider Electric SLASLX2 SpaceLogic SLA Series Sensor, Room, Humidity, Temperature, Segmented LCD, Analog Outputs with Matte White Housing. The SpaceLogic SLA Series of wall humidity sensors for rooms is a flexible multisensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is medium matte white. The user interface is assured by a LCD with 3 control buttons. This air quality sensor include a temperature and humidity elements. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.
Details
- Brand: Schneider Electric
- Part number: SLASLX2
- Series: SpaceLogic SLA Series
- Category: Industrial Sensor
Related Schneider Electric parts
- Schneider Electric C16F4 — ComPacT NSX160F Basic Frame Circuit Breaker 160A 4P without trip unit
- Schneider Electric LRD4367 — TeSys LRD thermal overload relays
- Schneider Electric METSEPM5110 — PowerLogic PM5110 Power Meter
- Schneider Electric ATV630U15N4 — ATV630 - 1.5kW/2HP - 380...480V - IP21/UL type 1 variable speed drive
- Schneider Electric ATV630U30N4 — Altivar Process ATV600 ATV630 Variable Speed Drive 3 kW
- ATV630U40N4 Variable Speed Drive
- Schneider Electric ATV630D11N4 — Variable speed drive, Altivar Process ATV600, ATV630, 11kW/15 hp, 380...480 V, IP21/UL type 1
- Schneider Electric LV432641 — Standard Motor Mechanism Module MT400/630
- Schneider Electric LV429407 — MN Undervoltage Release for ComPact NSX
- Schneider Electric 29450 — Auxiliary Contact OF/SD/SDE/SDV, 1 C/O, Spring Terminals
- Schneider Electric ATV320D15N4C — Altivar Machine ATV320 Variable Speed Drive 15kW
- Schneider Electric ATV320U07N4C — variable speed drive ATV320 - 0.75kW - 380...500V - 3 phase - compact
Specifications
- Material
- ABS
- Mounting
- Wall-mount
- Hysteresis
- 1.5 %
- Connections
- Screw terminal (AWG 24-18)
- Output type
- Analog
- Display size
- 2 inch
- Display type
- LCD
- Output voltage
- 0-10 V (fan speed), 0-5 V / 0-10 V (configurable analog output)
- Number of outputs
- 2 (1 fan, 1 configurable)
- Rated supply voltage
- 24 V AC, 20-30 V DC
- Operating temperature
- 0-50 °C
- Dimensions (H x W x D)
- 85 mm x 115 mm x 24 mm
- Humidity setting range
- 0-100 %
- Manufacturer part number
- SLASLX2
- Temperature setting range
- 10-35 °C
