METSEPM5110

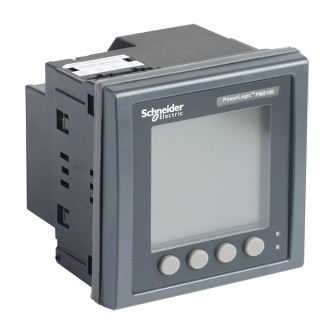

Schneider Electric METSEPM5110 PowerLogic PM5110 Power Meter. This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to 15th Harmonic. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol is Modbus RTU and ASCII 2 wires with RS485 port support. The meter also has one digital pulse output and 33 configurable alarms. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 13.4 onces (380 g).
Details
- Brand: Schneider Electric
- Part number: METSEPM5110
- Series: PowerLogic PM5000
- Category: Power Meter
Related Schneider Electric parts
- PM5100 Power Meter, without communication, up to 15th H, 1DO
- PowerLogic PM5310 Power Meter
- PowerLogic PM5320 Power Meter
- PowerLogic PM5330 Power Meter, Modbus, 31st Harmonic
- PowerLogic PM5340 Power Meter
- PowerLogic PM5560 Power Meter
- Schneider Electric A9MEM3255 — iEM3255 energy meter - CT - Modbus - 1 digital I - 1 digital O - multi-tariff
- EasyLogic PM2120 Power & Energy Meter with THD and RS485
- PowerLogic ION7400 Power Quality Meter, Standard, integrated display
- EasyLogic PM2130 Power & Energy Meter
- PowerLogic PM3000 PM3200 Power Meter
- PM3255 power meter - 2 digital I - 2 digital O - RS485
Request a quote for METSEPM5110
Specifications
- Depth
- 72 mm
- Width
- 96 mm
- Height
- 96 mm
- Net weight
- 380 g
- Display type
- Backlit LCD
- Sampling rate
- 64 samples/cycle
- Accuracy class
- Class 0.5S active energy IEC 62053-22
- Supply voltage
- 100...415 V AC, 125...250 V DC
- Network frequency
- 50 Hz, 60 Hz
- Number of outputs
- 1 digital
- Communication port
- RS485
- Display resolution
- 128 x 128 pixels
- Line Rated Current
- 1 A, 5 A
- Operating temperature
- -25…70 °C
- Communication protocol
- Modbus RTU and ASCII
- Power quality analysis
- up to the 15th harmonic
- Manufacturer part number
- METSEPM5110
- Maximum power consumption
- 10 VA at 415 V
- Measurement current range
- 10…9000 mA
- Frequency measurement range
- 45…65 Hz
- Body IP degree of protection
- IP30
- Front IP degree of protection
- IP52
- Measurement voltage range (phase to phase)
- 35…690 V AC
- Measurement voltage range (phase to neutral)
- 20…400 V AC
