RXM2AB2BD

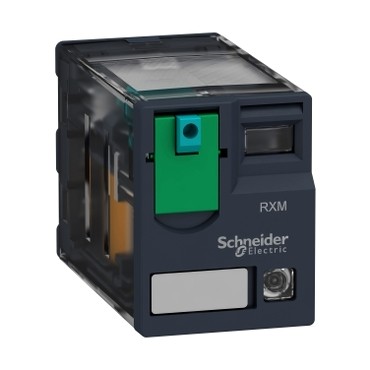

Schneider Electric RXM2AB2BD Zelio Relay miniature plug-in relay 2 C/O 12 A 24 V DC with LED. The Schneider Electric RXM2AB2BD is a Zelio miniature plug-in interface relay with 2 C/O contacts, a 24 V DC coil, status LED and lockable test button. The RXM2AB2BD is rated 12 A conventional enclosed thermal current with 10 A continuous output current, switching 12 A at 250 V AC or 12 A at 28 V DC on the NO contacts, with a maximum switching capacity of 3000 VA/336 W and 4 kV impulse withstand. Coil resistance is 650 Ohm at 20 degrees C with 0.9 W average consumption, operating time is 20 ms, operating voltage limits are 19.2...26.4 V DC, and durability is 100,000 electrical cycles and 10,000,000 mechanical cycles. It plugs into RXZ sockets such as RXZE2M114M for DIN rail mounting. Panel builders across Egypt and the GCC use it to interface PLC outputs with contactors and solenoids in water treatment, cement, food and beverage and oil and gas installations.
Details
- Brand: Schneider Electric
- Part number: RXM2AB2BD
- Series: Zelio Relay RXM
- Category: Control Relay
Related Schneider Electric parts
- Schneider Electric RM17TG00 — 3-Phase Control Relay 5A 1CO Screw Terminals 208-480V AC
- Schneider Electric RM17TG20 — Harmony Control Relay 3-Phase Monitor 208-480V AC 5A 2 C/O
- RM22TA31 3-phase control relay 8A 2 C/O 200-240V AC
- Schneider Electric RM22TG20 — Harmony Modular 3-phase control relay 8A 2 C/O 183-528V AC
- Schneider Electric RM22TU23 — 3-phase undervoltage detection control relay 8A 2 C/O 380-480V AC
- Schneider Electric RM35TM50MW — 3-phase Motor Temperature & Phase Monitoring Relay
- Zelio Time RE17RMEMU multifunction time delay relay 8 functions 24...240 V AC/DC 1 C/O
- Modicon M221 TM221CE16R logic controller 16 I/O, 9 DI, 7 relay DO, Ethernet
- Modicon M221 TM221CE24R logic controller 24 I/O, 14 DI, 10 relay DO, Ethernet
- Modicon M221 TM221CE40R logic controller 40 I/O, 24 DI, 16 relay DO, Ethernet
- Modicon M241 TM241CE40R logic controller 40 I/O, relay and transistor outputs, Ethernet
- Modicon TM3 TM3DI16 discrete input module 16 inputs 24 V DC screw terminal
Specifications
- status LED
- With
- Control type
- Lockable test button
- Operating time
- 20 ms
- Product weight
- 0.037 kg
- Range of product
- Harmony Electromechanical Relays, RXM series
- Average resistance
- 650 Ohm at 20 °C +/- 10 %
- Electrical durability
- 100000 cycles for resistive load
- Mechanical durability
- 10000000 cycles
- IP degree of protection
- IP40 conforming to IEC 60529
- Average coil consumption
- 0.9 W
- Manufacturer part number
- RXM2AB2BD
- Continuous output current
- 10 A
- Product or component type
- Plug-in relay, miniature relay
- Maximum switching capacity
- 3000 VA/336 W
- [Uc] control circuit voltage
- 24 V DC
- Contacts type and composition
- 2 C/O
- [Ie] rated operational current
- 12 A at 250 V (AC) NO conforming to IEC, 12 A at 28 V (DC) NO conforming to IEC
- Rated operational voltage limits
- 19.2...26.4 V DC
- Ambient air temperature for operation
- -40...55 °C
- [Uimp] rated impulse withstand voltage
- 4 kV during 1.2/50 μs
- [Ithe] conventional enclosed thermal current
- 12 A
