EZC100N3100

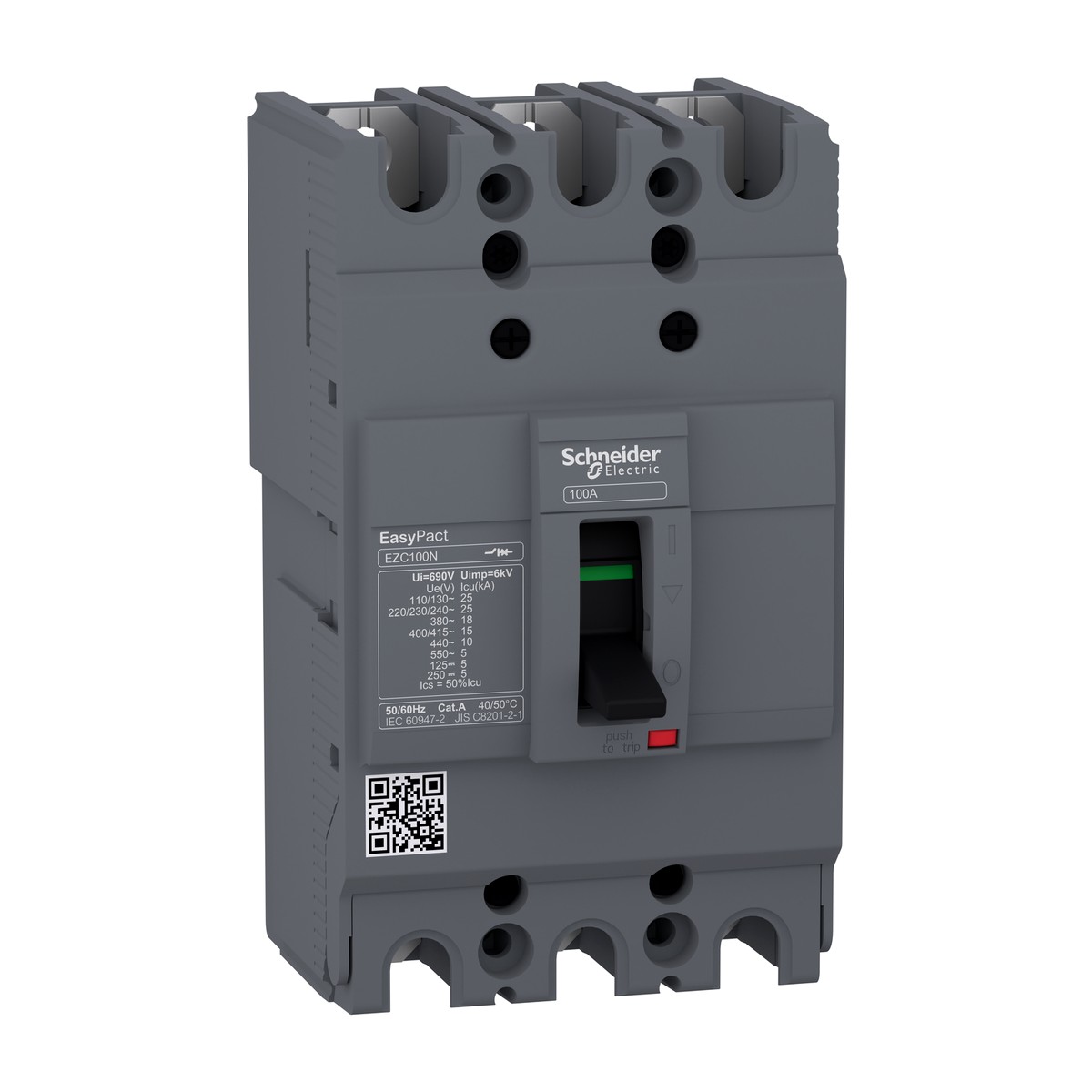

Schneider Electric EZC100N3100 Easypact EZC100N 3-pole 100 A moulded case circuit breaker 15 kA. The Schneider Electric EZC100N3100 is a genuine Easypact EZC100N moulded case circuit breaker, 3-pole with all three poles protected and a fixed TM-D thermal-magnetic trip unit rated 100 A at 50 °C on a 100 A frame. Built to EN/IEC 60947-2, EZC100N3100 offers an ultimate breaking capacity Icu of 15 kA at 400/415 V AC 50/60 Hz, Ics of 7.5 kA, 690 V AC rated insulation voltage and 6 kV impulse withstand, matching the 400/415 V 50 Hz networks used across Egypt and the GCC. It gives overload and short-circuit protection, is suitable for isolation, and mounts fixed on a backplate with IP20 protection in a 130 x 75 x 60 mm body. It is chosen for distribution board incomers close to the transformer, pump station boards in water treatment, motor feeders in cement plants and utility boards in oil and gas facilities where fault levels are higher.
Details
- Brand: Schneider Electric
- Part number: EZC100N3100
- Series: Easypact EZC100
- Category: Moulded Case Circuit Breaker
