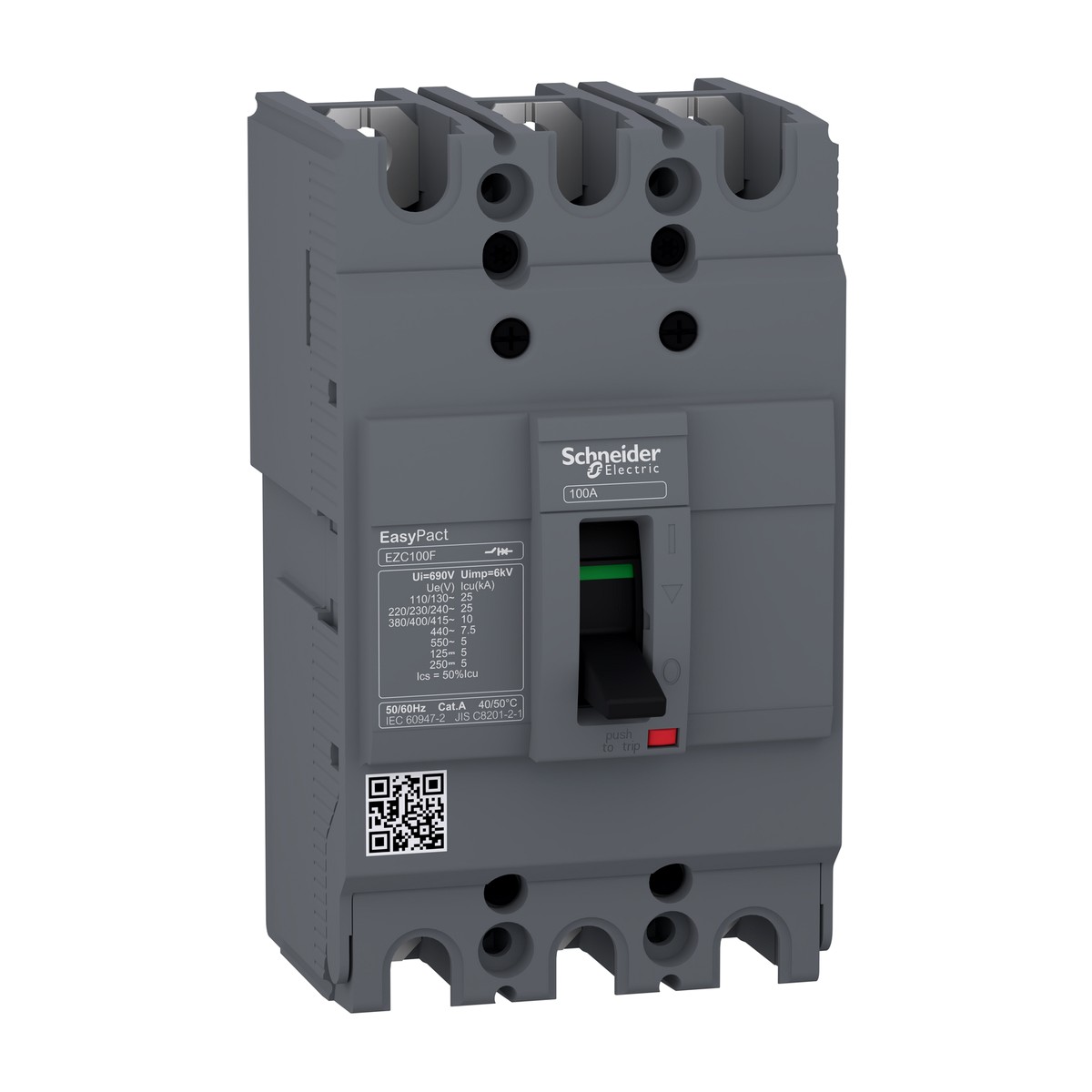

Schneider Electric EZC100F3100 Easypact EZC100F 3-pole 100 A moulded case circuit breaker 10 kA. The Schneider Electric EZC100F3100 is a genuine Easypact EZC100F moulded case circuit breaker, 3-pole with all three poles protected and a fixed TM-D thermal-magnetic trip unit rated 100 A at 50 °C on a 100 A frame. Built to EN/IEC 60947-2, EZC100F3100 offers an ultimate breaking capacity Icu of 10 kA at 400/415 V AC 50/60 Hz, Ics of 5 kA, 690 V AC rated insulation voltage and 6 kV impulse withstand, matching the 400/415 V 50 Hz networks used across Egypt and the GCC. It gives overload and short-circuit protection, is suitable for isolation, and mounts fixed on a backplate with IP20 protection in a 130 x 75 x 60 mm body. It is used as a distribution board incomer, for pump station and water treatment feeders, for motor and process circuits in cement and food and beverage plants, and for utility distribution in oil and gas facilities.
Details
- Brand: Schneider Electric
- Part number: EZC100F3100
- Series: Easypact EZC100
- Category: Moulded Case Circuit Breaker
Related Schneider Electric parts
- Easypact EZC100N EZC100N3100 3-pole 100 A moulded case circuit breaker 15 kA
- Easypact EZC100F EZC100F3040 3-pole 40 A moulded case circuit breaker 10 kA
- Easypact EZC100F EZC100F3050 3-pole 50 A moulded case circuit breaker 10 kA
- Easypact EZC100F EZC100F3060 3-pole 60 A moulded case circuit breaker 10 kA
- Easypact EZC100F EZC100F3080 3-pole 80 A moulded case circuit breaker 10 kA
- Easypact EZC250N EZC250N3125 3-pole 125 A moulded case circuit breaker 25 kA
- Easypact EZC250N EZC250N3200 3-pole 200 A moulded case circuit breaker 25 kA
- Easypact EZC250N EZC250N3250 3-pole 250 A moulded case circuit breaker 25 kA
- Easypact EZC400N EZC400N3400N 3-pole 400 A moulded case circuit breaker 36 kA
- Easypact EZC630N EZC630N3600N 3-pole 600 A moulded case circuit breaker 36 kA
- Schneider Electric EZC100F3015 — EasyPact EZC100F circuit breaker 15A 3P
- Schneider Electric EZC100H2020 — EasyPact EZC100H TMD Circuit Breaker, 20A, 2 Poles
Request a quote for EZC100F3100
Specifications
- Poles
- 3P, 3 protected poles (3d)
- Standards
- EN/IEC 60947-1, EN/IEC 60947-2
- Trip unit
- TM-D, thermal-magnetic
- Mounting mode
- Fixed, backplate; front upside and downside connection
- Protection type
- Overload protection, short-circuit protection
- Connection pitch
- 25 mm
- Network frequency
- 50/60 Hz
- Utilisation category
- Category A
- Electrical durability
- Category A: 1500 cycles at 415 V AC 50/60 Hz conforming to IEC 60947-2
- Mechanical durability
- 8500 cycles
- Trip unit rating (Ir)
- 100 A at 50 °C
- Dimensions (H x W x D)
- 130 x 75 x 60 mm
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- EZC100F3100
- Suitability for isolation
- Yes conforming to IEC 60947-2
- [In] rated current (frame)
- 100 A at 40 °C
- [Ui] rated insulation voltage
- 690 V AC 50/60 Hz conforming to IEC 60947-2
- [Ue] rated operational voltage
- 550 V AC 50/60 Hz conforming to IEC 60947-2; 250 V DC conforming to IEC 60947-2
- Ambient air temperature for operation
- -25…70 °C
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to IEC 60947-2
- Breaking capacity (Icu) at 400/415 V AC 50/60 Hz
- 10 kA conforming to IEC 60947-2
- [Ics] rated service breaking capacity at 400/415 V AC 50/60 Hz
- 5 kA conforming to IEC 60947-2
