EZC250N3250

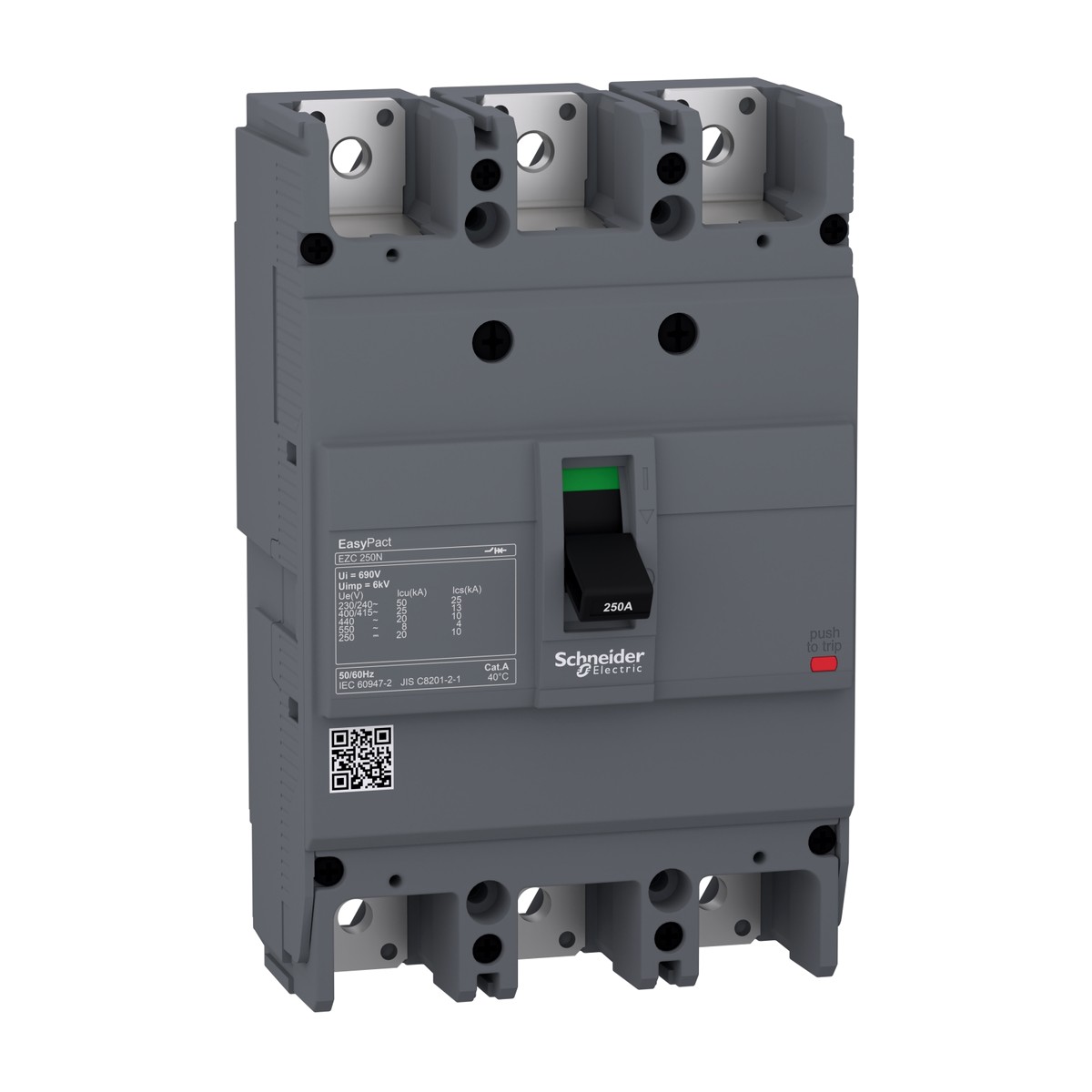

Schneider Electric EZC250N3250 Easypact EZC250N 3-pole 250 A moulded case circuit breaker 25 kA. The Schneider Electric EZC250N3250 is a genuine Easypact EZC250N moulded case circuit breaker, 3-pole with all three poles protected and a fixed TM-D thermal-magnetic trip unit rated 250 A at 50 °C on a 250 A frame. Built to EN/IEC 60947-2, EZC250N3250 offers an ultimate breaking capacity Icu of 25 kA at 400/415 V AC 50/60 Hz, Ics of 12.5 kA, 690 V AC rated insulation voltage and 6 kV impulse withstand, matching the 400/415 V 50 Hz networks used across Egypt and the GCC. It gives overload and short-circuit protection, is suitable for isolation, and mounts fixed on a backplate with IP20 protection in a 165 x 105 x 60 mm body. It serves as a main switchboard incomer, a feeder to motor control centres in water treatment and cement plants, and a distribution feeder in food and beverage and oil and gas facilities.
Details
- Brand: Schneider Electric
- Part number: EZC250N3250
- Series: Easypact EZC250
- Category: Moulded Case Circuit Breaker
Related Schneider Electric parts
- Easypact EZC250N EZC250N3125 3-pole 125 A moulded case circuit breaker 25 kA
- Easypact EZC250N EZC250N3200 3-pole 200 A moulded case circuit breaker 25 kA
- Easypact EZC400N EZC400N3400N 3-pole 400 A moulded case circuit breaker 36 kA
- Easypact EZC630N EZC630N3600N 3-pole 600 A moulded case circuit breaker 36 kA
- Schneider Electric EZC100F3015 — EasyPact EZC100F circuit breaker 15A 3P
- Schneider Electric EZC100H2020 — EasyPact EZC100H TMD Circuit Breaker, 20A, 2 Poles
- Schneider Electric EZC100H3020 — EasyPact EZC100H circuit breaker, 20A, 3 poles, TMD
- Schneider Electric EZC100H3040 — EasyPact EZC100H Moulded Case Circuit Breaker, 3-Pole, 40A
- Schneider Electric EZC100H3063 — EasyPact EZC100H circuit breaker TMD 63A 3 poles 3d
- Schneider Electric EZC100H4020 — EasyPact EZC100H circuit breaker 20A 4P 3D TMD
- Schneider Electric EZC100H4063 — EasyPact EZC100H circuit breaker, 63A, 4P 3t
- Schneider Electric EZC100H4080 — EasyPact EZC100H Circuit Breaker 80A 4 Poles
Request a quote for EZC250N3250
Specifications
- Poles
- 3P, 3 protected poles (3d)
- Standards
- EN/IEC 60947-1, EN/IEC 60947-2
- Trip unit
- TM-D, thermal-magnetic
- Mounting mode
- Fixed, backplate; front upside and downside connection
- Protection type
- Overload protection, short-circuit protection
- Connection pitch
- 35 mm
- Network frequency
- 50/60 Hz
- Utilisation category
- Category A
- Electrical durability
- Category A: 5000 cycles at 415 V AC 50/60 Hz conforming to IEC 60947-2
- Mechanical durability
- 10000 cycles
- Trip unit rating (Ir)
- 250 A at 50 °C
- Dimensions (H x W x D)
- 165 x 105 x 60 mm
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- EZC250N3250
- Suitability for isolation
- Yes conforming to IEC 60947-2
- [In] rated current (frame)
- 250 A at 40 °C
- [Ui] rated insulation voltage
- 690 V AC 50/60 Hz conforming to IEC 60947-2
- [Ue] rated operational voltage
- 550 V AC 50/60 Hz conforming to IEC 60947-2; 250 V DC conforming to IEC 60947-2
- Ambient air temperature for operation
- -25…70 °C
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to IEC 60947-2
- Breaking capacity (Icu) at 400/415 V AC 50/60 Hz
- 25 kA conforming to IEC 60947-2
- [Ics] rated service breaking capacity at 400/415 V AC 50/60 Hz
- 12.5 kA conforming to IEC 60947-2
