EZC400N3400N

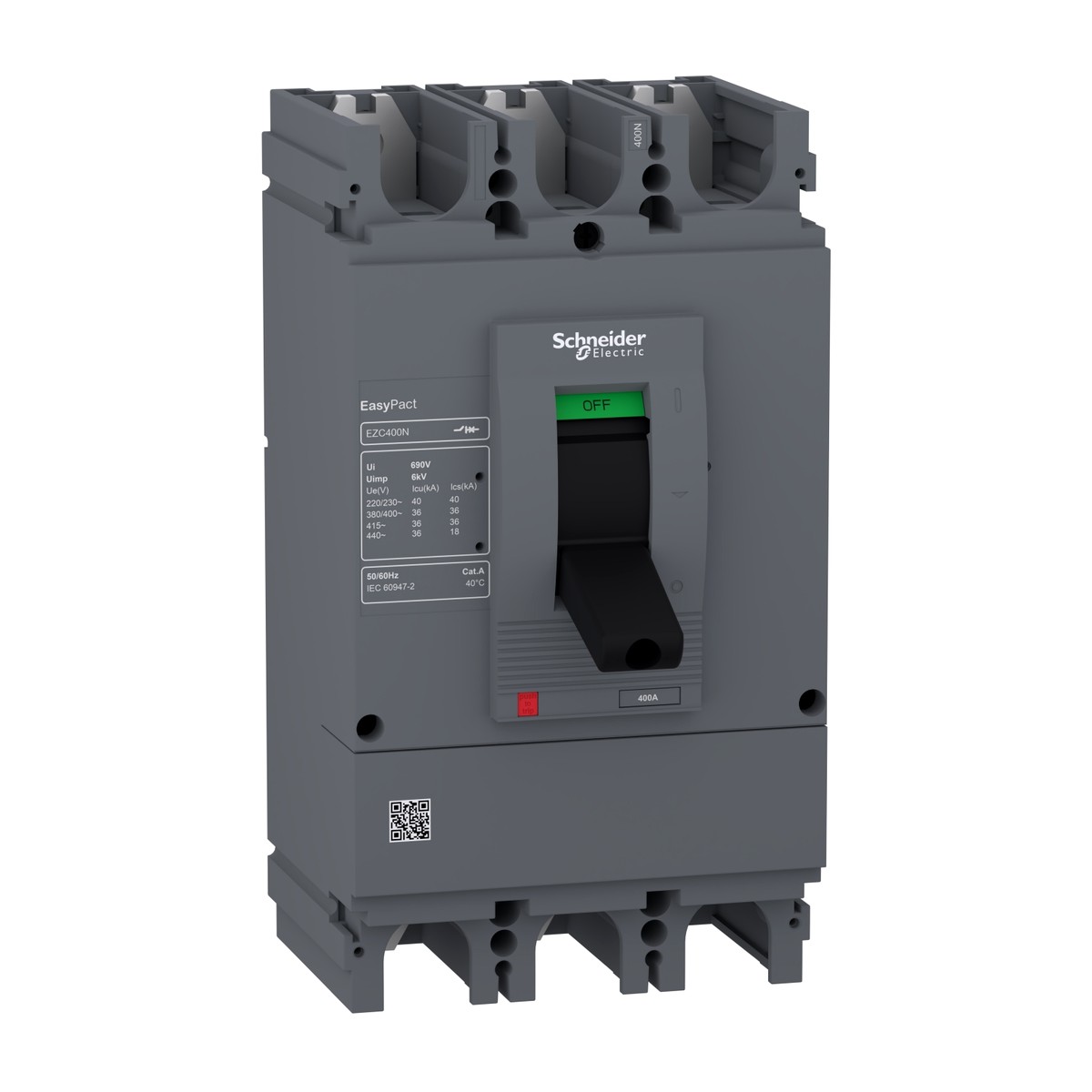

Schneider Electric EZC400N3400N Easypact EZC400N 3-pole 400 A moulded case circuit breaker 36 kA. The Schneider Electric EZC400N3400N is a genuine Easypact EZC400N moulded case circuit breaker, 3-pole with all three poles protected and a fixed TM-D thermal-magnetic trip unit rated 400 A at 50 °C on a 400 A frame. Built to EN/IEC 60947-2, EZC400N3400N offers an ultimate breaking capacity Icu of 36 kA at 400/415 V AC 50/60 Hz, Ics of 18 kA, 690 V AC rated insulation voltage and 6 kV impulse withstand, matching the 400/415 V 50 Hz networks used across Egypt and the GCC. It gives overload and short-circuit protection, is suitable for isolation, and mounts fixed on a backplate with IP20 protection in a 255 x 185 x 140 mm body. It is applied as a main low voltage switchboard incomer or tie, as a feeder to large motor control centres in water treatment and cement plants, and as a distribution feeder in food and beverage and oil and gas installations.
Details
- Brand: Schneider Electric
- Part number: EZC400N3400N
- Series: Easypact EZC400
- Category: Moulded Case Circuit Breaker
Related Schneider Electric parts
- Easypact EZC630N EZC630N3600N 3-pole 600 A moulded case circuit breaker 36 kA
- Schneider Electric EZC100F3015 — EasyPact EZC100F circuit breaker 15A 3P
- Schneider Electric EZC100H2020 — EasyPact EZC100H TMD Circuit Breaker, 20A, 2 Poles
- Schneider Electric EZC100H3020 — EasyPact EZC100H circuit breaker, 20A, 3 poles, TMD
- Schneider Electric EZC100H3040 — EasyPact EZC100H Moulded Case Circuit Breaker, 3-Pole, 40A
- Schneider Electric EZC100H3063 — EasyPact EZC100H circuit breaker TMD 63A 3 poles 3d
- Schneider Electric EZC100H4020 — EasyPact EZC100H circuit breaker 20A 4P 3D TMD
- Schneider Electric EZC100H4063 — EasyPact EZC100H circuit breaker, 63A, 4P 3t
- Schneider Electric EZC100H4080 — EasyPact EZC100H Circuit Breaker 80A 4 Poles
- Schneider Electric EZC100H4100 — EasyPact EZC100H moulded case circuit breaker 100A 4 poles 3t
- Schneider Electric EZC100N3015 — EasyPact EZC100N Thermal-Magnetic Circuit Breaker 3P 15A
- Schneider Electric EZC100N3025 — EasyPact EZC100N circuit breaker TMD 25A 3P
Request a quote for EZC400N3400N
Specifications
- Poles
- 3P, 3 protected poles (3d)
- Standards
- EN/IEC 60947-1, EN/IEC 60947-2
- Trip unit
- TM-D, thermal-magnetic
- Net weight
- 4.8 kg
- Mounting mode
- Fixed, backplate; front upside and downside connection
- Protection type
- Overload protection, short-circuit protection
- Connection pitch
- 45 mm
- Network frequency
- 50/60 Hz
- Utilisation category
- Category A
- Electrical durability
- Category A: 1000 cycles at 415 V AC 50/60 Hz conforming to IEC 60947-2
- Mechanical durability
- 10000 cycles
- Trip unit rating (Ir)
- 400 A at 50 °C
- Dimensions (H x W x D)
- 255 x 185 x 140 mm
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- EZC400N3400N
- Magnetic tripping current
- 5000 A
- Suitability for isolation
- Yes conforming to IEC 60947-2
- [In] rated current (frame)
- 400 A at 40 °C
- [Ui] rated insulation voltage
- 690 V AC 50/60 Hz conforming to IEC 60947-2
- [Ue] rated operational voltage
- 440 V AC 50/60 Hz conforming to IEC 60947-2; 250 V DC conforming to IEC 60947-2
- Ambient air temperature for operation
- -25…70 °C
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to IEC 60947-2
- Breaking capacity (Icu) at 400/415 V AC 50/60 Hz
- 36 kA conforming to IEC 60947-2
- [Ics] rated service breaking capacity at 400/415 V AC 50/60 Hz
- 18 kA conforming to IEC 60947-2
