EZC100H4100

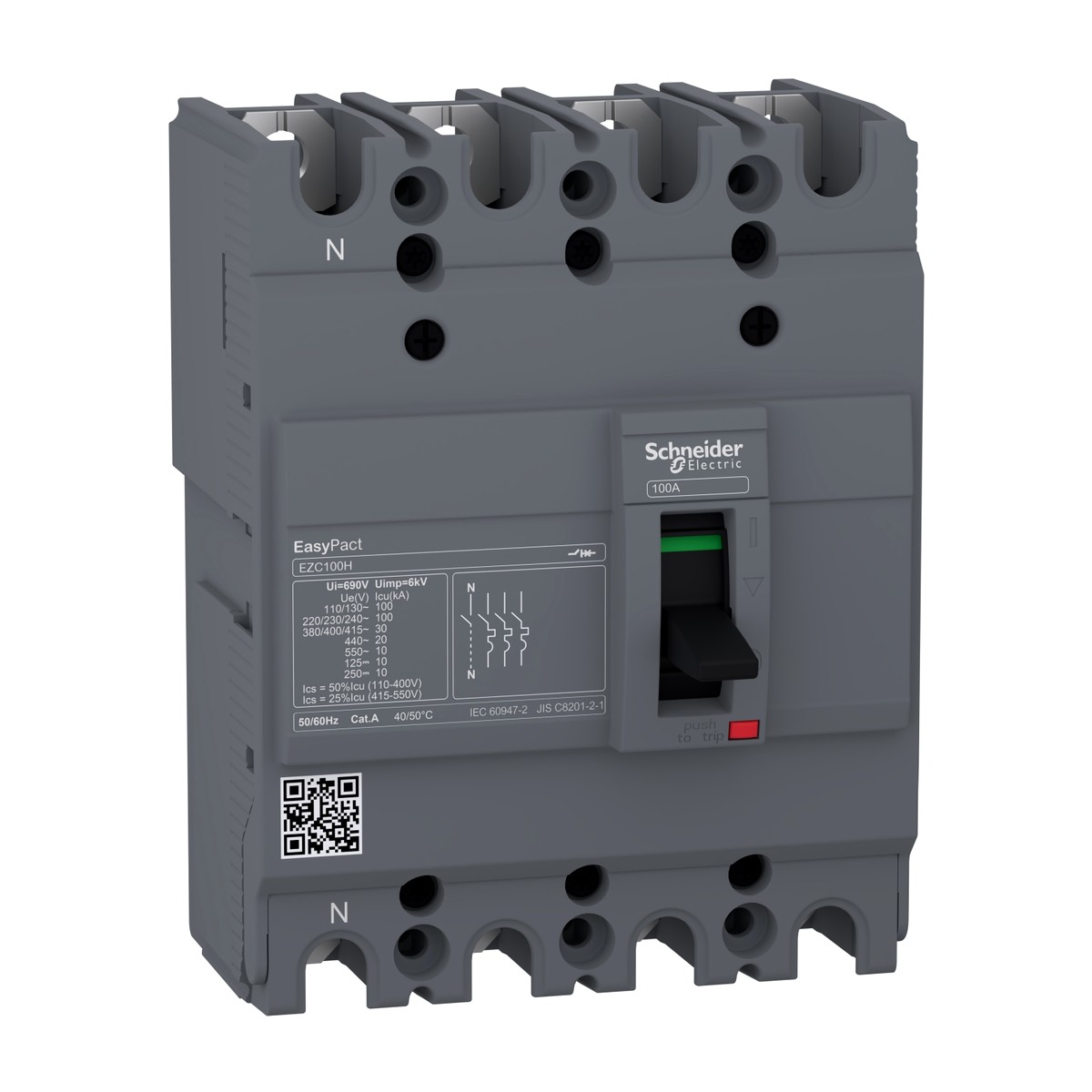

Schneider Electric EZC100H4100 EasyPact EZC100H moulded case circuit breaker 100A 4 poles 3t. The Schneider Electric EZC100H4100 is a robust EasyPact EZC100H series moulded case circuit breaker, specifically engineered for reliable distribution board protection in diverse industrial and commercial environments. This value-range 4-pole circuit breaker delivers a 100 A rated current at 40 °C and incorporates a thermal-magnetic trip unit to provide comprehensive overload and short-circuit protection. It supports both AC and DC networks, operating efficiently at 50/60 Hz with a rated operational voltage up to 550 V AC or 250 V DC. Notable breaking capacities for the Schneider Electric EZC100H4100 include 50 KA Icu at 220-240 V AC and 30 KA Icu at 380-415 V AC, making it highly compatible with typical power grids throughout Egypt and the Gulf region. Featuring an IP20 degree of protection and certified suitability for isolation, it guarantees operational safety and reliability. This EasyPact EZC100H circuit breaker is an ideal safeguarding solution for critical applications in sectors such as cement production, oil and gas, water treatment, food and beverage processing, textiles, and building services.
Details
- Brand: Schneider Electric
- Part number: EZC100H4100
- Series: EasyPact
- Category: Moulded Case Circuit Breaker
Related Schneider Electric parts
- Schneider Electric EZC100N3015 — EasyPact EZC100N Thermal-Magnetic Circuit Breaker 3P 15A
- Schneider Electric EZC100N3020 — EasyPact EZC100N Circuit Breaker, 20A, 3 Poles
- Schneider Electric EZC100N3025 — EasyPact EZC100N circuit breaker TMD 25A 3P
- Schneider Electric EZC100N3040 — EZC100N TMD Circuit Breaker 40A 3 Poles
- Schneider Electric EZC100N3060 — EasyPact EZC100N Circuit Breaker, 60A, 3 Poles
- Schneider Electric EZC100N3075 — Circuit Breaker, EasyPact EZC100N, 75A, 3 Poles
- Schneider Electric EZC100N3080 — EasyPact EZC100N circuit breaker, TMD, 80A, 3 poles
- Schneider Electric EZC100N4020 — Circuit breaker EasyPact EZC100N TMD 20A 4P 3d
- Schneider Electric EZC100N4025 — EasyPact EZC100N Circuit Breaker 25A 4P 3t
- Schneider Electric EZC100N4030 — EasyPact EZC100N Circuit Breaker 30A 4P
- Schneider Electric EZC100N4040 — Moulded Case Circuit Breaker 40A 4P 3D
- Schneider Electric EZC100N4060 — EasyPact EZC100N circuit breaker 60A 4P 3d
Request a quote for EZC100H4100
Specifications
- Depth
- 60 Mm
- Width
- 100 Mm
- Height
- 130 Mm
- Network type
- DC, AC
- Protection type
- Overload protection, Short-circuit protection
- Network frequency
- 50/60 Hz
- Poles description
- 4P
- [In] rated current
- 100 A at 40 °C
- Trip unit technology
- Thermal-magnetic
- Mechanical durability
- 13000 Cycles
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- EZC100H4100
- Suitability for isolation
- Yes conforming to IEC 60947-2
- Breaking capacity Icu (AC)
- 50 KA at 220...240 V AC 50/60 Hz, 30 KA at 380...400 V AC 50/60 Hz, 30 KA at 415 V AC 50/60 Hz, 20 KA at 440 V AC 50/60 Hz, 10 KA at 550 V AC 50/60 Hz
- Breaking capacity Icu (DC)
- 10 KA at 125 V DC 1P, 10 KA at 250 V DC 2P
- Protected poles description
- 3t
- [Ue] rated operational voltage
- 550 V AC 50/60 Hz, 250 V DC
- Ambient air temperature for operation
- -25…70 °C
- [Ics] rated service breaking capacity (AC)
- 25 KA at 220...240 V AC 50/60 Hz, 15 KA at 380...400 V AC 50/60 Hz, 7.5 KA at 415 V AC 50/60 Hz, 5 KA at 440 V AC 50/60 Hz, 2.5 KA at 550 V AC 50/60 Hz
- [Ics] rated service breaking capacity (DC)
- 5 KA at 125 V DC, 5 KA at 250 V DC
