BMXP342020

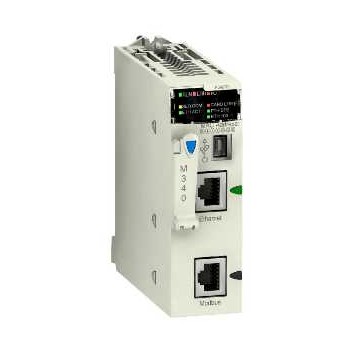

Schneider Electric BMXP342020 processor module M340 - max 1024 discrete + 256 analog I/O - Modbus - Ethernet. This performance processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It enables 4 racks maximum, 1024 I/O and its memory capacity is equal to 4096 KB. It has on its front panel a safety screw for locking the module in its slot, a display block comprising 8 LEDs, a mini B USB connector for a programming terminal, a slot equipped with its flash memory card. It also has a RJ45 connector for connection to the Ethernet Modbus/TCP network and an RJ45 connector for the Modbus serial link or character mode link (RS 232C/RS 485, 2-wire, non-isolated). This processor is supplied as standard with an SD (Secure Digital) type flash memory card intended for backing up the two memory areas on the processor module internal RAM, program, symbols and comments area, and constants area. The data is backed up automatically by duplication, when the PLC is turned off. Likewise, the restoration of the data is transparent for the user, on return of power. It weighs 0.205kg. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.
Details
- Brand: Schneider Electric
- Part number: BMXP342020
- Series: Modicon M340 automation platform
- Category: PLC / Automation Module
Related Schneider Electric parts
- Schneider Electric BMXXBP1200 — rack M340 -12 slots - panel or plate mounting
- BMXCPS3020 power supply module X80 - 24..48 V DC - 31.2 W
- Schneider Electric BMXAMI0810H — Modicon X80 Isolated Analog Input Module, 8 Inputs, High Speed, Severe Environment
- Schneider Electric ABL8RPS24050 — Regulated switch power supply, Modicon Power Supply
- Schneider Electric BMXDDI3232 — discrete input module, Modicon X80, 32 inputs, 12 or 24V DC positive or negative
- Schneider Electric ATV930D18N4 — Variable speed drive, Altivar Process ATV900 ATV930, 18.5 kW, 400/480 V, with braking unit, IP21
- Schneider Electric LV428941 — Extended Rotary Handle for Front Control, Compact INS40 to INS60, Black
- Schneider Electric RM22LG11MR — Level control relay RM22-L
- Schneider Electric SLASLX2 — SpaceLogic SLA Series Sensor, Room, Humidity, Temperature, Segmented LCD, Analog Outputs with Matte White Housing
- Schneider Electric C16F4 — ComPacT NSX160F Basic Frame Circuit Breaker 160A 4P without trip unit
- Schneider Electric LRD4367 — TeSys LRD thermal overload relays
- Schneider Electric METSEPM5110 — PowerLogic PM5110 Power Meter
Request a quote for BMXP342020
Specifications
- Weight
- 0.205 kg
- IP protection
- IP20
- USB Port Speed
- 12 Mbit/s
- Relative humidity
- 10...95 % without condensation
- Serial Link Speed
- 0.3...19.2 kbit/s
- Total internal RAM
- 4096 kB
- Ethernet Port Speed
- 10/100 Mbit/s
- Internal RAM (data)
- 256 kB
- Max number of racks
- 4
- Max number of slots
- 11
- Operating temperature
- 0...60 °C
- Internal RAM (program)
- 3584 kB
- Manufacturer part number
- BMXP342020
- Max analog I/O (multi-rack)
- 256
- Current consumption (24 V DC)
- 95 mA
- Max discrete I/O (multi-rack)
- 1024
