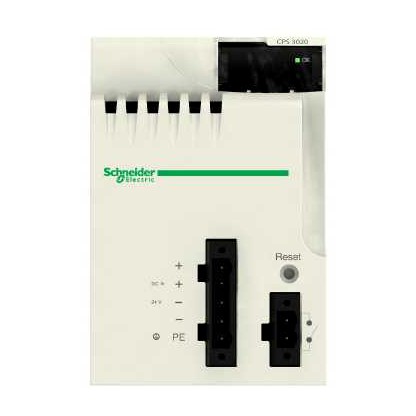

BMXCPS3020
Schneider Electric BMXCPS3020 power supply module X80 - 24..48 V DC - 31.2 W. This power module is part of the Modicon X80 modules. This module provides the power supply for each Modicon X80 I/O rack and the modules installed. It is supplied with 24V to 48V DC isolated. It has a case which provides IP 20 protection of the electronics.
Details
- Brand: Schneider Electric
- Part number: BMXCPS3020
- Series: Modicon M340 automation platform
- Category: PLC / Automation Module
Related Schneider Electric parts
- BMXP342020 processor module M340 - max 1024 discrete + 256 analog I/O - Modbus - Ethernet
- Schneider Electric BMXXBP1200 — rack M340 -12 slots - panel or plate mounting
- Schneider Electric BMXAMI0810H — Modicon X80 Isolated Analog Input Module, 8 Inputs, High Speed, Severe Environment
- Schneider Electric ABL8RPS24050 — Regulated switch power supply, Modicon Power Supply
- Schneider Electric BMXDDI3232 — discrete input module, Modicon X80, 32 inputs, 12 or 24V DC positive or negative
- Schneider Electric ATV930D18N4 — Variable speed drive, Altivar Process ATV900 ATV930, 18.5 kW, 400/480 V, with braking unit, IP21
- Schneider Electric LV428941 — Extended Rotary Handle for Front Control, Compact INS40 to INS60, Black
- Schneider Electric RM22LG11MR — Level control relay RM22-L
- Schneider Electric SLASLX2 — SpaceLogic SLA Series Sensor, Room, Humidity, Temperature, Segmented LCD, Analog Outputs with Matte White Housing
- Schneider Electric C16F4 — ComPacT NSX160F Basic Frame Circuit Breaker 160A 4P without trip unit
- Schneider Electric LRD4367 — TeSys LRD thermal overload relays
- Schneider Electric METSEPM5110 — PowerLogic PM5110 Power Meter
Request a quote for BMXCPS3020
Specifications
- Product weight
- 0.34 kg
- Primary voltage
- 24...48 V DC
- Protection type
- Short-circuit, Overvoltage, Overload
- Operating temperature
- 0...60 °C
- Primary voltage limit
- 18...62.4 V
- IP degree of protection
- IP20
- Manufacturer part number
- BMXCPS3020
- Total useful secondary power
- 31.2 W
- Power supply input current (24V)
- 1.65 A
- Power supply input current (48V)
- 0.83 A
- Current at secondary voltage (24V)
- 1.3 A
- Current at secondary voltage (3.3V)
- 4.5 A
