A9F78363

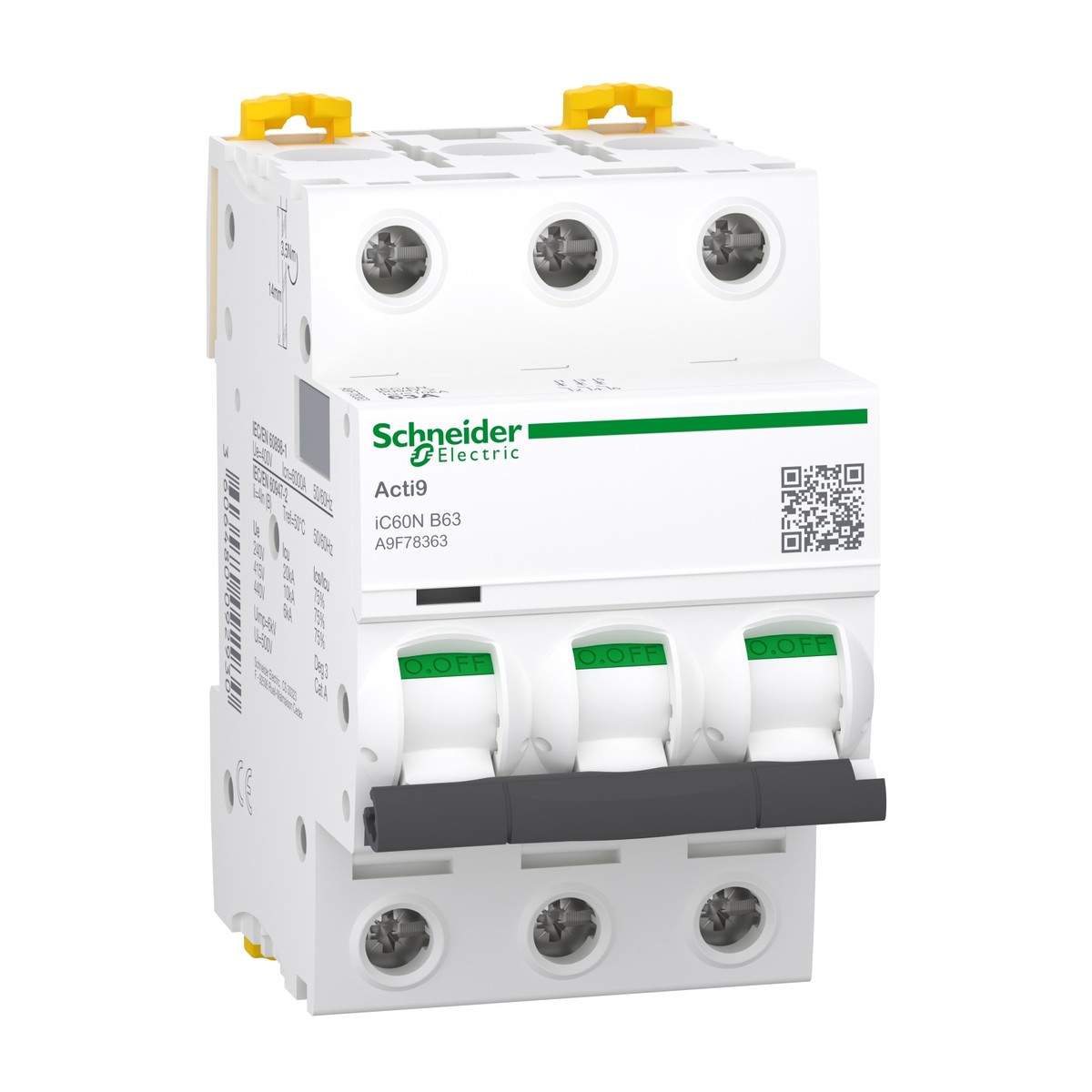

Schneider Electric A9F78363 Miniature Circuit Breaker, 3P, 63A, B Curve, 6000A/10kA. The Schneider Electric A9F78363 is a robust 3-pole Miniature Circuit Breaker from the Acti9 iC60 series, engineered for critical final distribution circuits. This high-performance MCB offers a rated current of 63A with a B tripping curve, ensuring reliable protection against overloads and short circuits. It boasts significant breaking capacities of 6000A (IEC/EN 60898-1) and 10kA (IEC/EN 60947-2), making it suitable for demanding electrical systems. Compatible with both AC and DC networks at 50/60 Hz, the A9F78363 supports a wide range of operational voltages, including 220-240V AC and 380-415V AC, crucial for the Egypt and Gulf regions. Its thermal-magnetic trip unit provides dependable protection, while its IP20 rating and 35mm DIN rail mounting simplify installation and integration. This MCB is vital for safeguarding electrical infrastructure in diverse industries such as water treatment, oil and gas facilities, food and beverage production, and large building services. With excellent electrical and mechanical durability, the Schneider Electric A9F78363 ensures long-term operational integrity.
Details
- Brand: Schneider Electric
- Part number: A9F78363
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F78416 — Acti9 iC60N 4P 16A B-curve MCB
- Schneider Electric A9F78425 — Miniature Circuit Breaker (MCB) Acti9 iC60N 4P 25A B-curve
- Schneider Electric A9F78432 — Miniature Circuit Breaker MCB Acti9 iC60N 4P 32A B-curve
- Schneider Electric A9F79106 — Miniature Circuit Breaker iC60N 1P 6A C-Curve
- Schneider Electric A9F79110 — Acti9 iC60N Miniature Circuit Breaker 1P 10A C-Curve
- Schneider Electric A9F79140 — Acti9 iC60N Miniature Circuit Breaker 1P 40A C Curve
- Schneider Electric A9F79206 — Miniature Circuit Breaker (MCB) 2P 6A C-Curve
- Schneider Electric A9F79210 — Acti9 iC60N Miniature Circuit Breaker, 2P 10A C-Curve
- Schneider Electric A9F79216 — Acti9 iC60N Miniature Circuit Breaker (MCB) 2P 16A C-Curve
- Schneider Electric A9F79232 — Miniature Circuit Breaker iC60N 2P 32A C-Curve
- Schneider Electric A9F79250 — Miniature Circuit Breaker Acti9 iC60N 2P 50A C-Curve
- Schneider Electric A9F79263 — Acti9 iC60N Miniature Circuit Breaker 2P 63A C-curve
Specifications
- Depth
- 78.5 mm
- Width
- 54 mm
- Height
- 85 mm
- Curve code
- B
- Net weight
- 0.375 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Breaking capacity
- 6000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
- Network frequency
- 50/60 Hz
- Poles description
- 3P
- Tightening torque
- 3.5 N.M top or bottom
- [In] rated current
- 63 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- IP degree of protection
- IP20
- Manufacturer part number
- A9F78363
- Number of protected poles
- 3
- Product or component type
- Miniature circuit-breaker
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 180 V DC
- Ambient air temperature for operation
- -35…70 °C
