A9F79206

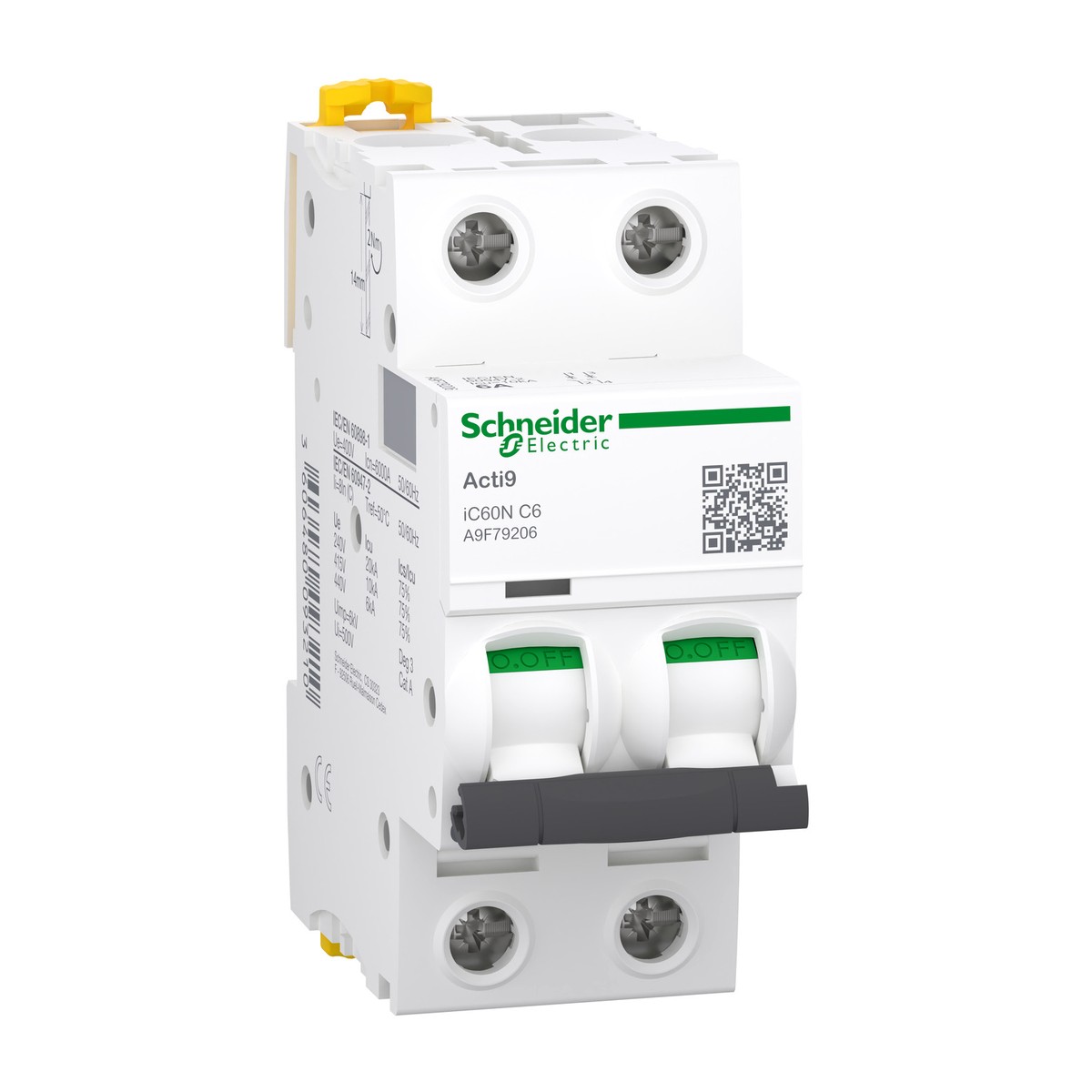

Schneider Electric A9F79206 Miniature Circuit Breaker (MCB) 2P 6A C-Curve. The Schneider Electric A9F79206 is a robust Acti9 iC60N Miniature Circuit Breaker (MCB) designed for reliable protection in final distribution circuits. This 2-pole, 6A, C-curve thermal-magnetic breaker ensures optimal safety for both AC and DC networks operating at 50/60 Hz. Key specifications include a breaking capacity of 10 KA Icu at 380-415 V AC and 6000 A Icn at 400 V AC, making it suitable for a wide range of operational voltages from 12V to 440V AC and up to 125V DC. Engineered for easy installation, the A9F79206 features clip-on mounting for 35 mm DIN rails, a compact design (85x36x78.5 mm), and an IP20 degree of protection. Its high electrical (10,000 cycles) and mechanical (20,000 cycles) durability guarantee long-term performance in demanding environments like cement plants, oil and gas facilities, water treatment, food and beverage production, textile industries, and building services across Egypt and the Gulf region.
Details
- Brand: Schneider Electric
- Part number: A9F79206
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F79210 — Acti9 iC60N Miniature Circuit Breaker, 2P 10A C-Curve
- Schneider Electric A9F79216 — Acti9 iC60N Miniature Circuit Breaker (MCB) 2P 16A C-Curve
- Schneider Electric A9F79232 — Miniature Circuit Breaker iC60N 2P 32A C-Curve
- Schneider Electric A9F79250 — Miniature Circuit Breaker Acti9 iC60N 2P 50A C-Curve
- Schneider Electric A9F79263 — Acti9 iC60N Miniature Circuit Breaker 2P 63A C-curve
- Schneider Electric A9F79310 — Miniature Circuit Breaker (MCB) iC60N 3P 10A C-curve
- Schneider Electric A9F79316 — Miniature Circuit Breaker 3P 16A C-Curve
- Schneider Electric A9F79320 — Miniature Circuit Breaker (MCB) 3P 20A C-Curve
- Schneider Electric A9F79332 — MCB, Acti9 iC60N, 3P, 32A, C curve
- Schneider Electric A9F79350 — Miniature Circuit Breaker (MCB), 3P, 50A, C-curve
- Schneider Electric A9F79420 — Acti9 iC60N Miniature Circuit Breaker 4P 20A C-Curve
- Schneider Electric A9F79440 — Miniature circuit breaker (MCB), Acti9 iC60N, 4P, 40A, C curve
Specifications
- Depth
- 78.5 Mm
- Width
- 36 Mm
- Height
- 85 Mm
- Curve code
- C
- Net weight
- 0.25 Kg
- Network type
- AC
- Mounting mode
- Clip-on
- Limitation class
- 3 conforming to EN/IEC 60898-1
- Mounting support
- 35 mm DIN rail
- Device short name
- IC60N
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- [In] rated current
- 6 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- Mechanical durability
- 20000 Cycles
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F79206
- Number of protected poles
- 2
- Product or component type
- Miniature circuit-breaker
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 10 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
