A9F79210

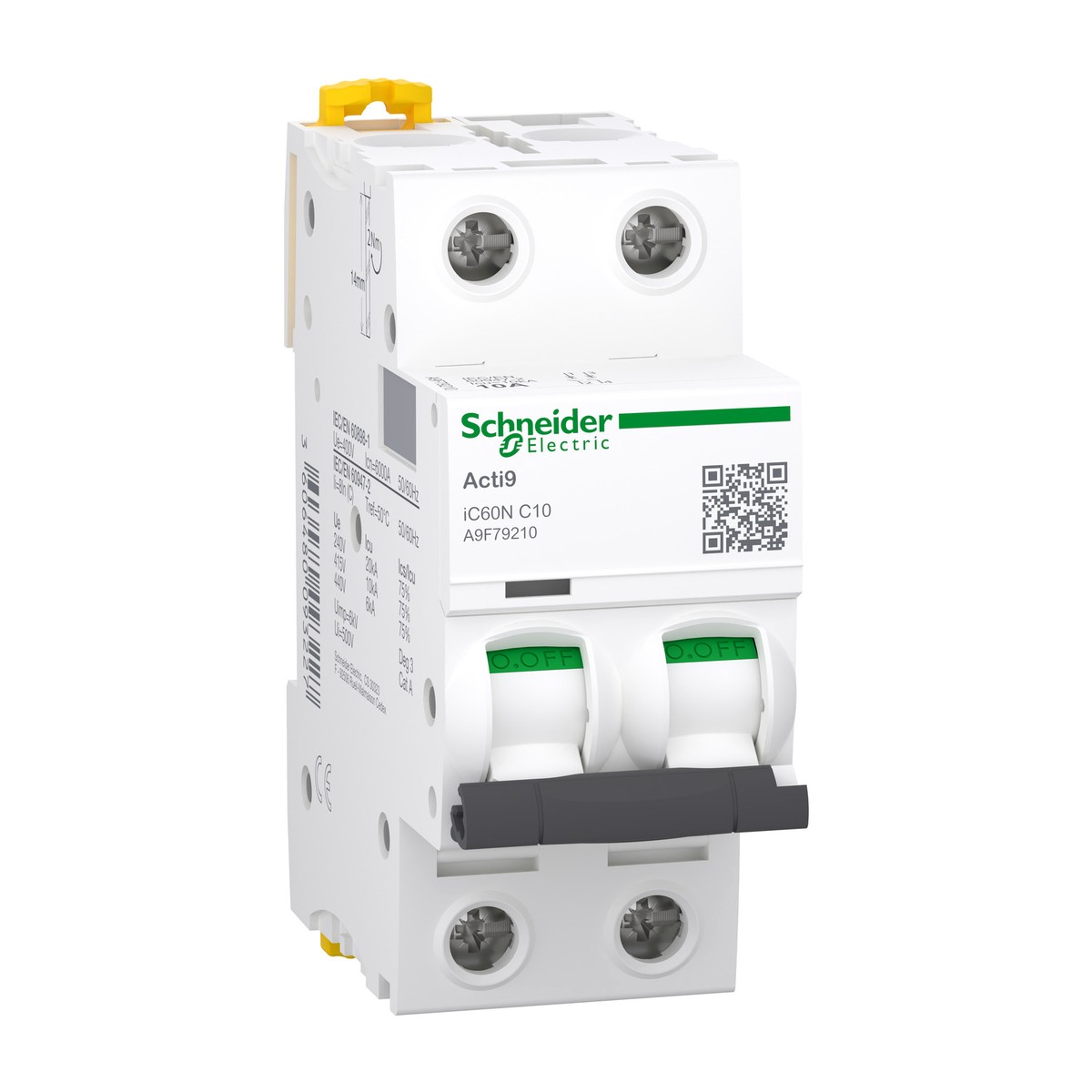

Schneider Electric A9F79210 Acti9 iC60N Miniature Circuit Breaker, 2P 10A C-Curve. The Schneider Electric A9F79210 Acti9 iC60N miniature circuit breaker (MCB) provides essential overcurrent and short-circuit protection for final distribution circuits. This 2-pole, 10A, C-curve MCB utilizes thermal-magnetic trip unit technology, ensuring reliable performance in both AC and DC networks. It boasts robust breaking capacities, including 10 KA Icu at 380-415 V AC 50/60 Hz and 6000 A Icn at 400 V AC 50/60 Hz, alongside a versatile operational voltage range up to 440 V AC and 125 V DC. Designed for easy installation on a 35 mm DIN rail, the A9F79210 offers suitability for isolation and operates efficiently across a wide temperature range of -35 to 70 °C. Its IP20 protection ensures durability in various environments. This reliable component is suitable for diverse applications within Egyptian and Gulf industries, including general building services, water treatment plants, oil and gas facilities, and food and beverage manufacturing.
Details
- Brand: Schneider Electric
- Part number: A9F79210
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F79216 — Acti9 iC60N Miniature Circuit Breaker (MCB) 2P 16A C-Curve
- Schneider Electric A9F79232 — Miniature Circuit Breaker iC60N 2P 32A C-Curve
- Schneider Electric A9F79250 — Miniature Circuit Breaker Acti9 iC60N 2P 50A C-Curve
- Schneider Electric A9F79263 — Acti9 iC60N Miniature Circuit Breaker 2P 63A C-curve
- Schneider Electric A9F79310 — Miniature Circuit Breaker (MCB) iC60N 3P 10A C-curve
- Schneider Electric A9F79316 — Miniature Circuit Breaker 3P 16A C-Curve
- Schneider Electric A9F79320 — Miniature Circuit Breaker (MCB) 3P 20A C-Curve
- Schneider Electric A9F79332 — MCB, Acti9 iC60N, 3P, 32A, C curve
- Schneider Electric A9F79350 — Miniature Circuit Breaker (MCB), 3P, 50A, C-curve
- Schneider Electric A9F79420 — Acti9 iC60N Miniature Circuit Breaker 4P 20A C-Curve
- Schneider Electric A9F79440 — Miniature circuit breaker (MCB), Acti9 iC60N, 4P, 40A, C curve
- Schneider Electric A9F83106 — Miniature Circuit Breaker (MCB), Acti9 iC60H, 1P, 6A, B curve
Specifications
- Depth
- 78.5 Mm
- Width
- 36 Mm
- Height
- 85 Mm
- Curve code
- C
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- [In] rated current
- 10 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal (top or bottom), for 1…25 mm² rigid or 1…16 mm² flexible copper cable(s)
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F79210
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 10 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
