A9F79216

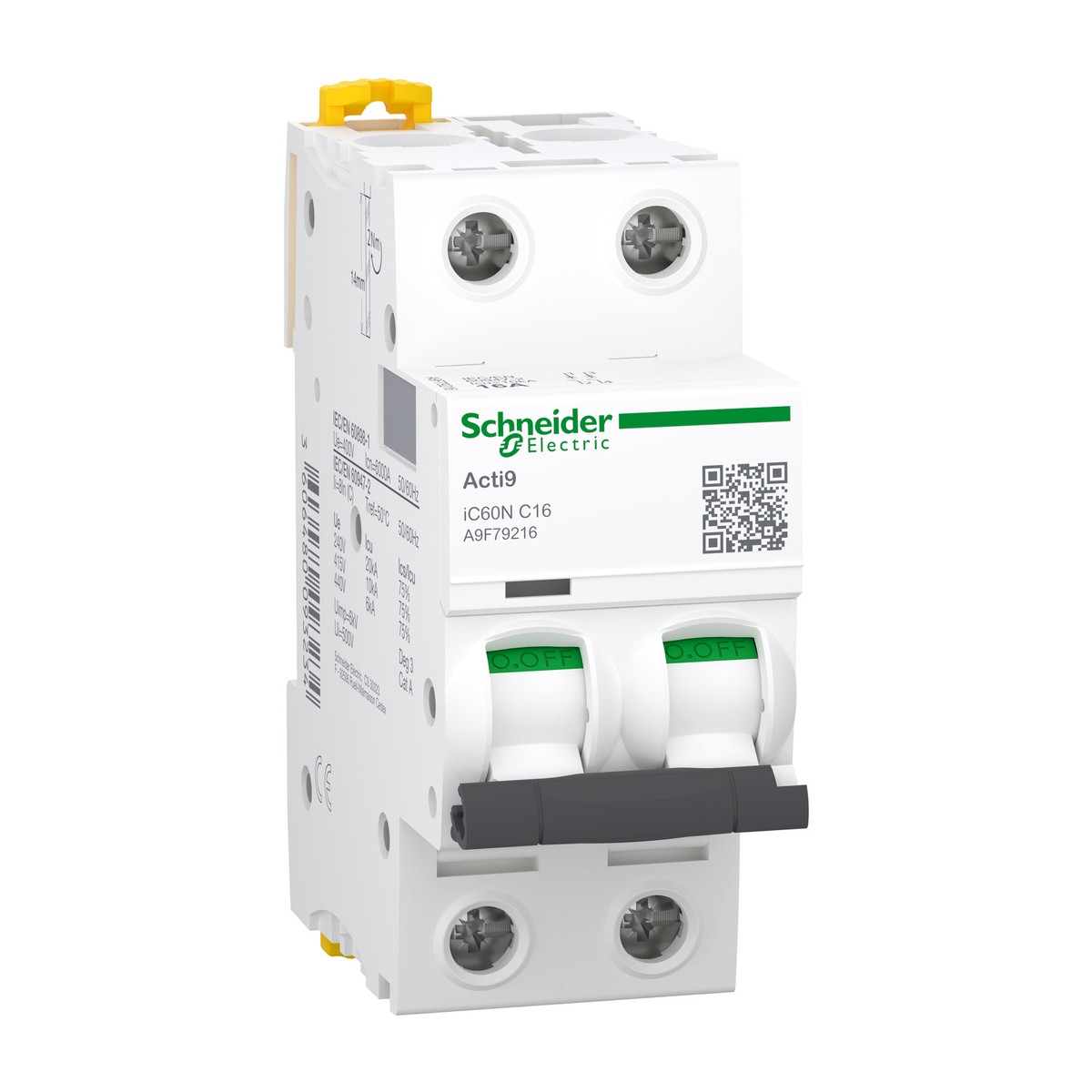

Schneider Electric A9F79216 Acti9 iC60N Miniature Circuit Breaker (MCB) 2P 16A C-Curve. The Schneider Electric A9F79216 is an Acti9 iC60N miniature circuit breaker (MCB) engineered for reliable protection of final distribution circuits. This 2-pole, 16A, C-curve thermal-magnetic MCB ensures robust overcurrent and short-circuit protection for both AC and DC networks. It boasts a breaking capacity of 6000A conforming to IEC/EN 60898-1 at 400V AC and 10kA conforming to IEC/EN 60947-2 at 380-415V AC, making it highly suitable for demanding industrial applications. Designed for ease of installation on a 35mm DIN rail, the A9F79216 offers broad operational voltage flexibility, including common regional standards like 220-240V AC and 380-415V AC, operating at 50/60 Hz. Its IP20 protection degree and wide operating temperature range (-35 to 70 °C) ensure durability in diverse environments. Applications extend across various sectors in Egypt and the Gulf, from critical power distribution in oil and gas and cement plants to general electrical protection in water treatment facilities, food and beverage processing, textiles, and commercial building services. This Schneider Electric MCB also features clear contact position and trip indicators, confirming its suitability for isolation. For robust and compliant circuit protection in your projects, request a quote for the Schneider Electric A9F79216 Acti9 iC60N MCB today.
Details
- Brand: Schneider Electric
- Part number: A9F79216
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F79232 — Miniature Circuit Breaker iC60N 2P 32A C-Curve
- Schneider Electric A9F79250 — Miniature Circuit Breaker Acti9 iC60N 2P 50A C-Curve
- Schneider Electric A9F79263 — Acti9 iC60N Miniature Circuit Breaker 2P 63A C-curve
- Schneider Electric A9F79310 — Miniature Circuit Breaker (MCB) iC60N 3P 10A C-curve
- Schneider Electric A9F79316 — Miniature Circuit Breaker 3P 16A C-Curve
- Schneider Electric A9F79320 — Miniature Circuit Breaker (MCB) 3P 20A C-Curve
- Schneider Electric A9F79332 — MCB, Acti9 iC60N, 3P, 32A, C curve
- Schneider Electric A9F79350 — Miniature Circuit Breaker (MCB), 3P, 50A, C-curve
- Schneider Electric A9F79420 — Acti9 iC60N Miniature Circuit Breaker 4P 20A C-Curve
- Schneider Electric A9F79440 — Miniature circuit breaker (MCB), Acti9 iC60N, 4P, 40A, C curve
- Schneider Electric A9F83106 — Miniature Circuit Breaker (MCB), Acti9 iC60H, 1P, 6A, B curve
- Schneider Electric A9F83120 — Miniature Circuit Breaker iC60H 1P 20A B-Curve
Specifications
- Curve code
- C
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- Tightening torque
- 2 N.M top or bottom
- [In] rated current
- 16 A
- Trip unit technology
- Thermal-magnetic
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F79216
- Suitability for isolation
- Yes conforming to EN/IEC 60898-1, Yes conforming to EN/IEC 60947-2
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 125 V DC
- Connections - terminals (rigid)
- Single terminal (top or bottom) , for 1 cable(s) , 1…25 mm², rigid, copper
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 10 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
