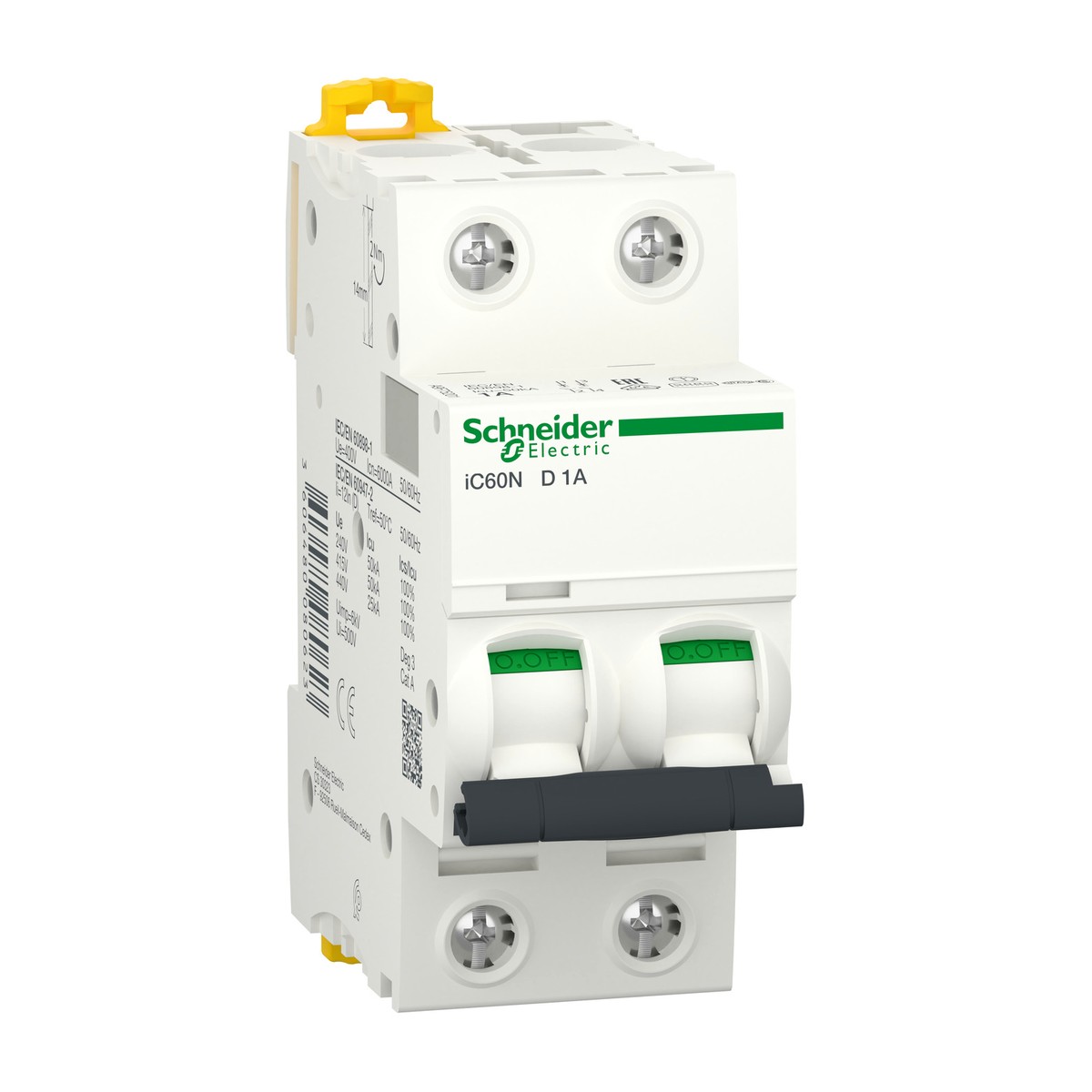

Schneider Electric A9F75201 Acti9 iC60N Miniature Circuit Breaker 2P 1A D-curve. The Schneider Electric A9F75201 is a robust Acti9 iC60N Miniature Circuit Breaker (MCB) designed for reliable protection in final distribution circuits. This 2-pole, 1A device features a D-curve thermal-magnetic trip unit, ensuring optimal protection against overcurrents and short circuits. It supports both AC and DC networks, operating seamlessly across a wide range of rated operational voltages, including 220-240 V AC and 380-415 V AC at 50/60 Hz, commonly found in Egypt and the Gulf region. Key breaking capacities include 6000 A Icn at 400 V AC (IEC/EN 60898-1) and 50 kA Icu at 380-415 V AC (IEC/EN 60947-2) for demanding industrial environments. Engineered for 35 mm DIN rail mounting, this MCB offers suitability for isolation and features an IP20 protection degree. Its durable design ensures long mechanical and electrical lifespans. Typical applications include critical infrastructure in cement plants, oil and gas facilities, water treatment plants, food and beverage processing, textile manufacturing, and commercial building services. For comprehensive circuit protection in challenging operational temperatures, the Schneider Electric A9F75201 is an excellent choice.
Details
- Brand: Schneider Electric
- Part number: A9F75201
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F75202 — Miniature Circuit Breaker Acti9 iC60N 2P 2A D Curve
- Schneider Electric A9F75203 — Miniature circuit breaker iC60N 2P 3A D curve
- Schneider Electric A9F75206 — Acti9 iC60N miniature circuit breaker 2P 6A D-curve
- Schneider Electric A9F75232 — Miniature Circuit Breaker Acti9 iC60N 2P 32A D-Curve
- Schneider Electric A9F75263 — Miniature circuit breaker (MCB), 2P, 63A, D curve, 6000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
- Schneider Electric A9F75303 — Miniature Circuit Breaker (MCB) 3P 3A D-Curve
- Schneider Electric A9F75310 — Acti9 iC60N Miniature Circuit Breaker, 3P, 10A, D curve
- Schneider Electric A9F75325 — Acti9 iC60N Miniature Circuit Breaker 3P 25A D-Curve
- Schneider Electric A9F75402 — Miniature Circuit Breaker, 4P, 2A, D-curve
- Schneider Electric A9F75404 — Miniature Circuit Breaker, 4P, 4A, D curve
- Schneider Electric A9F75406 — Miniature circuit breaker (MCB) Acti9 iC60N 4P 6A D-curve
- Schneider Electric A9F75416 — Acti9 iC60N Miniature Circuit Breaker (MCB) 4P 16A D-Curve
Specifications
- Depth
- 78.5 Mm
- Width
- 36 Mm
- Height
- 85 Mm
- Curve code
- D
- Net weight
- 0.25 Kg
- Network type
- DC, AC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- [In] rated current
- 1 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- Mechanical durability
- 20000 Cycles
- IP degree of protection
- IP20 conforming to IEC 60529, IP40 in modular enclosure (Insulation class II) conforming to IEC 60529
- Manufacturer part number
- A9F75201
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 50 KA Icu at 12...133 V AC 50/60 Hz, 50 KA Icu at 220...240 V AC 50/60 Hz, 50 KA Icu at 380...415 V AC 50/60 Hz, 25 KA Icu at 440 V AC 50/60 Hz, 10 KA Icu at <= 125 V DC
- Ambient air temperature for operation
- -35…70 °C
